Mains electricity
230 V/50 Hz
Standby power
0,3 W
External operating temperature
-20 to +35 °C
Dimensions
46x46x18 mm
Load type
Trailing edge
Leading edge
Protection
Over temperature software
Over temperature hardware
Overload software
Radio
2,4 GHz mesh
Bluetooth
®
Radio range*
Up to 10m indoors.
*The Plejd mesh technology extends the range by
allowing the units to communicate with each other.
RISK OF INJURY TO PERSON OR PROPERTY
All work on the appliance must be
carried out by an authorised electrician.
National laws and regulations
must be followed.
Compliant to standards
Plejd AB hereby declares that the product
complies with the norms and guidelines
pursuant to Directive 2014/53/EU.
EN 60669-1
EN 60669-2-1
EN 301489-1
EN 301489-17
EN 300328
Plejd AB
Krokslätts fabriker 27A
431 37 Mölndal
Sweden
Manufacturer | Plejd AB
Country of manufacture | Sweden

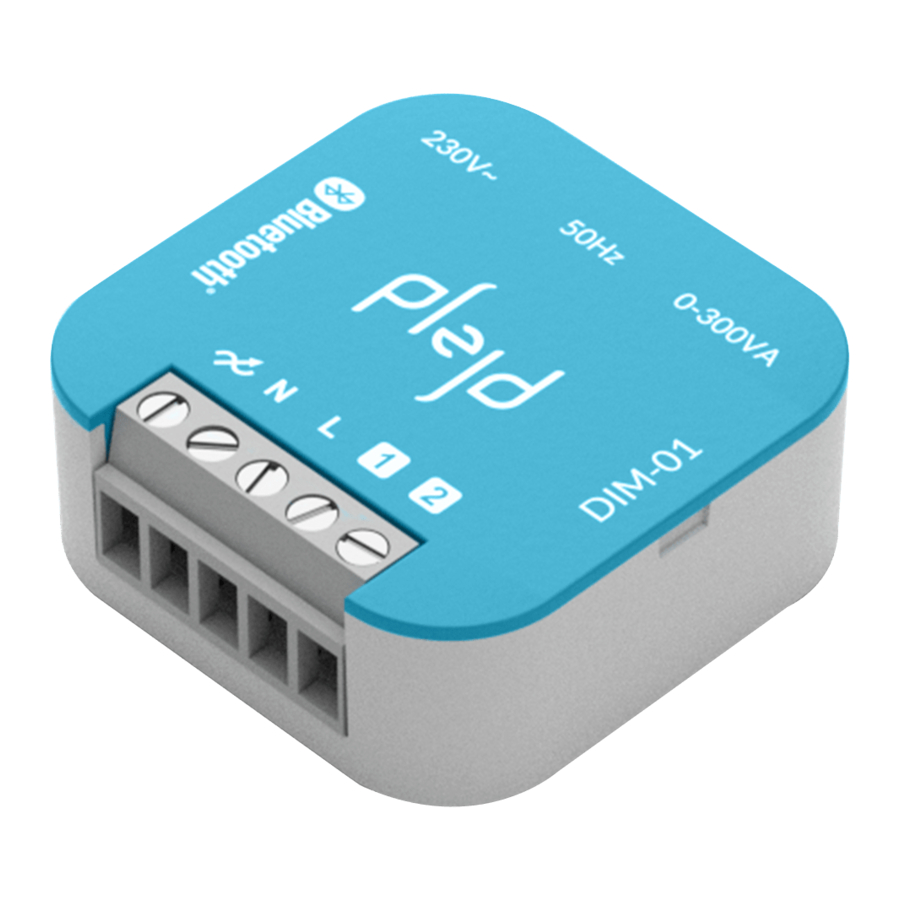

D I M - 0 1
INSTALLATION MANUAL
Further information can be found
in the Plejd app or at plejd.com
Advertisement
Related Manuals for Plejd DIM-01
Summary of Contents for Plejd DIM-01
- Page 1 ® Radio range* Plejd AB Up to 10m indoors. Krokslätts fabriker 27A *The Plejd mesh technology extends the range by 431 37 Mölndal allowing the units to communicate with each other. Sweden Further information can be found Manufacturer | Plejd AB in the Plejd app or at plejd.com...
- Page 2 Use the app to configure before use. Download the Plejd app via the App Store or Google Play. After supplying power to the unit based on one of the wiring diagrams, you can use the app to install the lighting.
