Mains electricity
230 V/50 Hz
Standby power
0.3 W
External operating temperature
-20 to +35 °C
Dimensions
46x46x18 mm
Load type
Trailing edge
Leading edge
Protection
Overtemperature software
Overtemperature hardware
Overload software
Radio
2.4 GHz mesh
Bluetooth
®
<10 dBm
Radio range
Approx. 10 m indoors
The Plejd mesh technology extends the range by
allowing the units to communicate with each other.
RISK OF INJURY TO PERSON OR PROPERTY
All work on the appliance must be
carried out by an authorized electrician.
National laws and regulations
must be followed.
Plejd AB
Krokslätts Fabriker 27A
431 37 Mölndal, Sweden
Compliant to standards
Hereby, Plejd AB declares that the radio
equipment type DIM-01 is in compliance
with Directive 2014/53/EU.
The full text of the EU declaration of
conformity is available at the following
internet address: plejd.com/compliance
EN

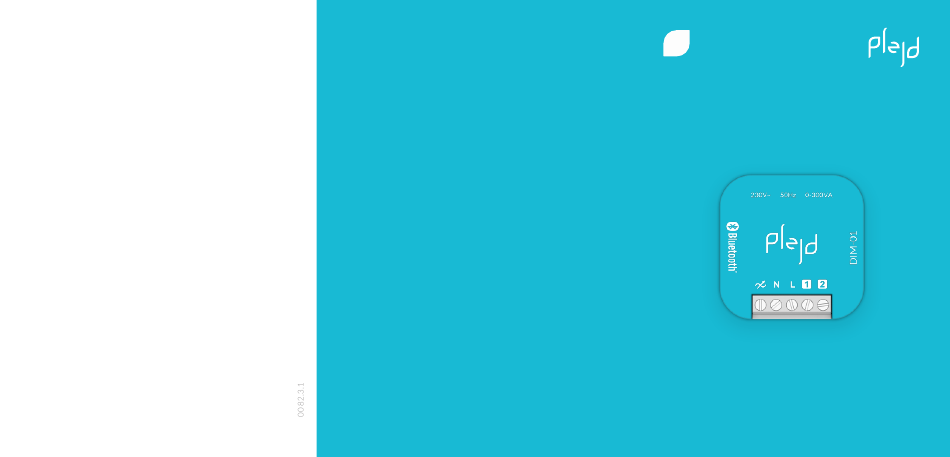

D I M - 0 1
INSTALLATION MANUAL
Further information can be found
in the Plejd app or at plejd.com
Advertisement
Related Manuals for Plejd DIM-01
Summary of Contents for Plejd DIM-01
- Page 1 Directive 2014/53/EU. Approx. 10 m indoors in the Plejd app or at plejd.com The Plejd mesh technology extends the range by The full text of the EU declaration of allowing the units to communicate with each other. conformity is available at the following...

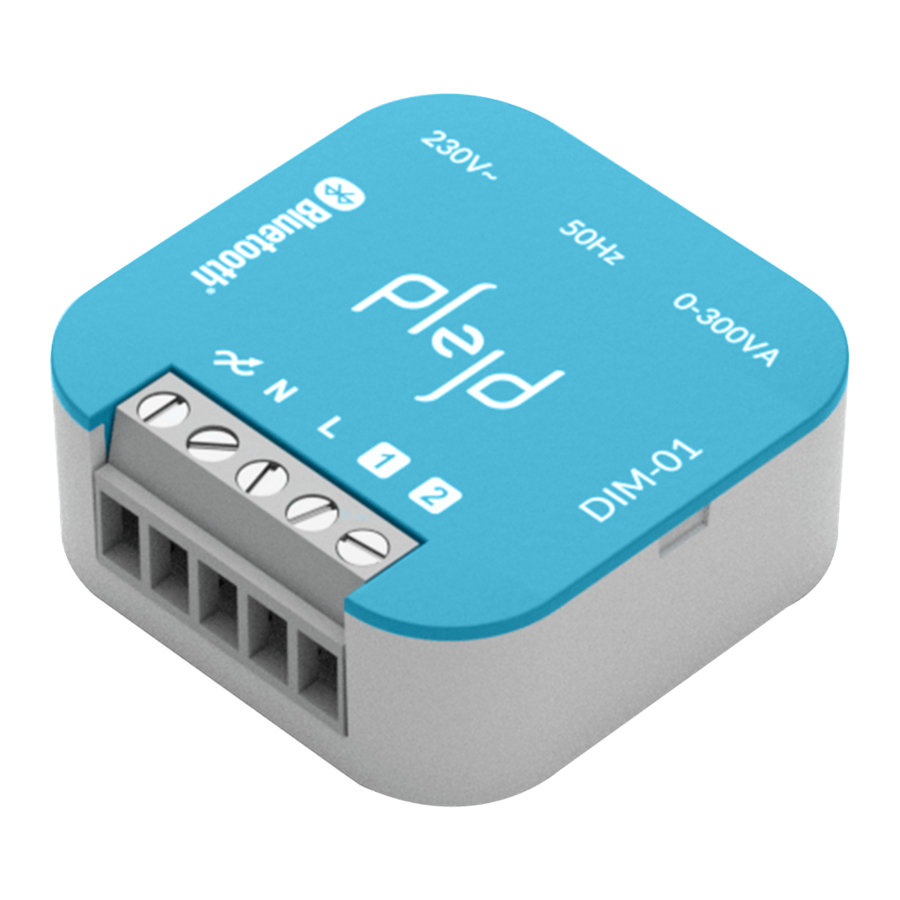

- Page 2 Hand over the Plejd system is reduced. DIM-01 is a universal dimmer that can withstand loads Hand over the Plejd system to your customer by of up to 300 VA and has adjustable minimum, maximum, writing the system code on the included sticker and starting levels.
