2.5 Main Unit Indicators

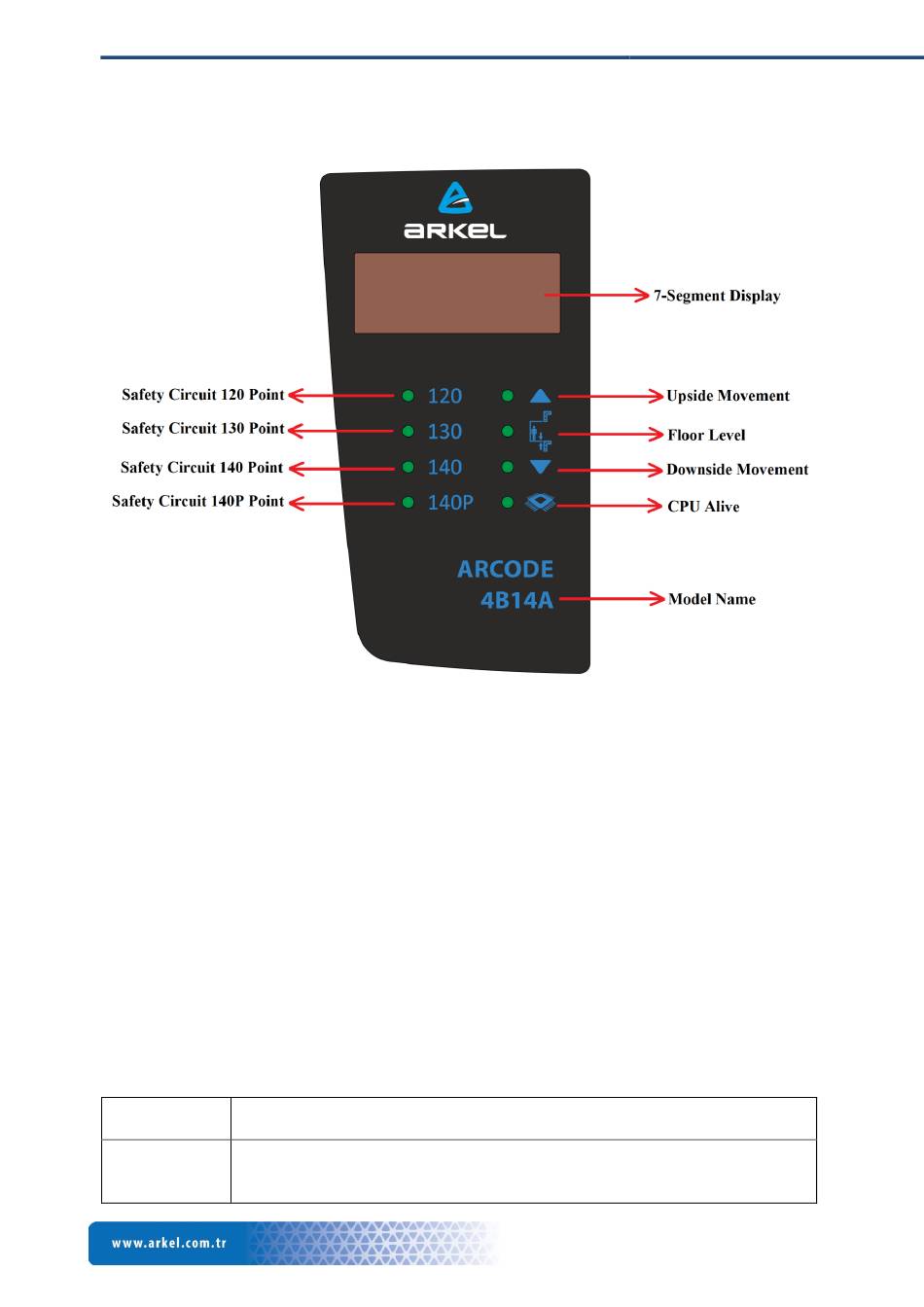

Main unit contains 4 digit 7-segment display and 8 Led indicators.
Some basic information can be obtained from 7-segment display. The information can be speed
value, error number, floor number or main state of the Arcode unit.
Additionally leds are used to indicate current state of the safety circuit nodes as well main
movements. Also CPU live indication is present.
Model name also indicated on the main unit label.

3 MECHANICAL INSTALLATION

3.1 Installation Environments

To obtain maximum life with optimum performance, install the Arcode in an environmental that
matching the specifications below.
Installation Indoors
Area
Ambient -10°C to +40°C (NEMA Type 1 enclosure)
Temperature -10°C to +50°C (IP00 enclosure)
Drive reliability improves in environments without wide temperature
