ARCODE HARDWARE MANUAL

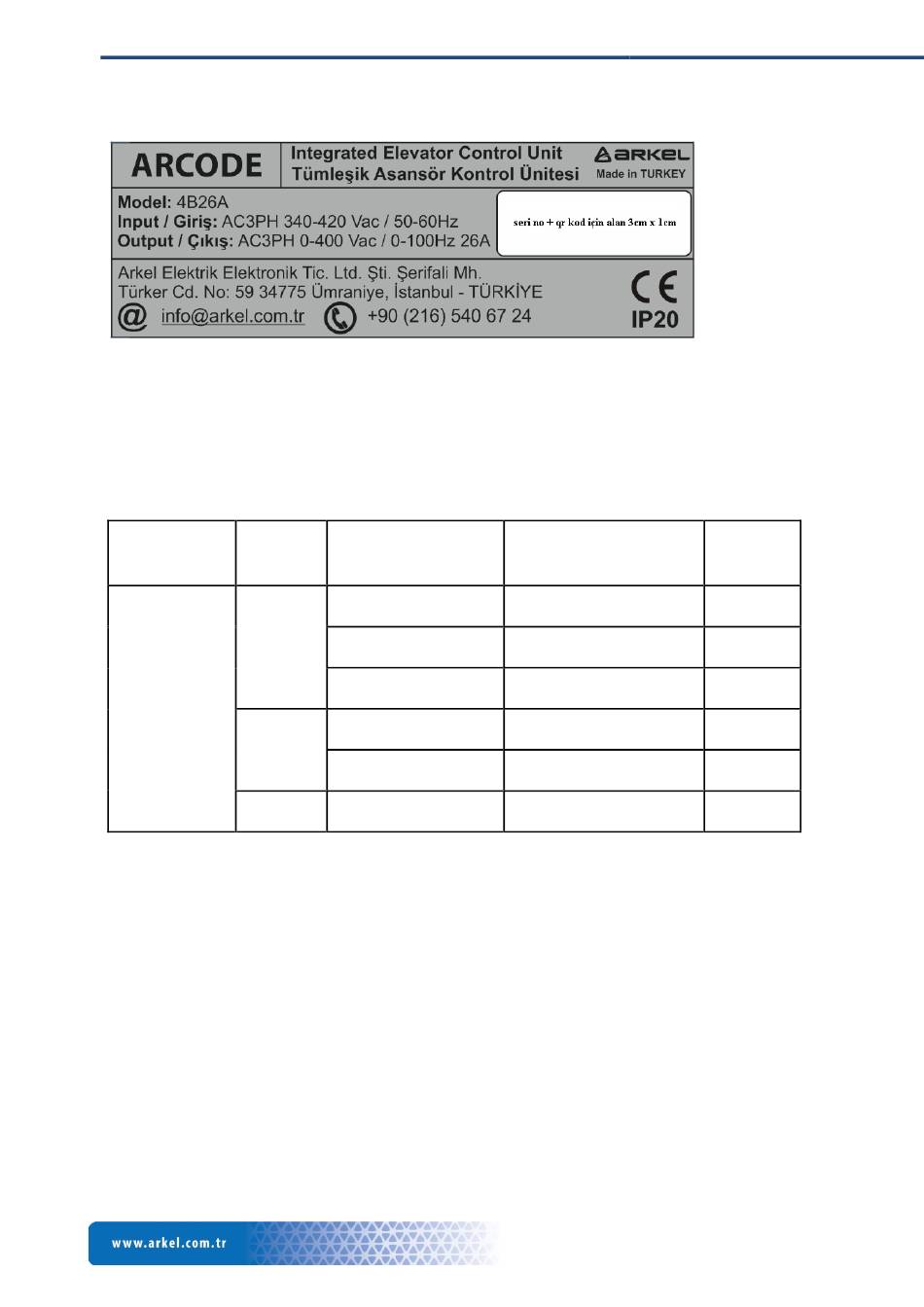

Model name of the given nameplate can be expressed as follows
4B26A : 4 : 340-420VAC nominal supply voltage
B : B size case
26A: Maximum 26Amp driver
Following table summarize power drive capabilities and casing varieties.
LINE VOLTAGE CASE SIZE
B Size
3 Ph.
340 - 420 VAC
C Size
D Size

2.4 Optional Boards

2.4.1 ENCA Board

Arcode absolute encoder reader which supports serial encoder protocols like Endat, Biss, and SSI as
well as SINCOS encoders.
This board should be installed if a synchronous machine will be driven.

2.4.2 ENCI Board

ENCI board is used to read incremental encoders with 3 differential signals. If the asynchronous
motor is used, this board should be installed.

2.4.3 Door Bridging Board

Door bridging board is used to bridge safety circuit and maintains safety conditions in any movement
of the lift while doors are open. Re-leveling, door pre-opening features require this board installed.
MOTOR POWER
KW(HP)
5.5KW (7.5HP)
7.5KW (10HP)
11KW (15HP)
15KW (20HP)
22KW (30HP)
37KW (50HP)
Version
NOMINAL OUTPUT
CURRENT
14A
17A
26A
35A
50A
75A
Page 7 of 18
: 1.01
MODEL
TYPE
4B14A
4B17A
4B26A
4C35A
4C50A
4D75A
