Summary of Contents for Coaster 723607

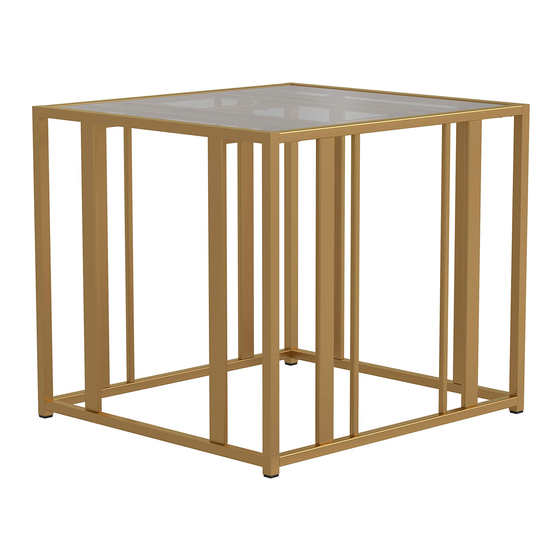

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 723607 END TABLE REVISION 0 : 12/02/2019 PAGE 1 OF 6 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
723607 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
723607 ITEM: ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS HARDWARE IDENTIFICATION SHORT BOLT 20PCS (1/4" x 12mm) LONG BOLT 8PCS (1/4" x 18mm) SUCTION CUP 4PCS 10mm) ∅ 4PCS (20 x 20mm) ALLEN WRENCH (4mm) PAGE 3 OF 7 PAGE 3 OF 6 COASTERFURNITURE.COM... - Page 4 723607 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 Do not tighten until each step is completed or instructed. STEP 2 PAGE 4 OF 6 COASTERFURNITURE.COM...
- Page 5 723607 ITEM: ASSEMBLY INSTRUCTIONS STEP 3 STEP 4 PAGE 5 OF 6 COASTERFURNITURE.COM...
- Page 6 723607 ITEM: ASSEMBLY INSTRUCTIONS Product Size : 660 X 610 X 559 H (MM) Product Size : 26" X 24" X 22" 100 mm 50 mm 2" 4" 217 mm " 50 mm 2" 100 mm 4" 559 mm 22"...
