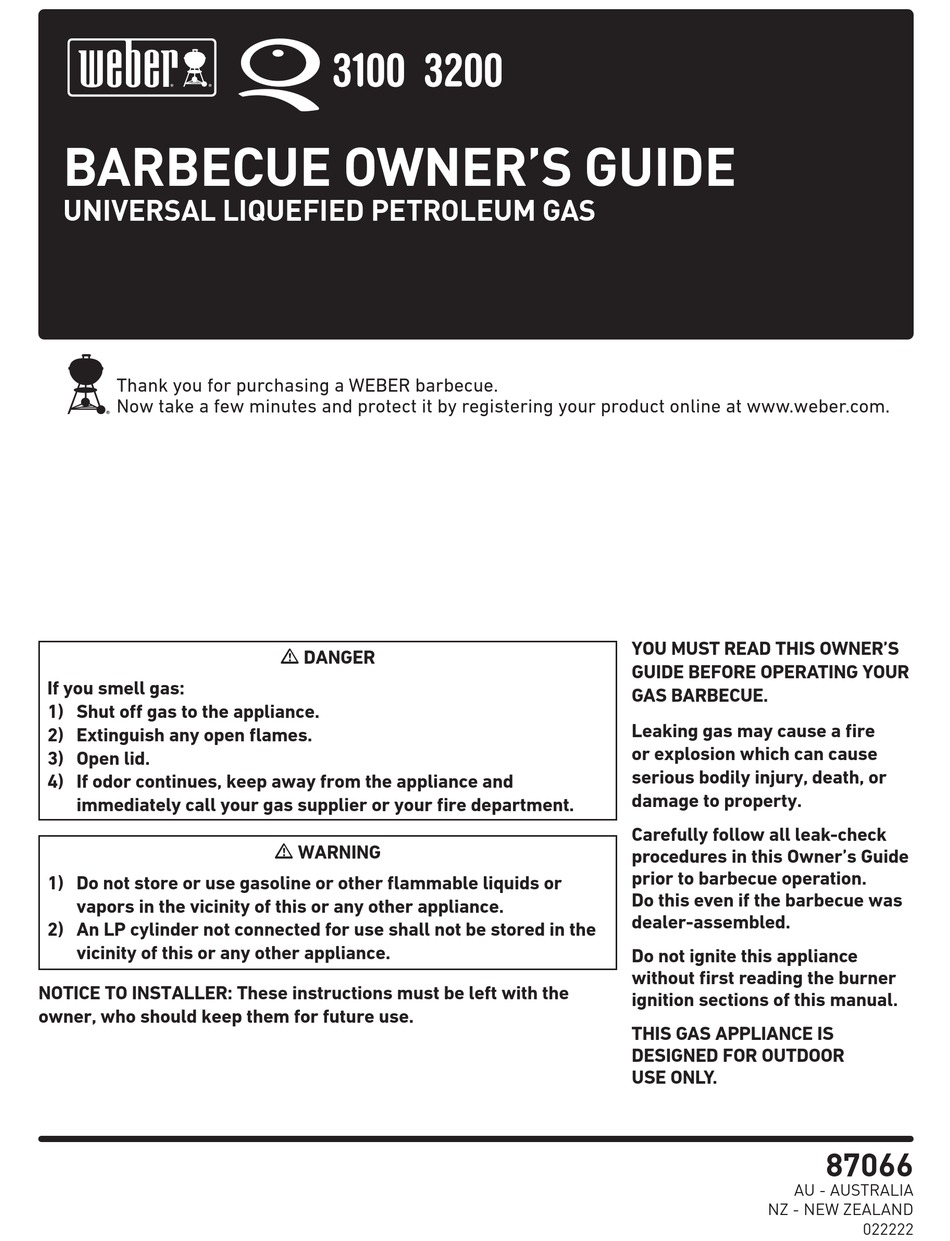

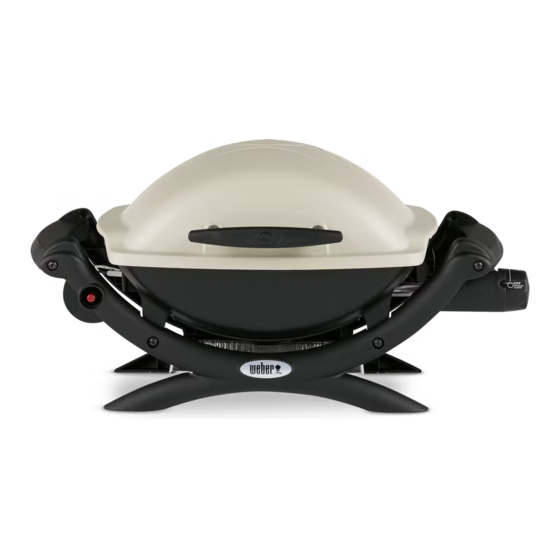

BARBECUE OWNER'S GUIDE
UNIVERSAL LIQUEFIED PETROLEUM GAS
Thank you for purchasing a WEBER barbecue.
Now take a few minutes and protect it by registering your product online at www.weber.com.
If you smell gas:
1) Shut off gas to the appliance.
2) Extinguish any open flames.
3) Open lid.
4) If odor continues, keep away from the appliance and
immediately call your gas supplier or your fire department.
1) Do not store or use gasoline or other flammable liquids or
vapors in the vicinity of this or any other appliance.
2) An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
NOTICE TO INSTALLER: These instructions must be left with the
owner, who should keep them for future use.
m DANGER
m WARNING
YOU MUST READ THIS OWNER'S
GUIDE BEFORE OPERATING YOUR
GAS BARBECUE.
Leaking gas may cause a fire
or explosion which can cause
serious bodily injury, death, or
damage to property.
Carefully follow all leak-check
procedures in this Owner's Guide
prior to barbecue operation.
Do this even if the barbecue was
dealer-assembled.
Do not ignite this appliance
without first reading the burner
ignition sections of this manual.
THIS GAS APPLIANCE IS
DESIGNED FOR OUTDOOR
USE ONLY.
AU - AUSTRALIA
NZ - NEW ZEALAND
87066
022222
