Service Manual

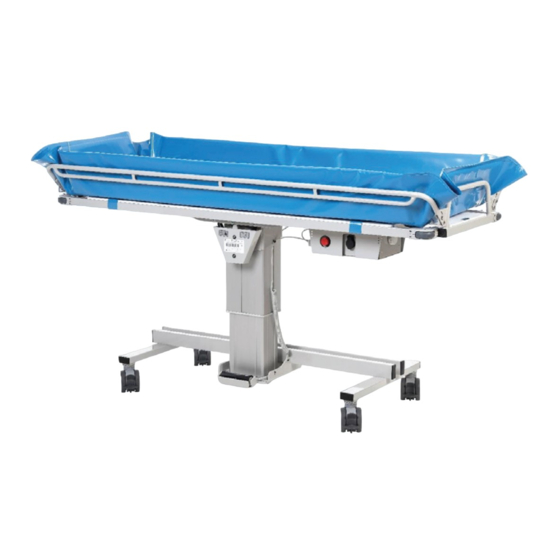

2000-V21 Hydraulic Shower Trolley
3000-V21 Battery Operated Shower Trolley
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Form #2-367
5/2/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2000-V21 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EZ Way 2000-V21

Summary of Contents for EZ Way 2000-V21

  • Page 1 Service Manual 2000-V21 Hydraulic Shower Trolley 3000-V21 Battery Operated Shower Trolley WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. Form #2-367 5/2/22...

  • Page 2: Table Of Contents

    2000-V21 - How to replace the hydraulic pump and foot pedal . . . . . . . . . . . . . . .

  • Page 3: Introduction

    Introduction EZ Way, Inc. Dear customer, If you need spare parts and can’t find it in the spare parts list, contact EZ Way at (800)-627-8940. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 4: Manufacturer

    Manufacturer EZ Way, Inc. TR Equipment AB Rundelgatan 2 SE-573 35 Tranås Sweden Phone: +46 (0)140 38 50 60 www.trequipment.com info@trequipment.se EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 5: Spare Parts 2000-V21

    Spare Parts 2000-V21 EZ Way, Inc. 2000-V21, Hydraulic Shower Trolley 2000-V21, S-V21, L-V21, W-V21 2, 3, 4 16a, 16b 13, 14 11a, 11b EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...
  • Page 6 Plastic plate 2, 2000W-V21, 687*680mm Standard equipment 3234161-1900 Side rail 2000-V21 Standard equipment 3234161-1600 Side rail 2000S-V21 Standard equipment 3234161-2100 Side rail 2000L-V21 Standard equipment 3234161-1950 Side rail 2000W-V21 Standard equipment EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 7: Spare Parts 3000-V21

    Spare Parts 3000-V21 EZ Way, Inc. 3000-V21, Battery Powered Shower Trolley 3000-V21, S-V21, L-V21 2, 3, 4 14a, 14b 16a, 16b 11a, 11b EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...
  • Page 8 Side rail TR 2000-V21/3000-V21 Standard equipment 3234161-1600 Side rail TR 2000S-V21 / 3000S-V21 Standard equipment 3234161-2100 Side rail TR 2000L-V21 / 3000L-V21 Standard equipment 7440001 Hand control Option EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 9: Spare Parts 3000-V21, On-Board Batteries

    Spare Parts 3000-V21, On-Board Batteries EZ Way, Inc. 3000-V21, Battery Powered Shower Trolley Battery enclosure 3000-V21, part number: 200119 13a, 13b 14a, 14b EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...
  • Page 10 Lead battery 12V 7Ah (2st) 819354-02 Circuit board 850722 Circuit board holder 7429679 Cabling 3330022 Battery holder Battery charger 0541226 Battery charger Mag Code 819141 US Plug for battery charger EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 11: Spare Parts 3000-V21, Removable Battery

    Spare Parts 3000-V21, Removable Battery EZ Way, Inc. 3000-V21, Battery Powered Shower Trolley Enclosure 3000R-V21, removable battery 13a, 13b EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...
  • Page 12 Lithium battery incl . mounting plate and cable 853101 Adapter cable (included in 200110) Inside enclosure 819354-02 Circuit board 850722 Circuit board holder Battery charger 0521198 Battery charger US EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 13: Wiring Diagram Circut Board 3000-V21, On-Board Batteries

    Wiring Diagram Circut Board 3000-V21, On-Board Batteries EZ Way, Inc. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 14: Wiring Diagram Circut Board 3000-V21, Removable (Lithium) Battery

    Wiring Diagram Circut Board 3000-V21, Removable (Lithium) Battery EZ Way, Inc. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 15: Service Instructions

    Service Instructions 2000-V21 - How to replace the hydraulic pump and foot pedal EZ Way, Inc. • Remove mattress, pillow, and plastic plate from the shower trolley . • Loosen and remove the Foot pedal screw . • Loosen and remove the Piston rod screw .

  • Page 16: 3000-V21 - How To Replace The Battery Powered Lifting Column

    . Note the position of the lifting column cable . • If necessary, fasten cables with cable ties . Lifting column connector MJB Junction box Loosen and remove the four lifting column screws . EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 17: 2000-V21 / 3000-V21 - How To Replace The Castors

    • Verify that the straight steering function on the castor is working properly . Note the position of the pedal when the straight steering function is activated . EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 18: 2000-V21 / 3000-V21 - How To Replace The Gas Struts

    . • Make sure you don’t damage/bend the gas strut pin during the assembly . Triangular cover Cover Screws Tilting handle Gas strut bracket EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 19: 2000-V21 / 3000-V21 - How To Replace The Tilt Wire

    Tension the tilt wire and fasten screw and nut 100% . • Verify that the tilt function works properly . If Wire wheel necessary, adjust the tensioning . Triangular Cover Column hat EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 20: How To Replace Foot Control Or Hand Control

    2 . Push up the levers 2-5, one at a time . 3 . Remove the plug and replace it with the cable for the hand control . 4 . Attach the cover again . 5, 4, 3, 2 EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 21: Battery Enclosure On-Board Battery

    . • Unscrew the lid . Cabling including fuse 12V batteries Circuit board Circuit board holder and fuse holder 7429679 819030 819354-02 850722 Battery holder 3330022 EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 22: Battery Enclosure Removable Battery

    . • Unscrew the lid . Emergency stop 819310 Contact block 819312 Circuit board EPDM gasket 829144 819350-02 Vent plug Circuit board holder 819171 850722 EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 23: Electrical Trouble Shooting, 3000-V21 On-Board Batteries

    Is the contact block for the emergency stop is properly fastened? • One or both batteries probably have too low voltage . Check the voltage and replace if necessary . • Replace circuit board . EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...

  • Page 24: Electrical Trouble Shooting, 3000R-V21 Removable Battery

    If the beep is one long and two short the lifting column needs to be calibrated . (See table of contents in the Operating manual) It’s not possible to charge the battery . • Replace the battery . EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...
