- Page 1 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
-
Page 2: Table Of Contents
User Instructions . . . . . . . . . . . . . . . . . . . 20 Height adjustment 2000-V21 ... 20 Height adjustment 2000-V21 . -
Page 3: Manufacturer
Rundelgatan 2 SE-573 35 Tranås Sweden Phone: +46 (0)140 38 50 60 www.trequipment.com info@trequipment.se USA Distributor: EZ Way Inc. P.O. Box 89 Clarinda, IA 51632 (800)627-8940 Fax (712)542-1899 www.ezlifts.com EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 4: Introduction

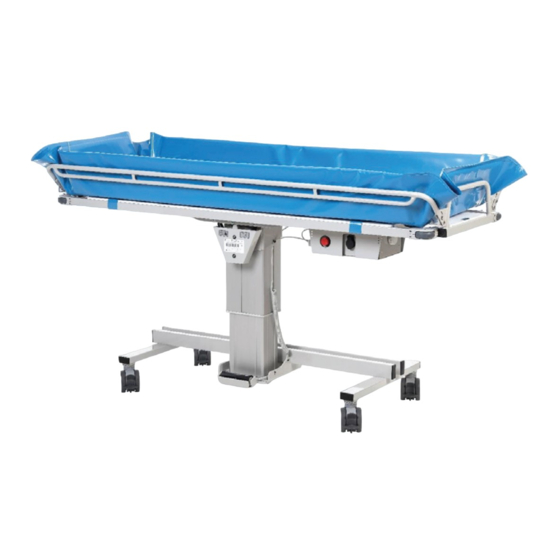

Introduction Dear Customer, Thank you for choosing one of our quality products. We hope you enjoy the 2000-V21 and 3000- V21 shower trolleys. This manual shall, in conjunction with staff training, ensure that the operator/user is always using and/or operating the 2000-V21 or 3000-V21 correctly. -
Page 5: Unpacking
. • Carefully remove the shower trolley from the pallet . WARNING: When moving the shower trolley from the pallet, two people are required. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 6: Calibration/Initialization
• When you hear two short signals the shower Down (—) trolley is ready to be used again. 3000-V21 as standard equipped with a foot control Down button 3000-V21 with hand control (Option) EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 7: Intended Use
• Changing diapers. • The 2000-V21 is NOT intended to be used with patients that exceed a weight of 200kg. (440 lb.) • The patient is typically a person who is unable to take care of their own personal hygiene. -
Page 8: 3000-V21 Battery Operated Shower Trolley
Mandatory to read the Operating manual before using the equipment. WARNING: Make sure you have read, understand, and applied the information on the following pages before using the shower trolley. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 9: Safety Instructions
The 2000-V21/3000-V21 shower trolley must not be operated by anyone until the user has read and understands the instructions in this manual. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... - Page 10 The shower trolley must not be operated by anyone until the user has read and understands the instructions in this manual. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...
-
Page 11: In Case Of Accident
Phone: +46 (0)140 38 50 60 www.trequipment.com info@trequipment.se Group subsidiary: TR Group Inc . Phone: +1 (800) 7526900 www.trequipment.com info@trequipment.se Distributor: EZ Way, Inc Phone: (800)627-8940 www.ezlifts.com sales@ezlifts.com EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 12: Features And Controls
7 3000-V21 Foot control UP (+) / DOWN (—) 17 Hose holder 8 3000-V21 Hand control Up/DOWN (Option) 18 Drainage 9 2000-V21 Foot pedal UP/DOWN 19 Drainage plug 20 Pillow EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 13: Product Description
• Straight steering castors (2 pcs) Drainage hose 2.5M (8 Feet) Wedge pillow 15° • Mattress fasteners and straps IV pole bracket Contact EZ Way or your EZ Way representative for part numbers. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 14: General Product Description 3000-V21
• Drainage hose 2,5M (8 Feet) • Wedge pillow 15° • Mattress fasteners and straps • IV pole bracket Contact EZ Way or your EZ Way representative for part numbers. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 15: Possible Combination With Other Equipment
Product Description Possible combination with other equipment Possible equipment combinations 2000-V21 / 3000-V21 Shower panel 2810 EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 16: Technical Specification
3000-V21 Voltage Supply voltage 24 VDC, 7Ah (Lead-acid, rechargeable) Supply voltage 3200R-V21 24 VDC, 4 Ah (Lithium, rechargeable) Battery charger input 100-240VAC, 50/60Hz Battery charger out put 24VDC EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... - Page 17 Technical life span 10 years if the product is serviced and maintained according to instructions in this manual. Transport and storage Ambient temperature -20°C - +70°C -4°F - +158°F EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...
-
Page 18: Technical Specification
Measurements 2000-V21 (standard version) Standard dimensions (see technical specification for 2000L-V21, W-V21 & S-V21) 30.11" 25.2" 23" 68" 75" 12" 4.75" (off center) 24.25" 49.21" 8.58" 11.35" 4" 4" 44.5" EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 19: Measurements 3000-V21 (Standard Version)
Measurements 3000-V21 (standard version) Standard dimensions (see technical specification for 2000L-V21 & -S-V21) 30.11" 25.2" 75" 23" 68" 13" 4.75" (off center) 24.25" 49.21" 8.58" 11.35" 4" 4" 44.5" EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 20: User Instructions
When the stretcher hits the tops position a safety valve opens in the hydraulic piston and the stretcher stops moving upwards. WARNING: Maximum working load = 200kg (440 lb.) EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 21: Height Adjustment 2000-V21
DOWN (–) when you stop pressing the foot pedal. When the stretcher reaches the highest position, it will automatically stop. WARNING: Maximum working load = 200kg (440 lb.) EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 22: 3000-V21 Emergency Stop
Way or an EZ Way representative for repair. If you hear a beeping sound when you start using the shower trolley again, calibrate the lifting column. See table of contents for instructions. Emergency stop EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 23: 3000-V21 - Charging Instructions
Charging connector mounted on the stretcher frame. on battery charger To open the enclosure a Torx 25 tool is needed. Charging indicator EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 24: Side Rails
When transporting through narrow doorways, reduce the width of the shower trolley by holding the side rails in a vertical position. Nursing side Bed side/Transfer side Nursing side EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 25: Corner Bumper Wheels
User Instructions Corner bumper wheels The 2000-V21/3000-V21 shower trolley is equipped with corner bumper wheels in all four stretcher corners to protect walls and doorways. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 26: Castors
Black pedal DOWN until it clicks in position. • To release the straight steering function, press the upper part of the Black pedal upwards. Transport Direction EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 27: Tilt Function
To reduce water dripping on the floor, after use, bend the drain hose nozzle upwards using the plastic hose holder. The drainage plug for each outlet is fastened with a nylon string on the stretcher frame EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 28: Patient Handling
Always use the hose holder to prevent dripping on the floor during transport. WARNING: If the patient needs “Trendelenburg” position, only qualified staff who understand the procedures may operate the shower trolley. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 29: From Wheelchair Onto Shower Trolley
• Transport the patient to the hygiene area. To return patient to wheelchair from shower trolley simply reverse steps above in an opposite procedure. UP (+) DOWN DOWN (–) 2000-V21 3000-V21 EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 30: From Bed Onto Shower Trolley
• Use the tilt handle to tilt the stretcher into a comfortable position for the patient and adjust the trolley height to an ergonomically transporting height. UP (+) DOWN DOWN (–) 2000-V21 3000-V21 EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 31: Showering The Patient
Always check the water temperature by hand before showering the patient. WARNING: If the patient needs “Trendelenburg” position, only qualified staff who understand the procedures may operate the shower trolley. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 32: Labels And Symbols
Labels and Symbols Product label TR Equipment logotype Medical equipment according to MDR 2017/745 CE marking Manufacturing date Factory address Part number Serial number EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... - Page 33 Tilting handle for tilting the stretcher. Tilting handles placed at the short ends of the stretcher (under the plastic plate). Label shows which side is the nursing side. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...
-
Page 34: Routine Maintenance
• Check that the raising and lowering function to ensure smooth operation throughout the entire lift range. • Remove mattress and plastic plate. Inspect the stretcher signs of wear. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... - Page 35 Maintenance recommendations for Maintenance every 3 years, Maintenance every 5 years, and Maintenance every 10 years are based on Home Care use and Public use from SS-ISO 17966:2016. If your 2000-V21/3000-V21 will be used in an institution, contact TR Equipment for a customized maintenance schedule...
-
Page 36: Maintenance Every 3 Years
IMPORTANT Shower trolleys should immediately be taken out of operation if defects or irregularities are noted. Prompt service is required. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 37: Disposal / Recycling
• Wrapping materials is cardboard box and a wooden pallet. • Cardboard box, cardboard bottom and cardboard lid shall be recycled as cardboard and pallet shall be recycled as wooden materialsw EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 38: Cleaning Instructions
Please read the cleaning liquid/detergent supplier´s instruction manual and find out whether the product is suitable for use with this product. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... - Page 39 The mattress is attached to the stretcher with the fastening straps (4pcs). Press the female strap button onto the male button on the inside of the stretcher frame. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...
- Page 40 • Rinse off dirt and cleaning product residues thoroughly with cold or lukewarm water to prevent material discolorations. • Store mattress and pillow only if it’s clean and completely dry. EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...
-
Page 41: Training Record
Training Record Date: Participants: Signed by: EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com... -
Page 42: Maintenance Record
Maintenance Record Date: Comment: Signed by: EZ Way, Inc. • (800) 627-8940 • Fax (712) 542-1899 • www.ezlifts.com...
