E2S IS-CP4B-BG Instruction Manual page 3

2
1
E2S PART NO. DESCRIPTION
BExCP3B/C/D/E-BG
BExCP3B/C/D-BG BREAK GLASS MANUAL CALL POINT
A
BExCP3B/C/D/E-PB BExCP3B/C/D-PB PUSH BUTTON MANUAL CALL POINT
BExCP3B/C/D/E-PT BExCP3B/C/D-PT TOOL RESET MANUAL CALL POINT
IS-CP4B-BG
IS-CP4B-BG BREAK GLASS MANUAL CALL POINT
IS-CP4B-PB IS-CP4B-PB PUSH BUTTON MANUAL CALL POINT
IS-CP4B-PT
IS-CP4B-PT TOOL RESET MANUAL CALL POINT
B
Single Microswitch
EOL (End of Line) Device
C
D
1A - Circuit shown in Unoperated condition
(Glass Intact / Standby Condition)
Terminals +(2,3) & -(4,5) open
Terminals +(2,3) & (6) closed
E
F
1B - Circuit shown in Operated condition
(Glass Broken / Button pushed in)
Terminals +(2,3) & -(4,5) closed
Terminals +(2,3) & (6) open
DRAWING TO BS8888:2000 DRAWN
GEOMETRIC TOLERANCES TO ISO1101:1983
D.HOWGILL
LINEAR DIMENSIONAL TOLS
ANGULAR DIMENSIONAL TOLS
CHECKED
G
R.N.POTTS
STANDARDS
BExCP3B/C/D/E CALL POINTS
APPROVED
R.N.POTTS
3 4
DATA REFERENCE
1.24.070
1.24.080
1.24.090 Resistor Resistor
Diode Diode
1.14.010
Zener Diode Zener Diode
1.14.020
1.14.030
Single Microswitch
Series Device
2A - Circuit shown in Unoperated condition
(Glass Intact / Standby Condition)
Terminals +(2,3) & -(4,5) open
Terminals +(2,3) & (6) closed
2B - Circuit shown in Operated condition
(Glass Broken / Button pushed in)
Terminals +(2,3) & -(4,5) closed
Terminals +(2,3) & (6) open
SURFACE FINISH WEIGHT (Kg)
DATE
07-02-20
MATERIAL
DATE
07-02-20
ALTERNATIVE MATERIAL
DATE
07-02-20
5 6
Module Device Codes Module Device Codes
EOL EOL Series Series
ExxxR ExxxR SxxxR SxxxR
ED1 ED1 SD1 SD1
ExxxZ ExxxZ SxxxZ SxxxZ
Single Microswitch
EOL & Series Device
3A - Circuit shown in Unoperated condition
(Glass Intact / Standby Condition)
Terminals +(2,3) & -(4,5) open
Terminals +(2,3) & (6) closed
3B - Circuit shown in Operated condition
(Glass Broken / Button pushed in)
Terminals +(2,3) & -(4,5) closed
Terminals +(2,3) & (6) open
THIS DRAWING AND ANY INFORMATION OR DESCRIPTIVE
MATTER THEREIN IS COMMUNICATED IN CONFIDENCE AND
IS THE COPYRIGHT PROPERTY OF EUROPEAN SAFETY
SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY
BE DISCLOSED, LOANED, COPIED OR USED FOR
MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR
WRITTEN CONSENT.
EUROPEAN SAFETY SYSTEMS LTD.
C AS PER LATEST DATE OF ISSUE SHOWN ABOVE
7 8 9
ISSUE MOD No.
INTRODUCTION
1
D.A.H - 07-02-2020
TYPE E ADDED ; SIMPLIFIED DIAGRAMS
2 ACN0077
ADDED. D.A.H - 26-08-2020
Single Microswitch
EOL & Series Device
Wiring Option 2
4A - Circuit shown in Unoperated condition
(Glass Intact / Standby Condition)
Terminals +(1,2) & -(4,5) M/S 1 open
Terminals +(1,2) & (6) M/S 1 closed
4B - Circuit shown in Operated condition
(Glass Broken / Button pushed in)
Terminals +(1,2) & -(4,5) M/S 1 closed
Terminals +(1,2) & (6) M/S 1 open
ALL DIMENSIONS IN MM
2S
IF IN DOUBT, ASK -
DO NOT SCALE
warning signals
BExCP3B/C/D/E-BG/PB/PT MANUAL
TITLE
EUROPEAN SAFETY SYSTEMS LTD

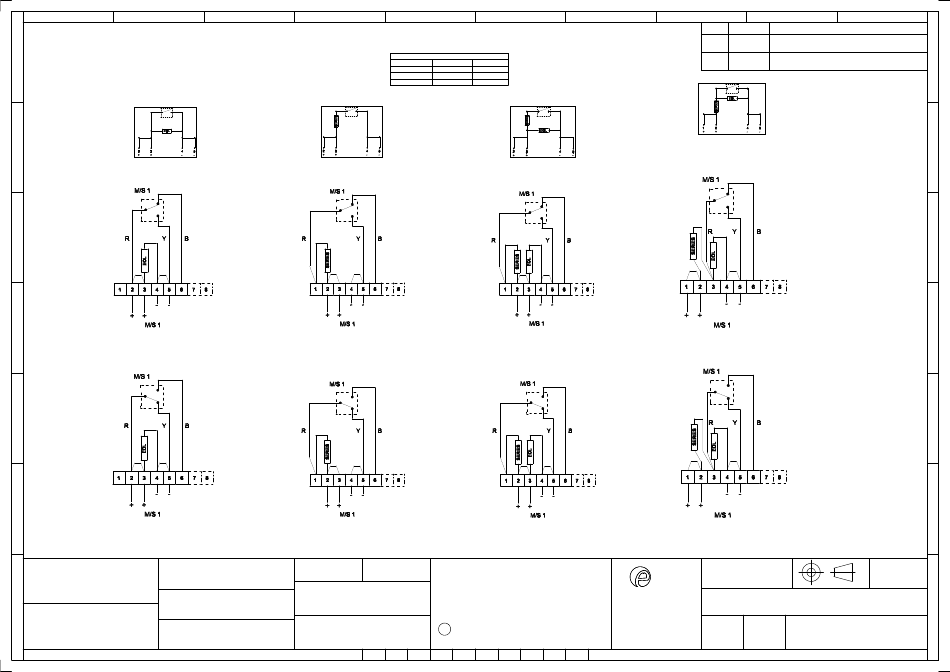

CALL POINT WIRING SCHEMATIC
IMPRESS HOUSE
MANSELL ROAD
ACTON
DRAWING NUMBER
SCALE SHEET
LONDON W3 7QH
NTS 1 1
OF
WWW.E2S.COM
10
REASON - INITIAL - DATE
A
B
C
D
E
F
A3
G
D150-06-051
