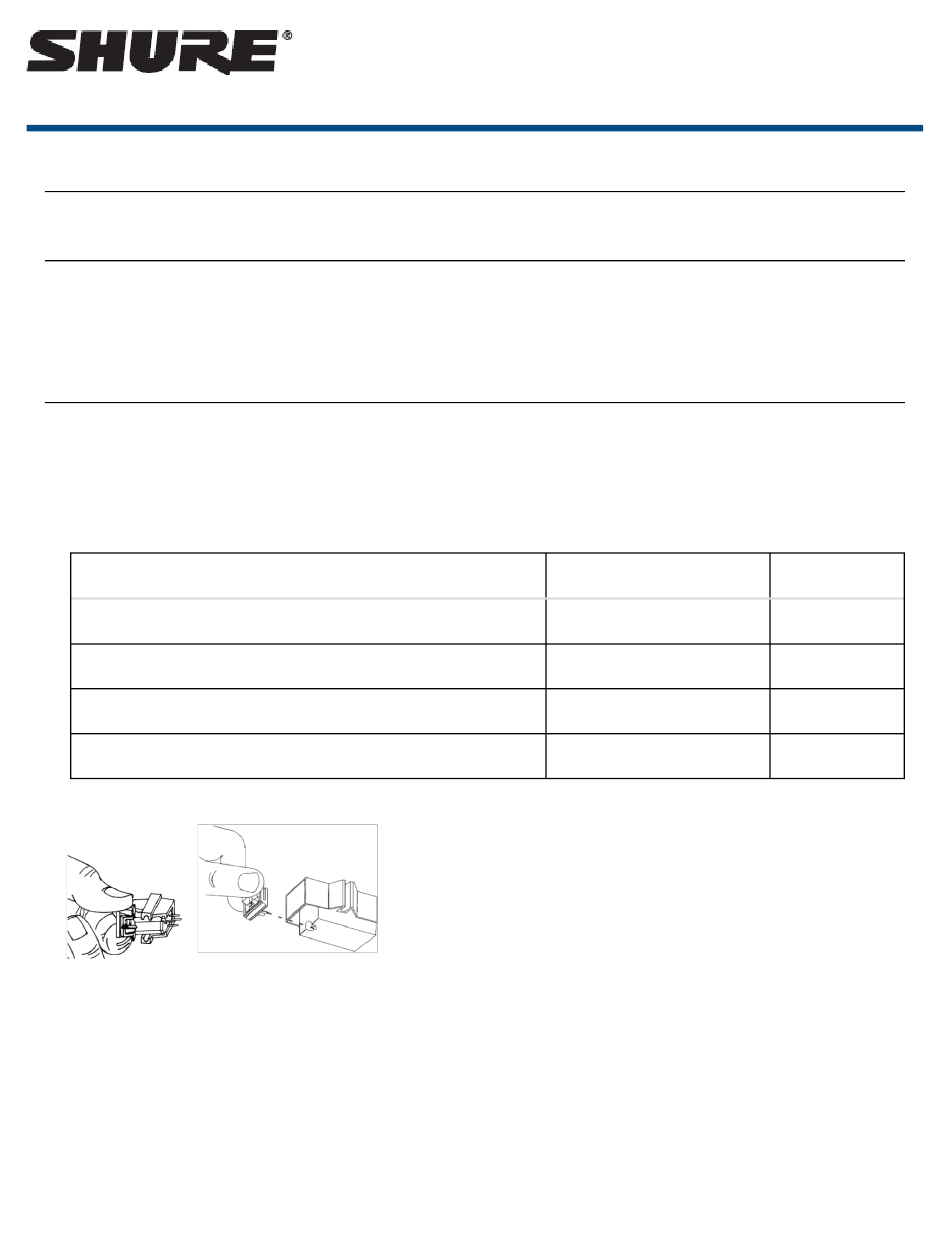

33-44 Series -- Phono Cartridge
General Description
Shure cartridges can be used in DJ or Hi-Fi applications.
The M70BX is not recommended for heavy scratching.
Install Your Cartridge
1. Carefully remove the stylus from the cartridge. See Figure 1.
2. Use needle-nose pliers to connect the colored wires from the tonearm headshell to the corresponding pins on
the cartridge. See Table 1 and Figure 2.
Table 1. Cartridge Wiring
HEADSHELL WIRE
RIGHT "HOT"
RIGHT GROUND
LEFT "HOT"
LEFT GROUND
Figure 1
COLOR
RED
GREEN
WHITE
BLUE
PIN
R
RG
L
LG
1/5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Shure 33-44 Series
Summary of Contents for Shure 33-44 Series
- Page 1 33-44 Series -- Phono Cartridge General Description Shure cartridges can be used in DJ or Hi-Fi applications. The M70BX is not recommended for heavy scratching. Install Your Cartridge 1. Carefully remove the stylus from the cartridge. See Figure 1. 2. Use needle-nose pliers to connect the colored wires from the tonearm headshell to the corresponding pins on the cartridge.
- Page 2 Shure Incorporated Figure 2 Figure 3 1. Attach the cartridge to the headshell using the screws supplied. See Figure 3. Tighten the screws after posi tioning the cartridge (and headshell weight, if desired) according to one of the methods described below.
- Page 3 Shure Incorporated Figure 4 Standard DJ Setup: Mount cartridge at rear of headshell. Set tonearm height to 4-5. Set tracking force to 3 grams. Set anti-skate control to 0. Figure 5 Unorthodox DJ Setup: Reverse the counterweight and mount it flush with the end of the tonearm. Mount car...
-
Page 4: Care And Cleaning
Shure Incorporated Setting a Precise Tracking Force 1. After mounting the cartridge on the tonearm, rotate the circular weight at the back of the tonearm until the nee dle floats evenly above the record. 2. Hold the circular weight in place and rotate the calibration ring to read zero. The tonearm should still float even... - Page 5 Shure Incorporated Typical Replace Stereo Output (1 KHz Frequency Tracking Tracking Car ment Sty Stylus at 5 cm/sec peak Response in Force Range Force tridge Color recorded velocity) (grams) (grams) M44-7 N44-7 White 9.5 mV 20 to 20,000 M44G N44G Gray 6.2 mV...
