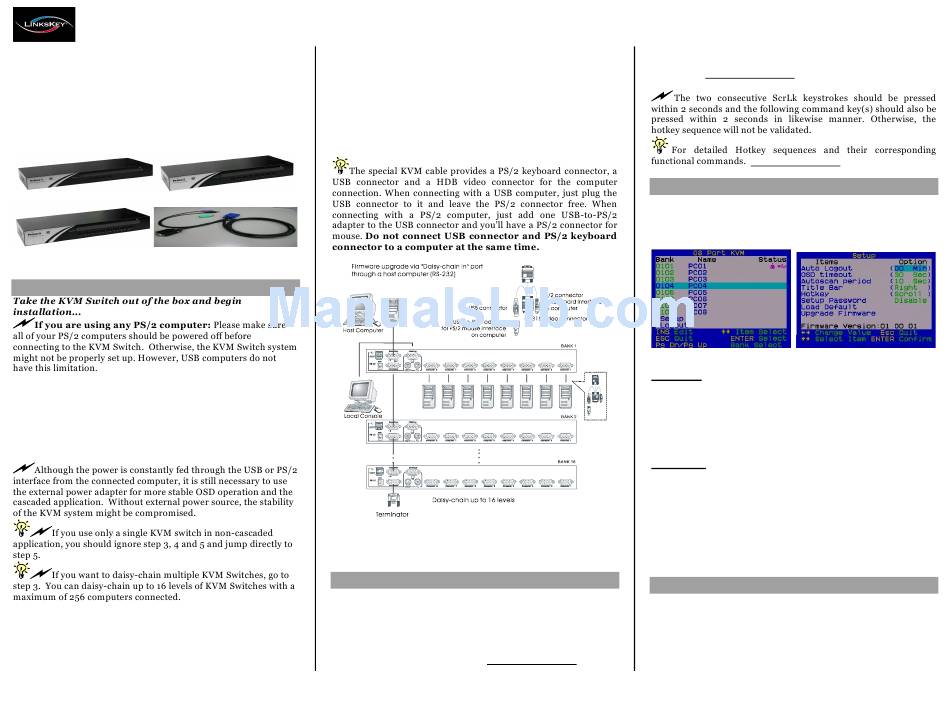

Linkskey Prima LKV-9304 Quick Installation Manual

Quick Installation Guide
LKV-9304/LKV-9308/LKV-9316
4/8/16-port Cascadable Rackmount
USB PS/2 KVM Switch w/ OSD
Quick Installation Guide
Thank you for purchasing the Prima Series Cascadable
Rackmount USB PS/2 KVM Switch! With our highly reliable and
quality product, user can enjoy countless benefits from using it.

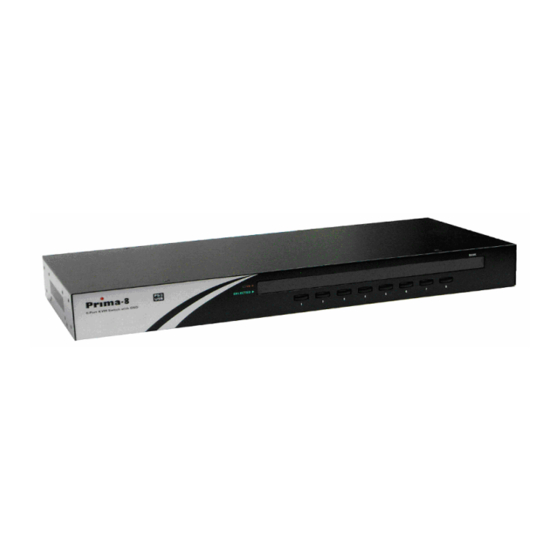

LKV-9304
LKV-9316 C-KVM-SC6 / C-KVM-SC10

Out-of-the-box Installation

Step 1. Make sure (at least the PS/2) computers that are to be
connected to the KVM switch are powered off. If not,
power them off before you proceed with the following
steps.
Step 2. Connect the shared keyboard, mouse and monitor to the
console connectors on the rear of your (master) KVM
switch. Power on the KVM Switch by attaching the
power adapter cord.
Step 3. Use the daisy-chain cable (M-HDB15-HDB15-F) to
connect the DaisyChain Out Port (HDB 15 female) of
the master KVM Switch to the DaisyChain IN Port (HDB
15 male) of the second KVM switch. Connect the power
adapter cord to the second switch to power it on.
Step 4. If you have yet another switch to be daisy-chained, just
repeat Step 3 to connect them. You can daisy-chain up
to 16 units of KVM switches. Plug a terminator onto
the Daisy-chain Out Port of the last KVM switch unit.
Step 5. (Now your KVM switch or daisy-chained KVM Switches
should have been powered-up and initialized....)
Connect each of your computers to a computer port on
the rear of the switch(es). You should use the special
USB PS/2 KVM cable (C-KVM-SC6/10/15) either for
connection to a USB computer or a PS/2 computer.
LKV-9308
C-KVM-SC15
Step 6. Power up the connected computers. After your computer is
powered up the keyboard and mouse will be recognized
and now you can begin operating the switch.

Easy Operation

There are three ways to select a specific computer (on a specific
switch, if you have multiple daisy-chained KVM switches), using
front-panel push button, hotkey sequence or OSD Menu
Front-panel push buttons
The front-panel buttons let you have direct control over KVM
switch operation and channel switching. Simply press a button to
switch to its corresponding channel.

Keyboard hotkeys

A keyboard hotkey sequence consists of at least three specific
keystrokes:
.

OSD Menu

To activate the OSD (On Screen Display) Menu, use the hotkey
sequence:
Main menu
Select computer: use Up/Down Arrow key to navigate, PgUp/PgDn
to scroll page. Hit Enter to select.
Edit computer name: just hit Insert to edit and Enter to confirm
change.
Setup: a submenu for various configurations
Logout: lock your keyboard and mouse for security

Setup Menu

Auto Logout: specify time for auto logout (00~99 min)
OSD timeout: specify duration for OSD menu to stay on screen
Autoscan period: specify time for autoscan period
Title bar: specify the position of the OSD title bar
Hotkey: specify the hotkey preceding sequence (
F12 or NUM LOCK
Setup Password: specify the password for access
Load Default: load the default settings
Upgrade Firmware: upgrade the firmware of the KVM switch

Firmware Upgrade

This KVM Switch allows its user to upgrade firmware contents
whenever is needed to enhance the compatibility to other devices
or its functions and performance. Use the firmware upgrade cable
for connection to a host PC via the "Daisy-chain in" port. For
firmware upgrade procedure, please refer to its Firmware Upgrade
Operation Guide.
See Quick Reference Sheet
.
Applicable models: LKV-9304 /LKV-9308 /LKV-9316
See Quick Reference Sheet
Hotkey sequence = ScrLk + ScrLk + Command key(s)
See Quick Reference Sheet
Activate OSD = ScrLk + ScrLk + Space Bar
Deactivate OSD = ESC (Escape key)
Main OSD Menu Setup Menu
SCROLL LOCK, CAPS, ESC,
Rev. 1.2 Copyright© All rights reserved. June 2006
