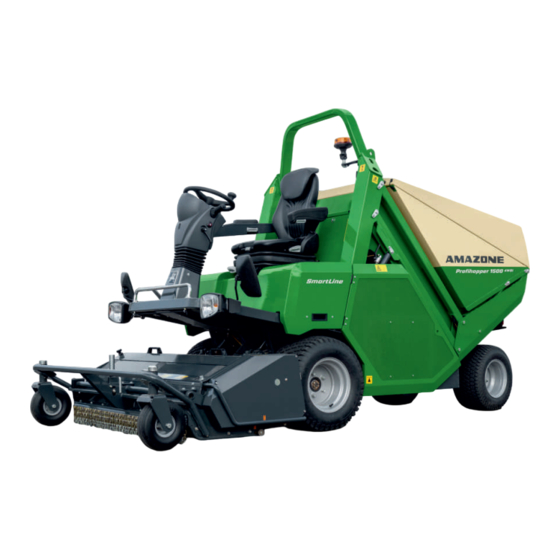

Page 1 Original operating manual Self-propelled mower Profihopper 1500 SmartLine SmartLearning www.amazone.de...
Page 2 Please enter the identification data of the implement. The identification data can be found on the rating plate.
Page 3: Table Of Contents
Emergency hammer in the cab 3.19.3 Control elements in the cab 3.4.6 Grass collector locking device 3.19.4 Hazard warning light 3.4.7 Transmission V-belt protective cover 3.19.5 Accelerator pedal and brake 3.4.8 Rotor protective cover 3.19.6 Crank MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 4 Adjusting the backrest 5.1.1 Opening the doors 6.2.3 Setting the driver's weight for the air 5.1.2 Closing the doors suspension 5.1.3 Opening and closing the doors for 6.2.4 Adjusting the armrests maintenance work MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 5 Lifting the machine Maintaining the machine 7 Using the machine 8.2.1 Maintenance schedule Climbing on and off 8.2.2 Checking the engine coolant fill level 117 Driving the machine 8.2.3 Cleaning the radiator MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 6 Cleaning the implement 9 Transporting the machine Loading the implement with a crane Moving the implement with a transport vehicle Towing the machine 10 Parking the machine 10.1 Parking the implement after operation MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 7: About This Operating Manual
CAUTION Indicates a threat with low risk for light or moderately severe physical injuries. 1.1.2 Further instructions CMS-T-00002416-A.1 IMPORTANT Indicates a risk for damage to the implement. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 8: Instructions
CMS-T-005678-B.1 Reactions to instructions are marked with an arrow. Example: 1. Instruction 1 Reaction to instruction 1 2. Instruction 2 1.1.3.2 Alternative instructions CMS-T-00000110-B.1 Alternative instructions are introduced with the word "or". MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 9: Lists
Lists without an essential order are shown as a list with bullets. Example: Point 1 Point 2 1.1.5 Item numbers in figures CMS-T-000023-B.1 A framed number in the text, e.g. a 1 , indicates an item number in an adjacent figure. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 10: Other Applicable Documents
Your suggestions for improvement help us Technische Redaktion to create ever more user-friendly operating manuals. Postfach 51 Please send us your suggestions by post, fax or D-49202 Hasbergen email. Fax: +49 (0) 5405 501-234 E-Mail: td@amazone.de MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 11: Safety And Responsibility
AMAZONE. Uses other than those specified under the intended use are considered as improper. The manufacturer is not liable for any damage resulting from improper use, solely the operator is responsible. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 12: Basic Safety Instructions
The person must be familiar with safe driving of vehicles. For road travel, the person knows the relevant road traffic regulations and has the prescribed driving permit. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 13 Communal equipment and agricultural helpers use machines by order of a skilled worker or the farmer. They are instructed on the use of the machine by the skilled worker or the farmer, and work independently MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 14 Children cannot assess dangerous situations and can behave unpredictably. As a result, children are at a higher risk. Keep children away. When you drive out or actuate machine movements, make sure that there are no children in the danger area. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 15 Non-observance of the technical limits values of the machine can result in accidents and serious personal injury or even death. Moreover, the machine can be damaged. The technical limit values can be found in the Technical Data. Comply with the technical limit values. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 16 Loosely worn clothing increases the risk of getting caught or entangled on rotating parts and getting stuck on protruding parts. This can result in serious injury or death. Wear close-fitting, snag-free clothes. Never wear rings, necklaces and other jewellery. If you have long hair, wear a hairnet. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 17: Knowing And Preventing Dangers
Never look for leaks with your bare hands. Keep your body and face away from leaks. If liquids penetrate the body, consult a doctor immediately. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 18: Safe Operation And Handling Of The Machine
Loose objects that do not belong to the machine can fall off the machine or be thrown and cause personal injury. Before you move the machine, remove dirt, plant residues and loose objects from the machine. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 19: Safe Maintenance And Modification
When making design changes, observe the permissible axle loads, drawbar loads and total weights of the machine. To ensure that the operating permit remains valid in accordance with national and international regulations, use only conversion parts, spare parts and special equipment approved by AMAZONE. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 20 Remove the ignition key and carry it with you. Remove the key from the battery circuit breaker. Wait until all parts that are still running come to a stop and that hot parts cool down. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 21 Never linger under raised implement parts. If you have to work on or under raised machine parts, lower the implement parts or secure the raised implement parts with a mechanical support or hydraulic locking device. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 22: Safety Routines
2.2.5.4 Special equipment and spare parts CMS-T-00002662-A.1 Special equipment and spare parts Special equipment and spare parts that do not meet AMAZONE requirements can impede the operational safety of the machine and cause accidents. Only use original parts or parts that meet AMAZONE requirements.
Page 23 If you are not sure if the protective equipment is properly installed and functional, have the protective equipment checked by a qualified specialist workshop. Make sure that the protective devices are properly installed and functional before any work on the implement. Replace damaged protective equipment. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 24 When climbing up and down, never hold onto the control elements. Accidental actuation of control elements can unintentionally activate potentially dangerous functions. When climbing down, never jump off of the machine. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 25: Product Description
Roll-over protection 10 Grass collector LED warning beacon 11 Rear wheels, steerable 12 Front wheels 13 Socket, power supply for the trailer 14 Trailer hitch 15 Licence plate lighting 16 Rear lights MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 26: Overview Of The Machine With Cab
17 Rear lights 18 Air conditioning system 3.3 Special equipment CMS-T-00002838-D.1 Deluxe driver's seat Primo XL driver's seat Lighting and identification for road travel LED warning beacon Work floodlights Exterior rearview mirror MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 27: Protective Equipment
If the machine tips over, the roll-over protection 1 protects the driver from injury if he is wearing his seat belt. To be able to drive under obstacles, the roll-over protection can be folded down. CMS-I-00002239 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 28: Warning Beacon
3.4.5 Emergency hammer in the cab CMS-T-00006623-A.1 In case of emergency, the emergency hammer can be used to break open a window pane. The broken pane can then be used as an emergency exit. CMS-I-00004706 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 29: Grass Collector Locking Device
Grass collector is unlocked CMS-I-00001022 3.4.7 Transmission V-belt protective cover CMS-T-00002420-B.1 The transmission V-belt protective cover 1 prevents injury from the transmission V-belt. The protective cover completely covers the transmission V-belt. CMS-I-00002235 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 30: Rotor Protective Cover
CMS-T-00004429-A.1 The rating plate 1 and CE mark 2 are located on the machine for identification. The vehicle ID no. 3 is additionally stamped on the front right of the machine. CMS-I-00002300 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 31 Permissible front axle load in kg Permissible rear axle load in kg CMS-I-00001058 Permissible system pressure in bar Permissible total weight in kg Factory Model year CE mark with year of construction CMS-I-00000512 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 32: Warning Symbols
3 | Product description Warning symbols 3.6 Warning symbols CMS-T-00002408-E.1 3.6.1 Positions of the warning symbols without cab CMS-T-00001182-E.1 CMS-I-00002250 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 33 3 | Product description Warning symbols MD267 MD171 CMS-I-00002249 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 34: Positions Of The Warning Symbols With Cab
3 | Product description Warning symbols 3.6.2 Positions of the warning symbols with cab CMS-T-00006630-B.1 CMS-I-00004711 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 35: Layout Of The Warning Symbols
A warning symbol consists of two fields: Field 1 shows the following: A pictogram depicting the danger area, CMS-I-00000416 surrounded by triangular safety symbol The order number Field 2 shows a pictogram depicting how to avoid the danger. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 36: Description Of The Warning Symbols
Danger due to ejected material As long as engine of the tractor or machine is running, stay away from the danger area. Make sure that there is nobody standing in the danger area. CMS-I-000076 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 37 Only attach the lifting gear at the marked positions. CMS-I-000089 MD 101 Risk of accidents due to improperly attached lifting equipment Only attach the lifting equipment at the marked positions. CMS-I-00002252 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 38 CMS-I-00000427 MD 155 Risk of accident and machine damage during transport due to improperly secured machine Only attach the lashing belts at the marked lashing positions for transporting the machine. CMS-I-00000450 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 39 MD 267 Risk of fire due to grass residues in the area of the engine and exhaust system. Clean the area of the engine and exhaust system only with compressed air. CMS-I-00004983 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 40: Other Information On The Implement
3.7 Other information on the implement CMS-T-00002404-D.1 3.7.1 Lubrication point labels CMS-T-00003336-A.1 Marks a lubrication point on the implement. CMS-I-00002270 3.7.2 Sound power level label CMS-T-00003337-A.1 The sound power level is 105 dB. CMS-I-00000445 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 41: Maintenance Overview
The maintenance overview can be found on the inside of the radiator cover. CMS-I-00003109 3.7.4 Information on the parking brake CMS-T-00009452-B.1 The stickers provide information about the control elements of the brakes and actuation of the parking brake. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 42: Functioning Of The Machine
2 . The cross auger 2 conveys the clippings to the middle. The feed auger 3 picks up the clippings and transports them to the grass collector 4 . CMS-I-00002258 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 43: Deluxe Comfort Driver's Seat
CMS-I-00007146 3.11 Lighting and identification for road travel CMS-T-00002407-C.1 Lighting for road travel, to the rear Rear lights, brake lights, and turn indicators. Licence plate lighting CMS-I-00002274 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 44: Work Floodlights
Parking lights, dipped headlights, and turn indicators. CMS-I-00004712 3.12 Work floodlights CMS-T-00006175-A.1 The work floodlights 1 can be installed as an alternative to the warning beacon. The work floodlights optimally illuminate the working area. CMS-I-00004388 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 45: Trailer Hitch
1 . The trailer is supplied with power from the socket 2 . CMS-I-00002390 3.14 Exterior rearview mirror CMS-T-00002437-B.1 The exterior rearview mirrors 1 are only available in conjunction with the lighting. CMS-I-00002272 CMS-I-00004714 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 46: Drive
(DEF) is required. CMS-I-00002259 3.15.3 Fuel tank CMS-T-00002449-A.1 The fuel tank 1 is located on the right side and has a volume of 50 litres. CMS-I-00002260 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 47: Cutting Deck
CMS-I-00000997 3.16.1.3 Scarifying blades CMS-T-00001193-A.1 The scarifying blades are suitable for scarifying and collecting under dry conditions. The blades are generally used in combination with cutting blades or flail blades. CMS-I-00001002 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 48: High Tip Emptying
2 can be walked on. CMS-I-00002261 3.19 Control elements CMS-T-00002439-E.1 3.19.1 Steering wheel CMS-T-00002455-A.1 The machine is steered by the rear wheels. The steering wheel 1 with steering knob enable comfortable one-handed steering. CMS-I-00002264 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 49: Operating Levers And Operating Buttons
Operating button for lifting and lowering the grass collector cutting deck Operating button for switching the cutting deck Operating button for the warning beacon or work on and off floodlights Operating button for cruise control MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 50: Control Elements In The Cab
The operating button is only equipped on machines with lighting. CMS-I-00002265 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 51: Accelerator Pedal And Brake
3.20.1 Fuel indicator CMS-T-00002458-A.1 The fuel indicator 1 shows the current fill level of the fuel tank. If the warning lamp 2 lights up, the reserve of the fuel tank has been reached. CMS-I-00002267 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 52: Dashboard
The description of the warning lamps, and the possible remedies, can be found in the Faults section. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 53 Flashes when the right turn indicator is Control lamp for right turn indicator switched on. Flashes when the left turn indicator is Control lamp for left turn indicator switched on. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 54: Acoustic Fill Level Indicator For The Grass Collector
CMS-I-00002297 3.20.5.2 Job mode CMS-T-00002684-C.1 In job mode, the Info display shows the data for the current assignment. It is possible to toggle between normal mode and job mode, see page 113. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 55 "Eliminating faults" section. Error message as text Symbol for the error message 1850,0 h Counter reading at the time of the error message Error 6273 Error code Engine oil pressure CMS-I-00002309 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 56: Key
Special key 3 , to open the protective lid on the belt drive guard and the side cover in front of the radiator. NOTE Lost keys can be reordered from AMAZONE by CMS-I-00002360 indicating the vehicle ID no. 3.22 Threaded cartridge CMS-T-00001776-E.1...
Page 57: Amazone Cooling System - Self-Cleaning Cooling Air System
3 | Product description AMAZONE cooling system - Self-cleaning cooling air system 3.23 AMAZONE cooling system - Self-cleaning cooling air system CMS-T-00002467-B.1 The system removes dust and plant residues from the radiator grille. Plant residues are produced particularly when mulching.
Page 58: Technical Data
4 | Technical data Technical data CMS-T-00003082-D.1 4.1 Dimensions CMS-T-00006632-A.1 4.1.1 Dimensions without cab CMS-T-00003084-C.1 CMS-I-00002305 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 59: Dimensions With Cab
2347 mm Total width 1773 mm 4.2 Permissible trailer load CMS-T-00003089-C.1 Designation Value Maximum permissible trailer load 500 kg Maximum drawbar load, trailer hitch 75 kg Maximum permissible D value 4.2 kN MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 60: Engine
When the reserve lamp lights up on the fuel indicator, Reserve the remaining working time is 15 minutes. 4.5.2 Hydraulic oil tank CMS-T-00003096-B.1 Tank volume 23 l Oil designation DIN 51524 HVLP 68 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 61: Grass Collector Volume
4.8.1 Tyre dimensions CMS-T-00009313-B.1 Tyres Dimensions Front tyres 24 x 12.00-12 8PR Rear tyres 20 x 10.00-10 6PR Cutting deck support wheels 4.10-4 4PR Airless cutting deck support wheels 11 x 4.00-5 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 62: Tyre Inflation Pressure
On left in direction of travel max. 26 % On right in direction of travel max. 26 % Up the slope and down the slope Up the slope max. 26 % Down the slope max. 26 % MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 63: Practical Routines
1 . 2. Open the door with the handle 2 . The door is opened and held in the open position with support from the gas spring. CMS-I-00004720 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 64: Closing The Doors
The following steps are the same for both doors. 1. Open the door up to the stop of the gas spring. 2. Pull down the unlocking mechanism 1 . 3. Unhook the gas spring 2 . CMS-I-00004747 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 65: Opening And Closing The Grass Collector Hood
5.2 Opening and closing the grass collector hood CMS-T-00004125-B.1 5.2.1 Opening the grass collector hood CMS-T-00004126-B.1 The grass collector hood can be opened manually to empty the grass collector manually when it is overfilled. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 66 2 up to the stop. 4. Swivel the grass collector hood 3 upwards using the gas springs. The gas springs hold the hood in the open position. CMS-I-00003048 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 67: Closing The Grass Collector Hood
Vehicle battery Diesel fuel pre-filter with water separator Cutting deck transmission V-belt Maintenance flap for access to the coolant tank Threaded cartridge with documents and aids under the seat carrier. Wiper water container MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 68 Risk of injury due to defective gas springs If the seat carrier is open, check the hold of the seat carrier. Support the seat carrier only using the gas spring. Replace defective gas springs immediately. CMS-I-00002356 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 69: Closing The Seat Carrier
If the machine has a cab, perform the following steps in the same way for both doors. 4. pull the door by the handle 1 out of the stop buffer 2 . CMS-I-00004723 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 70: Opening The Toolbox
1. Open the protective cap 1 . 2. Using the key 2 , unlock the toolbox 3 . 3. Open the toolbox 3 by hand in the area of the hollow. CMS-I-00002359 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 71: Closing The Toolbox
Never raise the grass collector on slopes or inclines. CAUTION Risk of burn injuries due to hot surfaces on the engine and exhaust system When the engine and exhaust system are hot, keep the engine cover closed. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 72 6. Turn the locking mechanism 1 to the left CMS-I-00002351 7. Swivel engine cover 2 up with help of the gas spring. The gas spring holds the engine cover in the open position. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 73: Closing The Engine Cover
6. Check that the rubber seal is correctly positioned. To release the locking mechanism of the grass collector, turn the ball valve 1 on the left and right side to position 2 . CMS-I-00002349 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 74: Opening And Closing The Rotor Protective Cover
Installation option for mulch flap WARNING Rotor still running Risk of drawing in and cutting injuries As long as the rotor and cutting tools are moving, keep the rotor protective cover closed. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 75 Only use the rope to secure the rotor protective cover. 7. Hook the rope 3 onto the hook 4 . CMS-I-00002352 The rotor protective cover is locked when in the open position. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 76: Closing The Rotor Protective Cover
7. Check that the crank is properly locked. CMS-I-00002315 5.8 Opening and closing the radiator cover CMS-T-00002861-B.1 5.8.1 Opening the radiator cover CMS-T-00002623-B.1 Through the radiator cover, the following components can be accessed: MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 77: Closing The Radiator Cover
CMS-T-00002863-D.1 5.9.1 Opening the electrical system maintenance flap CMS-T-00002624-D.1 Through the electrical system maintenance flap, the following components can be accessed: Fuse box and relays Job computer Diagnosis plug for workshop work MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 78: Closing The Electrical System Maintenance Flap
The locking mechanisms perceptibly grip into the counter piece. 3. Check that the electrical system maintenance flap is properly locked and firmly seated. 4. Fold the driver's seat backrest into its original CMS-I-00002358 position. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 79: Preparing The Machine
To fold the backrest completely to the front, Fold up the armrests. 5. Pull on the lever and hold it. 6. Fold the backrest completely to the front. CMS-I-00002342 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 80: Adjusting The Seat Suspension
To adjust the height of the headrest pull out or push in the headrest over the perceptible increments. To remove the headrest, Pull the headrest out with a jerk beyond the top end stop. CMS-I-00002340 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 81: Adjusting The Deluxe Driver's Seat
To fold the backrest completely to the front, Fold up the armrests. 5. Pull on the lever and hold it. 6. Fold the backrest completely to the front. CMS-I-00002337 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 82: Setting The Driver's Weight For The Air Suspension
To raise the armrest, turn the hand wheel outwards To lower the armrest, turn the hand wheel inwards. NOTE CMS-I-00002332 When the armrest is folded down, it stops at the previously set slanted position. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 83: Adjusting The Headrest
CMS-I-00002336 6.2.7 Seat heater CMS-T-00002561-B.1 Position 0 = Seat heater off Position 1 = Seat heater on With the 1 switch, the seat heater can be switched on off. CMS-I-00002338 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 84: Adjusting The Primo Xl Driver's Seat
To fold the backrest completely to the front, Fold up the armrests. 5. Pull on the lever and hold it. 6. Fold the backrest completely to the front. CMS-I-00002337 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 85: Setting The Driver's Weight For The Air Suspension
To raise the armrest, turn the hand wheel outwards To lower the armrest, turn the hand wheel inwards. NOTE CMS-I-00002332 When the armrest is folded down, it stops at the previously set slanted position. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 86: Adjusting The Headrest
CMS-I-00002336 6.3.7 Seat heater CMS-T-00002561-B.1 Position 0 = Seat heater off Position 1 = Seat heater on With the 1 switch, the seat heater can be switched on off. CMS-I-00002338 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 87: Adjusting The Fore/Aft Isolator
2. Swivel the control panel 2 to the desired position. 3. Tighten the lever. CMS-I-00002330 4. Loosen the locking bolt 1 5. Push the armrest 2 forward or back. 6. Tighten the locking bolt. CMS-I-00002329 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 88: Adjusting The Steering Column
2. Swivel the steering column 2 in the desired position. 3. Tighten the clamping lever. CMS-I-00002325 6.6 Checking the oil level CMS-T-00002540-C.1 1. Open the radiator cover 1 , see page 70. 2. Pull out the dipstick 2 . CMS-I-00002317 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 89: Refilling The Engine Oil
6. Close the engine cover, see page 67. 6.8 Checking the hydraulic oil level CMS-T-00002542-C.1 1. Completely lower the grass collector, see page 110. 2. Raise the cutting deck completely, see page 108. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 90: Refilling The Hydraulic Oil
2. Check the fill level on the fuel indicator 1 . If the pointer is in the red area or the warning lamp lights up, refill diesel fuel, see page 85. CMS-I-00002267 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 91: Refuelling Diesel
Technical Data. Deviating tyre inflation pressures have a negative effect on the driving behaviour. 1. Check the tyre inflation pressure on all 6 tyres. 2. Correct the tyre inflation pressure if necessary. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 92: Checking The Blades And Blade Mounts
6.14 Selecting the blades CMS-T-00002950-C.1 Depending on the application area, the rotor must be equipped with the right blades. The following table shows which equipment should be used to achieve very good work results. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 93 44 pairs + 44 44 pairs + 44 number of 44 pairs 44 units 44 units units units blades = Very good results Equip the rotor with the blades for the corresponding purpose. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 94: Changing Or Replacing The Blades
Replace worn blades. 2. Swivel the blade 1 towards the pointed area 2 of the mount. 3. Turn the blade by 90° and take it out with the open side on the pointed area. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 95: Installing The Mulch Flap
The mulch flap is installed and prevents transport of mowed material to the auger. The mowed material is chopped and distributed on the ground. CMS-I-00002377 7. Close the rotor protective cover, see page 70. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 96: Removing The Mulch Flap
8. Check that the mulch flap is securely fastened. CMS-I-00002378 6.18 Adjusting the cutting height CMS-T-00002538-C.1 1. Pull the locking mechanism 1 on the bracket towards the front. 2. Take out the crank 2 . CMS-I-00002314 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 97: Folding Up The Roll-Over Protection
1. Fold the backrest of the driver's seat all the way to the front, see page 73. 2. Push the driver's seat all the way to the front, see page 73. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 98: Folding Down The Roll-Over Protection
When you fold the roll-over protection, do not reach into the rotation area. Always hold the roll-over protection firmly at the top. Guide the roll-over protection by hand until its end position. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 99: Coupling The Trailer
6.22 Preparing the machine for road travel CMS-T-00002539-B.1 1. Check the cleanliness of the lighting and the turn indicators. 2. Clean dirty lighting before road travel. 3. Check the lighting and turn indicators for proper function. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 100 6. Have a defective warning beacon repaired immediately. 7. Completely empty the grass collector, see page 110. 8. Remove loose clippings on the cutting deck. 9. Raise the cutting deck completely, see page 108. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 101: Using The Machine
To climb on and off a machine with a cab, use the holding point 1 on the cab and the steps 2 . 4. Always climb up and down facing the machine. CMS-I-00004715 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 102: Driving The Machine
CMS-I-00002373 7.2.2 Starting the diesel engine CMS-T-00002628-C.1 CAUTION Risk of hearing damage due to high noise levels When you are working with the machine, always wear hearing protection. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 103: Switching Off The Diesel Engine
1. Bring the machine to a standstill. 2. Move the direction of travel selection lever to the neutral position, see page 98. 3. Apply the parking brake. 4. Turn the ignition key 1 to position CMS-I-00002385 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 104: Selecting The Direction Of Travel
7.2.5 Accelerating CMS-T-00002631-C.1 1. Select the direction of travel. 2. Step on the accelerator pedal 1 . CMS-I-00002369 7.2.6 Braking CMS-T-00002632-B.1 Step on the brake pedal 1 . CMS-I-00002368 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 105: Applying The Parking Brake
2. Press the operating button once. The control lamp lights up. The current driving speed will be maintained and saved. To save a new forward speed, press the operating button for 2 seconds. CMS-I-00002365 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 106: Using The Warning Beacon
2. The warning beacon is converted in the same way as the work floodlights are mounted, see page 101. 3. Using the operating button 1 , the warning beacon can be switched on off. CMS-I-00002366 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 107: Using The Work Floodlights
3. Completely slide the work floodlights 2 onto the holder. 4. Tighten the wing nut 1 . CMS-I-00004393 5. Slide the warning beacon onto the holder 1 for storage. 6. Tighten the 2 clamp connection. CMS-I-00004391 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 108: Using The Lighting For Road Travel
To switch on the right turn indicator, push the lever to the rear. The right driving direction arrow flashes on the dashboard. CMS-I-00002364 After turning, the lever is automatically shifted back to the centre position. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 109: Actuating The Horn
1. Switch the windscreen wipers on or off using the control button 1 . To use the windscreen washer system, briefly press the control button. The windscreen wiper wipes with wiper water. CMS-I-00004728 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 110: Using The Air Conditioning System And Heater
When lifting and emptying the grass collector, the fan is automatically switched off. This prevents clogging of the fresh air filter with grass or leaves. The fan automatically starts again when the grass collector is completely lowered. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 111 1 . To adjust the direction of the air outlet, turn the air nozzles on the open grills in the desired direction. To close the air nozzles, press the grill closed. CMS-I-00004733 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 112: Using The Cab Lighting
Turning rotor and ejected objects Lower the cutting deck completely before switching on the cutting deck. Only switch on the cutting deck when all of the protective covers are closed and securely locked. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 113 Damage to the conveyor system Do not overfill the grass collector. Pay attention to the acoustic fill level indicator. When the acoustic fill level indicator sounds, the grass collector must be emptied. CMS-I-00002296 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 114: Activating Eco Mode While Mowing
Risk of damage to the rotor When the cutting deck is lowered and switched off, do not move the machine. 1. Switch off the cutting deck with the operating button 1 . CMS-I-00002449 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 115: Mulching
When scarifying, only fill the grass collector halfway when there is a large amount of soil. Observe the maximum permissible total weight according to the technical data. Start and stop scarifying just like mowing. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 116: Emptying The Grass Collector
7.4.2 High tip emptying the grass collector CMS-T-00002642-C.1 WARNING Risk of tipping when the grass collector is raised Only raise the grass collector on stable and level ground. Never raise the grass collector on slopes or inclines. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 117 6. Lower the grass collector by pressing the button. The control lamp lights up until the grass collector is completely lowered. CMS-I-00002379 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 118: Setting The Info Display
3 seconds. 4. Set the time with the operating buttons. 5. Turn the ignition key back to position CMS-I-00002392 The next time the machine is started, the set time will be displayed. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 119: Toggling Between Normal Mode And Job Mode
4. Turn the ignition key back to position CMS-I-00002394 7.5.5 Resetting the maintenance interval CMS-T-00002757-C.1 NOTE The maintenance interval may only be reset by a specialist workshop after maintenance has been performed. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 120 1. Turn the ignition key to position 2. Press the operating buttons 1 and 2 simultaneously 5 times for 1 second. 3. Lower the grass collector, see page 110. 4. Turn the ignition key back to position CMS-I-00002392 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 121: Repairing The Machine
Position the jack or lifting equipment only in the marked area on the frame. CMS-I-00000431 1. Position the jack or lifting equipment in the marked areas on the frame 1 . 2. Slowly lift the machine. CMS-I-00002410 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 122: Maintaining The Machine
127 Changing the water separator filter insert see page 129 Changing the fuel filter see page 130 Changing the engine coolant see page 130 Cleaning the diesel tank see page 131 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 123: Checking The Engine Coolant Fill Level
4. If necessary, refill engine coolant through the filling opening 2 . SAE J814C, J1941, Permitted coolants J1034, J2036 CMS-I-00002411 5. Close the maintenance flap. 6. Close the seat carrier, see page 63. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 124: Cleaning The Radiator
If the water content in the fuel is too high, CMS-I-00002435 clean the water separator, see page 119. 4. Close the seat carrier, see page 63. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 125: Checking The Wheel Bolt Tightening Torques
8.2.6 Checking the wheel bolt tightening torques CMS-T-00002752-B.1 INTERVAL After initial operation Every 50 operating hours weekly Tyres Tightening torque Front tyres, 24x12.00-12 128 Nm Rear tyres, 20x10.00-10 80 Nm Check the wheel bolt tightening torques. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 126: Checking The Hydraulic Hoses
5. Retighten loose bolted connections. 8.2.8 Checking the drive belt CMS-T-00009590-A.1 INTERVAL Every 50 operating hours weekly The following values are used to check the belt tension on the respective drive belt. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 127 12. Check the belt tension on all 3 cutting deck drive belts 1 , check the belt tension on the composite drive belt 1 on the cutting deck. 13. Have the belt tension readjusted at a specialist workshop. CMS-I-00002432 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 128 26. Check all 5 feed auger drive belts for damage and wear. 27. Damaged and worn drive belts must be CMS-I-00002738 immediately replaced by a specialist workshop. 28. Put on the protective cover. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 129: Cleaning The Air Filter
4. Carefully blow out the air filter 1 with compressed air. 5. Put on the air filter lid. 6. Lock the air filter lid. 7. Close the radiator cover, see page 71. CMS-I-00002413 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 130: Changing The Air Filter
5. Take out the air filter 2 underneath. 6. Replace both air filters. 7. Put on the air filter lid and lock it. 8. Close the radiator cover, see page 71. CMS-I-00002917 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 131: Checking The Battery
To take out the battery, remove the bracket 2 . When the new battery is installed, reinstall the bracket 2 . 6. Close the seat carrier, see page 63. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 132: Replacing The Drive Belt
1. Replace all 3 main drive belts 1 . CMS-I-00002433 2. Replace the fan drive belt 1 . CMS-I-00002737 3. Replace all 3 cutting deck drive belts 1 . Replace the composite drive belt. CMS-I-00002432 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 133: Changing The Hydraulic Oil And Filter
1. Drain the hydraulic oil through the drain screw 2. Collect the hydraulic oil in a suitable collection bucket and dispose of in an environmentally friendly manner. 3. Tighten the drain screw with a new gasket. CMS-I-00002416 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 134: Changing The Engine Oil And Oil Filter
Only have work on the engine and its components performed by a qualified specialist workshop. For work on the engine and its components, observe the operating manual of the engine manufacturer. CMS-I-00002415 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 135: Changing The Water Separator Filter Insert
For work on the engine and its components, observe the operating manual of the engine manufacturer. Change the filter insert in the water separator 1 . CMS-I-00002435 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 136: Changing The Fuel Filter
Only have work on the engine and its components performed by a qualified specialist workshop. For work on the engine and its components, observe the operating manual of the engine manufacturer. Change the engine coolant. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 137: Cleaning The Diesel Tank
3. Fill the hopper with a mixture of water and wiper fluid. 4. Screw on the lid. 5. Check the windscreen washer system for proper function. CMS-I-00004735 6. Close the seat carrier, see page 63. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 138: Checking And Replacing The Windscreen Wiper Blade
Only have work on the air conditioning system and the coolant circuit performed by a qualified specialist workshop. For work on the air conditioning system, observe the operating manual and maintenance instructions of the cab manufacturer. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 139: Cleaning The Fresh Air Filter In The Cab
3. Remove the filter plate downwards. 4. Take out the filter foam 2 . 5. Clean the filter foam with compressed air. 6. Replace damaged filter foam. 7. Clean the filter plate with compressed air. CMS-I-00007117 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 140: Clean The Cab Circulation Filter
8.2.23 Clean the cab circulation filter CMS-T-00006653-A.1 INTERVAL Every 10 operating hours as required 1. Check the circulation filter 1 for soiling. 2. Clean or blow off the circulation filter with compressed air. CMS-I-00004738 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 141: Lubricating The Machine
8 | Repairing the machine Lubricating the machine 8.3 Lubricating the machine CMS-T-00002734-A.1 8.3.1 Overview of lubrication points CMS-T-00002735-A.1 CMS-I-00002426 Every 10 operating hours / daily CMS-I-00002424 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 142: Every 50 Operating Hours / Weekly
8 | Repairing the machine Lubricating the machine Every 50 operating hours / weekly CMS-I-00002422 CMS-I-00002421 CMS-I-00002427 CMS-I-00002425 CMS-I-00002423 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 143: Eliminating Faults
Right pump control error Fault in the electronics Stop working with the 131, 132, appears machine immediately. 161, 162, Have the fault 191, 192, eliminated by a 341, 371, qualified specialist workshop. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 144 ECU internal error Fault on the ECU Stop working with the 24, 25, 26, appears machine immediately. 27, 28, 29, Have the fault 30, 40, 42, eliminated by a qualified specialist workshop. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 145 4265 Steering angle sensor Fault on the steering Stop working with the error appears angle sensor machine immediately. Have the fault eliminated by a qualified specialist workshop. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 146 8009 Engine oil pressure error The engine oil pressure is Stop working with the message appears too high or too low machine immediately. Have the fault eliminated by a qualified specialist workshop. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 147 146 clippings are blocking the feed auger Foreign object is blocking Open the rotor the rotor protective cover, see page 68. Remove foreign objects. Close the rotor protective cover, see page 70. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 148 1. Open the electrical system maintenance flap, see page 71 2. Unscrew the screws 1 at the bottom of the fuse box. 3. Push off the cover 2 towards the right. CMS-I-00002395 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 149 Defective main fuse for the cab CMS-T-00010466-A.1 1. Open the engine cover, see page 65. Position Rated current Main fuse for 30 A Maxi fuse the cab CMS-I-00007120 2. Open the fuse holder. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 150 10 A washing system conditioner compressor 10 A and radio (terminal Control of the air conditionin g system and heater 2. Replace defective fuses. 3. Close the cover on the fuse box. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 151 CMS-I-00002387 To remove foreign objects or blockages, turn the crank. 7. Remove foreign objects. 8. Close the rotor protective cover. 9. Insert the crank in the bracket on the cutting deck. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 152 CMS-I-00002388 deck. To unlock the grass collector, turn the ball valve 1 on the left and right side to position 2 . 12. Completely lower the grass collector, see page 110. CMS-I-00002349 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 153: Cleaning The Implement
2. Clean the radiator only with compressed air. 3. Remove grass residues in the area of the engine and exhaust system only with compressed air. 4. Clean the machine with a high-pressure cleaner or a hot water high-pressure cleaner. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 154: Transporting The Machine
Only attach the slings for lifting at the marked lashing points. To determine the required load-bearing capacity of the slings, observe the specifications in the following table. Required load-bearing capacity 1000 kg MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 155: Moving The Implement With A Transport Vehicle
Load the machine forwards in the direction of travel of the transport vehicle. The machine without a cab has 2 lashing points for securing the load. CMS-I-00002440 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 156 3. Switch of the engine and apply the parking brake. CMS-I-00002439 4. Only attach lashing straps at the marked points. 5. Secure the implement in accordance with the regulations to the transport vehicle. CMS-I-00000450 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 157: Towing The Machine
The bypass valves are open. The machine can be towed. CMS-I-00002417 4. Attach the towline to the towing eye 1 . 5. After towing, close the bypass valve again. 6. After towing, apply the parking brake. CMS-I-00002430 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 158: Parking The Machine
7. Check the condition of the drive belts. 8. If necessary, have the drive belts replaced by a qualified specialist workshop. 9. Make sure that there is enough antifreeze in the engine cooling system. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 159 10 | Parking the machine Preparing the machine for longer periods of standstill or overwintering 10. Fill the wiper water container with wiper fluid with anti-freeze. 11. Store the machine in a dry place. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 160: Appendix
CMS-T-00002703-C.1 11.1 Bolt tightening torques CMS-T-00000373-B.1 CMS-I-000260 NOTE Unless specified otherwise, the bolt tightening torques listed in the table apply. 10.9 12.9 M8x1 16(17) M10x1 18(19) M12x1.5 M 14x1.5 M16x1.5 M18x1.5 M20x1.5 MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 161: Other Applicable Documents
1600 2250 2700 CMS-I-00000065 20.4 40.7 70.5 11.2 Other applicable documents CMS-T-00002704-B.1 Yanmar diesel engine operating manual Operating manual and maintenance instructions for the air conditioning system Operating manual for the radio MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 162: Directories
The self-propelled mower is always referred to as the machine in this operating manual. Operating materials Operating materials serve to ensure operational readiness. Operating materials include e.g. cleaning agents and lubricants such as lubricating oil, greases or cleaners. MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 163: Index
Checking the tyre inflation pressure switching off Cleaning Cutting tools Number Closing the door Contact data Technical editing Dashboard Control element Fuel indicator Accelerator pedal Brake pedal Gas pedal Parking brake Control elements in the cab MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 164 Fuses on the machine Forwards direction of travel Reverse direction of travel Selecting the direction of travel Using cruise control 99, 100 Gas pedal Using the seat belt Grass collector hood closing opening MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 165 Intended use Operating button Cruise control Cutting deck Hazard warning light Overview Warning beacon or work floodlights Operating buttons Grass collector Lighting for road travel Overview using Light switching on and off MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 166 Folding the backrest to the front Seat belt Selecting the longitudinal setting Transmission V-belt protective cover Warning beacon Steering wheel Stepping areas Steps Radiator cover closing Switching on the cutting deck opening Requirements Refilling the engine oil MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 167 Tyres Working speed Airless cutting deck support wheels Checking the tyre inflation pressure Dimensions Inflation pressure Using the air conditioning system Using the hazard warning lights Using the heater MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...
Page 170 AMAZONE S.A. FORBACH 17, rue de la Verrerie BP 90106 57602 Forbach Cedex France +33 (0)3 87 84 65 70 forbach@amazone.fr www.amazone.fr MG6399-EN-GB | K.1 | 19.10.2022 | © AMAZONE...

Amazone Profihopper 1500 SmartLine Original Operating Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Amazone Profihopper 1500 SmartLine

Summary of Contents for Amazone Profihopper 1500 SmartLine

Table of Contents
