Summary of Contents for Amazone PROFIHOPPER PH-1250 zDrive

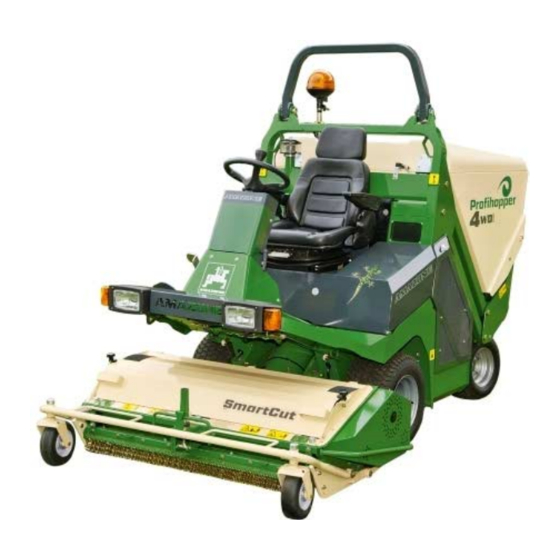

- Page 1 Operating and maintenance manual PROFIHOPPER PH-1250 zDrive PH-1250 iDrive PH-1250 4WDi Read and observe this operat- ing manual before putting the equipment into operation for MG5087 BAF0012.6 04.18 the first time! Printed in France Keep in a safe place for future reference!
- Page 2 READING THE INSTRUCTION manual and adhering to it should not appear to be inconvenient and superfluous as it is not enough to hear from others and to realise that a machine is good, to buy it and to believe that now everything should work by itself.
- Page 3 +33 (0) 3 87 84 65 71 E-mail: forbach@amazone.fr Spare part orders Spare parts lists are freely accessible in the spare parts portal at www.amazone.de. Please send orders to your AMAZONE dealer. Formalities of the operating manual Document number: MG5087 Compilation date: 11.17 ...
- Page 4 Foreword Dear Customer, You have chosen one of the quality products from our wide range of AMAZONE agricultural machinery. We thank you for your confidence in our products. On receiving the machine, check to see if it was damaged during transport or if parts are missing.
-
Page 5: Table Of Contents
Control elements ........................40 6.1.4 Accelerator pedal and parking brake ..................42 Roll-over protection ........................ 44 Drivers seat ..........................45 6.3.1 Standard driver's seat ......................45 6.3.2 "Deluxe" driver's seat ......................46 AMAZONE Cooling System - self-cleaning cooling system ..........47 BAF0012.6 04.18... - Page 6 Table of Contents Starting and using the machine ............... 48 Safety system ........................48 Tyre pressure ........................49 Before starting ........................50 Starting and stopping the engine ..................53 Driving the machine ......................54 Mowing ..........................55 Emptying the hopper ......................57 Cutting, scarifying and mulching .............
-
Page 7: User Information
User information User information The "User information" section supplies information on using the operat- ing manual. Purpose of the document This operating manual • Describes the operation and maintenance of the machine. • Provides important information on safe and efficient handling of the machine. -
Page 8: General Safety Instructions
General safety instructions General safety instructions This section contains important information on safe operation of the ma- chine. Obligations and liability Comply with the instructions in the operating manual Knowledge of the basic safety information and safety regulations is a basic requirement for safe handling and fault-free machine operation. - Page 9 General safety instructions Risks in handling the machine The machine has been constructed to the state-of-the art and the recog- nised rules of safety. However, there may be risks and restrictions which occur when operating the machine • For the health and safety of the user or third persons, •...
-
Page 10: Representation Of Safety Symbols
General safety instructions Representation of safety symbols Safety instructions are indicated by the triangular safety symbol and the highlighted signal word. The signal word (DANGER, WARNING, CAU- TION) describes the gravity of the risk and has the following significance: DANGER Indicates an immediate high risk, which will result in death or ex- tremely serious physical injury (loss of body parts or long term damage) if not avoided. -
Page 11: Organisational Measures
General safety instructions Organisational measures The operator must provide the necessary personal protective equipment, such as: • Hearing protection • Protective glasses • Protective shoes • Protective suit • Skin protection, etc. The operation manual • Must always be kept at the place at which the machine is operated. •... -
Page 12: User Training
General safety instructions User training Only those people who have been trained and instructed may work with/on the machine. The operator must clearly specify the responsibili- ties of the people charged with operation, maintenance and repair work. People being trained may only work with/on the machine under the su- pervision of an experienced person. -
Page 13: Safety Measures In Normal Operation
General safety instructions Safety measures in normal operation Only operate the machine if all the safety and protection equipment is fully functional. Check the machine at least once a day for visible damage and check the function of the safety and protection equipment. Dangers from residual energy Note that there may be residual mechanical, hydraulic, pneumatic and elec- trical/electronic energy at the machine. -
Page 14: Spare And Wear Parts And Aids
Spare and wear parts and aids Immediately replace any machine parts which are not in a perfect state. AMAZONE spare and wear parts or the parts cleared Use only genuine by AMAZONEN-WERKE so that the operating permit retains its validity in accordance with national and international regulations. -
Page 15: Warning Symbols And Other Signs On The Machine
General safety instructions 2.13 Warning symbols and other signs on the machine 2.13.1 Positioning of warning symbols and other labels The following diagrams show the arrangement of the warning symbols on the machine PROFIHOPPER BAF0012.6 04.18... - Page 16 General safety instructions Always keep all the warning symbols of the machine clean and in a legi- ble state. Replace illegible warning symbols. You can obtain the warning symbols from your dealer using the order number (e.g. MD 075). PROFIHOPPER BAF0012.6 04.18...
- Page 17 General safety instructions Warning symbols - structure Warning symbols indicate dangers on the machine and warn against residual dangers. At these points, there are permanent or unexpected dangers. A warning symbol consists of two fields: Field 1 is a symbol describing the danger, surrounded by triangular safety sym- bol.
- Page 18 General safety instructions Order number and explanation Warning symbols MD 075 Risk of fingers and hands being cut or severed by rotating machine parts. This hazard can cause extremely serious injuries with the loss of body parts such as fingers or hands.
- Page 19 General safety instructions MD 081 Risk of any part of the body being crushed by machine parts descending unintentionally, hav- ing been raised via the lifting cylinder. This hazard can cause extremely serious injuries anywhere on the body, or even death. If machine parts have been raised, secure the lifting cylinder against lowering unintentionally, before entering the danger area beneath the raised ma-...
- Page 20 General safety instructions MD 096 Danger of infection to the whole body from liq- uids escaping at a high pressure (hydraulic fluid)! This danger will cause serious injuries over the whole body, if hydraulic fluid escaping at high pres- sure passes through the skin and into the body. Never attempt to plug leaks in hydraulic lines using your hand or fingers.
- Page 21 General safety instructions MD 107 Risk of the machine rolling over if the lateral inclination exceeds 22%. If the lateral inclination is too great, the machine could tip over and the driver could be trapped or run over by the machine. This hazard can cause extremely serious injuries anywhere on the body, or even death.
- Page 22 General safety instructions MD 184 The driver is advised to wear noise protection in order to prevent hearing damage. MD 115 The maximum operating pressure of the hydraulic system is 210 bar. MD 202 Placing the transport safeguard This danger can result in machine parts getting lost during transport and posing significant haz- ards for road traffic.
- Page 23 General safety instructions MD 231 Driving across the slope up to max. 22 %: • Use roll-over protection • Attach seat belt To pass through low clearance height on level ground: • Fold in roll-over protection • Do not put on seat belt PROFIHOPPER BAF0012.6 04.18...
-
Page 24: Dangers If The Safety Information Is Not Observed
General safety instructions 2.14 Dangers if the safety information is not observed Non-observance of the safety information • Can pose both a danger to people and also to the environment and machine. • Can lead to the loss of all warranty claims. Seen individually, non-compliance with the safety information could pose the following risks: •... -
Page 25: Safety Information For Users
General safety instructions 2.16 Safety information for users WARNING Risk of being crushed, cut, caught, drawn in or struck due to insuffi- cient traffic and operational safety! Before starting up the machine, always check it is safe to drive and oper- ate. -
Page 26: Hydraulic System
• Replace the hydraulic hose line if it is damaged or worn. Only use original AMAZONE hydraulic hose lines. • The hydraulic hose lines should not be used for longer than six years, including any storage time of maximum two years. Even with proper storage and approved use, hoses and hose connections are subject to natural ageing, thus limiting the length of use. -
Page 27: Electrical System
General safety instructions • Never attempt to plug leaks in hydraulic lines using your hand or fingers. Escaping high pressure fluid (hydraulic fluid) may pass through the skin and ingress into the body, causing serious injuries! If you are injured by hydraulic fluid, contact a doctor immediately. Danger of infection. -
Page 28: Safety Check Before Moving Off
General safety instructions 2.16.4 Safety check before moving off DANGER Check the function and safety of the following safety-relevant compo- nents each time before you move off: • Tyre pressure and tread condition • Seat switch operation • Oil and hydraulic lines for leaks and/or porosity •... -
Page 29: General Description Of The Machine
General description of the machine Areas of application The AMAZONE Profihopper is intended to be used for grass cutting and scarifying in public parks as well as sports fields and gardens, etc. It can be used to collect and chop foliage in the autumn. -
Page 30: Technical Data
General description of the machine Technical data Type PROFIHOPPER PH 1250 zDrive PH 1250 iDrive PH 1250 4WDi Hydrostatic, front wheel drive, Hydrostatic, front 2 hydro motors and wheel drive, Drive system 2 hydraulic pumps 4 hydro motors and 2 hydraulic pumps Lever steering;... -
Page 31: Noise Production Data
General description of the machine 3.5.1 Noise production data The emission value (noise level) applicable to the working area is: LpA = 90 dB(A). Measurements were taken under working conditions close to the driver's ear. Noise level in accordance with Decree 2000/14/CE: LwA = 105 dB(A). -
Page 32: Intended Use
General description of the machine Intended use The AMAZONE Profihopper can be used for the following operations: • Mowing and scarifying of green spaces as well as sports fields and gardens. • Picking up and chopping leaves. It is not intended to be combined with other machines, implements and superstructures. -
Page 33: Safe Distance
General description of the machine Safe distance It is forbidden to stand in the working area of the machine. The working area means a radius of 5 metres around the working machine. PROFIHOPPER BAF0012.6 04.18... -
Page 34: Transporting The Machine
Transporting the machine Transporting the machine Transport, storage If the machine should be loaded on a trailer, ramps with a gripping, non-slip surface and the same angle of inclination (16.7°≙ 30%) must be used. You must exercise particular care and drive slowly when manoeu- vring up onto a trailer or HGV. - Page 35 Transporting the machine Fire hazard! The machine must not be covered with a tarpaulin until the motor has completely cooled. Fire hazard! After concluding mowing tasks, the hopper must always be completely emptied. Fermenting mowed material can auto-ignite under certain conditions due to the the significant heat development. Danger of damaging the drive system! Do not push the machine if the motor is switched off! The fastening on the hood must be fixed tight!
-
Page 36: Taking Delivery Of The Machine
Taking delivery of the machine Taking delivery of the machine On receiving the machine, check to see if it was damaged during transport or if parts are missing. Replacements will only be made if claims are submitted promptly to the haulage company. Please check that all the parts listed on the despatch note have been delivered. -
Page 37: Instrument Panel And Controls
Instrument panel and controls Instrument panel and controls Control panel and operating elements 6.1.1 Steering The machine is steered by the front wheels under the driver's seat. Steering wheel The steering wheel with steering knob enable comfortable on-handed steering. Lever steering (1) Two-part steering lever To change the direction to the left, pull the left lever to the rear. -
Page 38: Control Panel
Instrument panel and controls 6.1.2 Control panel (1) Maintenance required (after 50 hours and every 125 hours) (2) Turn signal (3) Pre-heating indicator of the diesel engine (4) Oil pressure control lamp → When the lamp lights up, switch off the engine immediately and check the oil level, and refill oil if necessary. - Page 39 Instrument panel and controls because the feed auger is no longer rotating (e.g. blockage due to foreign objects). (11) Hopper fill level → Flashes when the hopper is full. (12) Turn signal (13) Seat contact switch defective (14) Hopper position control lamp Light off →...
-
Page 40: Control Elements
Instrument panel and controls 6.1.3 Control elements (1) Engine speed setting lever → To start and stop the engine, set a low engine speed. → During operation, set the maximum engine speed. (2) Emptying the hopper → To empty the hopper, pull the lever to the rear, and to move it into working position, push the lever to the front. - Page 41 Instrument panel and controls (11) Warning beacon (optional) (12) Hood locking mechanism The hood is locked mechanically and is only opened with the aid of the ignition key. For this purpose, place the head of the key on the slotted screwdriver and turn to the right by less than 45°.
-
Page 42: Accelerator Pedal And Parking Brake
Instrument panel and controls 6.1.4 Accelerator pedal and parking brake WARNING • Risk of accident when the accelerator pedal is abruptly ac- tuated! • Risk of accident when the actuation is abruptly released (rapidly removing the foot from the pedal / pushing the pe- dal in the opposite direction). - Page 43 Instrument panel and controls Accelerator pedal The accelerator pedal is used to accelerate and decelerate the ma- chine. • Acceleration: carefully increase the pedal pressure. • Deceleration: carefully decrease the pedal pressure. • Rapid deceleration: take foot off the pedal. •...
-
Page 44: Roll-Over Protection
Instrument panel and controls Roll-over protection WARNING Always use the roll-over protection when driving with the machine! To pass under low clearance heights, the roll-over protection can be temporarily folded down. • In this case, do not put on the seat belt. -
Page 45: Drivers Seat
Instrument panel and controls Drivers seat CAUTION The seat switch must be checked for proper function before each departure! If there is a defect or delayed triggering time, the service partner must be contacted immediately! 6.3.1 Standard driver's seat • Längseinstellung Den Hebel (1) nach links drehen um den Sitz in die gewünschte Position zu bringen. -
Page 46: Deluxe" Driver's Seat
Instrument panel and controls 6.3.2 "Deluxe" driver's seat Grammer seat with air suspension and heater (1) Handle for horizontal adjustment (2) Handle for weight adjustment (3) Handle for backrest adjustment (4) Hand wheel for armrest tilt adjustment (5) Switch for seat heater (6) Hand wheel for lumbar support PROFIHOPPER BAF0012.6 04.18... -
Page 47: Amazone Cooling System - Self-Cleaning Cooling System
Instrument panel and controls MAZONE ooling ystem - self-cleaning cooling system The AMAZONE PROFIHOPPER is available with an optional self- cleaning cooling system (AMAZONE Cooling System) for removing plant material blocking the radiator grill, especially when mulching. The self-cleaning system contains: •... -
Page 48: Starting And Using The Machine
Starting and using the machine Starting and using the machine WARNING Danger of being entangled and drawn in and danger from foreign objects being caught and thrown in the danger area of the driven cutting deck! • Ensure that all other persons also maintain a sufficient safety distance from the danger area of the implement. -
Page 49: Tyre Pressure
Starting and using the machine Tyre pressure Always inflate the tyres to the specified pressure. Pressures other than those recommended may impair driving characteristics. Tyre pressure: front: 1.5 bar rear: 1.5 bar Mower unit tyres: 1.5 bar PROFIHOPPER BAF0012.6 04.18... -
Page 50: Before Starting
Starting and using the machine Before starting Engine oil Check the following before every use: Check oil level (Fig. 7.3-1) and top up if necessary (Fig. 7.3-2). Oil grade: 10W40 API-CF diesel engine oil 3,4 l Total filling amount: Hydrostat hydraulic fluid: The oil tank is integrated into the frame and is located on the left side of the machine. - Page 51 Starting and using the machine Fuel (diesel) The fuel tank is on the right side of the machine. It is easy to access. Opening the screw connection and folding down the protective grille (Fig.7.3-4). Filling the tank through by opening the cap. (Fig.7.3-5). PROFIHOPPER BAF0012.6 04.18...
- Page 52 Starting and using the machine The fuel tank is transparent so you can easily see the level. Make sure there is always enough fuel in the tank so it does not run dry. Use DIESEL fuel according the norm ISO 8217 DMX or EN590:96 only! The use of another fuel (e.g.
-
Page 53: Starting And Stopping The Engine
Starting and using the machine Starting and stopping the engine To start the engine, sit on the drivers seat and proceed as follows: 1. Make sure the parking brake is on. 2. Do not operate the accelerator pedal or Steering wheel. 3. -
Page 54: Driving The Machine
Starting and using the machine Driving the machine • The roll-over protection must be folded up! • Make sure the cutting deck is lifted before road transport. • Abrupt actuation of the accelerator pedal causes unexpected strong acceleration or deceleration. On slopes, the motor must be operated at full throttle (to prevent cavitation damage to the pump). -
Page 55: Mowing
Starting and using the machine Mowing WARNING • Always use the roll-over protection when driving with the machine! • To pass under low clearance heights, the roll-over protection can be temporarily folded down. ο In this case, do not put on the seat belt. This way, you can jump off in case the machine tips. - Page 56 Starting and using the machine • Slowly press on the foot throttle until you have reached the de- sired driving speed. • Adapt the driving speed to the mowing conditions. After finishing work: 9. Stop the cutting deck drive. 10. Lift the cutting deck. During operation, check the cooling air grid for contamination and plant residues.
-
Page 57: Emptying The Hopper
Starting and using the machine Emptying the hopper A fill level signal sounds when the hopper is full. Empty the hopper when you hear this signal. Do not overfill the hopper; you could damage the conveyor system. When emptying, do not exceed the slope incline of 5° ≙ 8.75%! Emptying at ground level 1. -
Page 58: Cutting, Scarifying And Mulching
Cutting, scarifying and mulching Cutting, scarifying and mulching CAUTION The period from the shutdown of the engine to a complete stop of the rotor is approx 5-7 seconds. The mower deck cover must only be opened when the rotor has stopped moving. - Page 59 Cutting, scarifying and mulching The cutting and scarifying blades can be swapped without using tools (see Fig. 8.1). MOWING Profihopper is fitted with 36 pairs of wing blades as standard 9 pairs blades x 4 rows = 36 pairs blades / rotor ...
- Page 60 Cutting, scarifying and mulching If required, the wing blades can be replaced by different blades. No tools are needed to hang the blades on the clip bolts. WING BLADES LONG H77 Operational area: Lawn; Golf course; Park; Public green spaces; Cutting flowers and eco- meadows;...
- Page 61 Cutting, scarifying and mulching WING BLADES H60 WITH SCARIFYING BLADES Operational area: Foliage collection; Paddocks; Scarifying golf courses / bowling greens; Weeding lawns MOWING BLADES (“Y”- SHAPED) Operational area: Mulch ONLY (These require less power from the machine but are re- stricted in their collection capabilities.) NOTE It is essential for the rotor to be equipped with one of the above...
- Page 62 Cutting, scarifying and mulching Wear limit of suspended tools: The blade fasteners and clip bolts must be checked regularly for wear. Heavily worn tools must be promptly replaced. Figs. 8.1-2 and 8.1-3 show the limits of wear for the mounting brackets. used used CAUTION...
-
Page 63: Adjusting The Baffle Plate
Cutting, scarifying and mulching Adjusting the baffle plate There is a baffle plate in front of the mowing unit (Fig. 8.2-1) which can be adjusted to improve cut quality when mowing. The baffle plate is set for scarifying at the factory. Setting options: •... -
Page 64: Adjusting The Cutting Height
Cutting, scarifying and mulching Adjusting the cutting height To adjust the cutting height, proceed as follows: • Open the retaining hook and remove the crank handle (Fig. 8.3-1), • Turn the lever (Fig. 8.3-2). • Turn to set the desired cutting height (Fig. 8.3-3), •... - Page 65 Cutting, scarifying and mulching The mower unit has a cutting height gauge. PROFIHOPPER BAF0012.6 04.18...
- Page 66 Cutting, scarifying and mulching CAUTION The lever must be returned to the locked position. To do so, turn the lever, place it on the pin and lock with the retain- ing hook (Fig. 8.3-4). PROFIHOPPER BAF0012.6 04.18...
-
Page 67: Collection System
Cutting, scarifying and mulching Collection system The cuttings are collected and are conveyed by worm conveyors into the hopper where they are compressed. The drive belts on both worm con- veyors are fitted with an overload switch in case they become blocked with foreign bodies. - Page 68 Cutting, scarifying and mulching 1. Open the protective cover on the belt guard (Fig. 8.4-3). 2. Insert the crank handle over the end of the transverse worm conveyor (Fig. 8.4-4). 3. Release the foreign matter by turning the worm and remove. Cleaning the longitudinal worm: •...
- Page 69 Cutting, scarifying and mulching CAUTION The safety bracket must be in place any time work is carried out under the hopper. This prevents the hopper from lowering accidentally. • Release the foreign matter by turning the worm and remove (Fig. 8.4-6).
-
Page 70: Mulching
Cutting, scarifying and mulching Mulching The mower comes with an attachment that allows you to mow and mulch the cut grass without collecting it. To do so, take the mulch flap from the cover and place it in the rotor box (Fig. -
Page 71: Options
Options Options Lights This additional equipment is required before an operator's permit can be issued. The lighting kit contains: • front turn indicators • rear turn indicators, incl. fittings • front headlamps • rear lights • 1 horn • 1 control unit that is fitted next to the driver's seat Faults 10.1 Seat contact switch defective... -
Page 72: Towing The Machine
Faults 10.2 Towing the machine • Secure the machine against rolling away! • Only tow or push the machine for short distances. • Before towing / pushing the machine, open the bypass of the hydraulic pumps. → Otherwise, there can be damage to the machine. •... -
Page 73: Maintenance
Maintenance Maintenance CAUTION Before performing any maintenance, make sure the machine is switched off, the parking brake engaged and the key removed from the ignition. ATTENTION The period from the shutdown of the engine to a complete stop of the rotor is approx 5-7 seconds. The mower deck cover must only be opened when the rotor has stopped moving. -
Page 74: Rotor Condition
Maintenance 11.3 Rotor condition CAUTION Missing or wrongly aligned blades can throw the machine out of balance and damage it. Always check the position/condition of the blades. There are some spare blades in the machine's toolkit. If the rotor starts to vibrate strongly even though the blades are fitted correctly, contact Service. -
Page 75: Oil Level - Oil Change
Maintenance 11.4.1 Oil level - oil change See LOMBARDINI engine operating instructions. 11.4.2 Engine oil filter See LOMBARDINI engine operating instructions. 11.4.3 Air filter Clean the air filter with compressed air at least once a week. If conditions are dry and dusty, clean the filter daily. Replace faulty filter cartridges immediately. -
Page 76: Fuel Filter
Maintenance The filter cartridge should be replaced every 300 operating hours or at least once a year. To fit the filters, proceed in the reverse order (Fig. 10.3.3-2). The air filter has a pre-filter that must be cleaned each day. •... -
Page 77: Cooling System
Maintenance 11.4.5 Cooling system The radiator has a protective grille that also serves as a prefilter for the cooling air. This filter and the radiator must be cleaned regularly with compressed air to prevent the engine from overheating. Cleaning with water could block the radiator fins. -
Page 78: Power Transmission Belts
Maintenance Fig. 10.3.5-1 The coolant level should be checked weekly. The coolant remains liquid to - 30°C. 11.4.6 Power transmission belts See LOMBARDINI engine operating instructions. PROFIHOPPER BAF0012.6 04.18... -
Page 79: Hydrostatic Drive
Maintenance 11.5 Hydrostatic drive 11.5.1 Hydraulic oil cooling system The oil for the hydraulic system must be changed after each 500 operat- ing hours. The drain plug is located under the hydraulic tank. PH 1250 zDrive PH 1250 iDrive PH 1250 4WDi 15 litres 15 litres 18 litres... - Page 80 Maintenance Risk of explosion, explosive gas. Do not place metal items on the battery. Risk of short-circuits. Risk of chemical burns. Battery acid is caustic. It must not come into contact with skin, eyes or clothing. Rinse away splashed acid with clear fresh water. Consult a doctor if necessary.
-
Page 81: Fuse Box Under The Seat Support
Maintenance 11.7 Fuse box under the seat support The fuses are located in the electric switch box under the seat support. Undo the two screws to open the box. Replacement fuses can be found in the accessories kit under the seat support. Elimi- nate the cause of the fuse melting in all cases. -
Page 82: Lubrication Points
Maintenance 11.8 Lubrication points The following locations should be lubricated regularly or every time the machine is thoroughly cleaned, in order to keep your Amazone Profihop- per working in top condition. 11.8.1 Running gear Main drive shaft • Main drive shaft bearings (Fig. 10.6.1-1) -
Page 83: Mower Unit
Maintenance Rear wheels • Rear wheel bearings (Fig. 10.6.1-5) 11.8.2 Mower unit • Overload safety (every 150 operating hours only) (Fig. 10.6.2-1) CAUTION Excess grease can easily reach the lower protection plate on the belt drives and damage it (Fig. 10.6.2-2). •... - Page 84 Maintenance PROFIHOPPER BAF0012.6 04.18...
- Page 85 Maintenance • Mower unit drive shaft bearing (Fig. 10.6.2-6 and Fig. 10.6.2-7) There are 2 lubrication nipples of the drive shaft bearings. PROFIHOPPER BAF0012.6 04.18...
- Page 86 Maintenance • Longitudinal worm drive shaft bearings (Fig. 10.6.2-8) • Longitudinal work drive cross-linkage (Fig. 10.6.2-9) PROFIHOPPER BAF0012.6 04.18...
- Page 87 Maintenance • Transverse worm bearings (Fig. 10.6.2-10 + Fig. 10.6.2-11) • Rotor bearings (Fig. 10.6.2-11 + Fig. 10.6.2-12) b (= trans- verse worm bearing) a (= rotor) PROFIHOPPER BAF0012.6 04.18...
- Page 88 Maintenance • Height adjustment (Fig. 10.6.2-13) PROFIHOPPER BAF0012.6 04.18...
-
Page 89: Rear Wheel Shock Absorbers
Maintenance 11.9 Rear wheel shock absorbers Workshop work Readjustment of the V-belts must only be carried out by a certified spe- cialist workshop Drive No. belts Static tension Natural frequency* Init. installation After running-in 250 N – 300 N 200 N – 350 N Fan drive 156 Hz –... -
Page 90: Long Periods Without Use, Overwintering
Maintenance 11.10 Long periods without use, overwintering • Clean the machine thoroughly. • Carry out all lubrication. • Empty the fuel tank. • Disconnect the battery (see 10.5). • Store the battery in a dry, cool and frost-free place. • Check the condition of the V-belts. -
Page 91: Maintenance Plan
Maintenance 11.11 Maintenance plan PROFIHOPPER BAF0012.6 04.18... -
Page 92: Maintenance Reports
Maintenance 11.12 Maintenance reports MAINTENANCE REPORT MAINTENANCE REPORT Date: ________ Mechanic: __________________ Date: _________ Mechanic: _________________ Report no.: _______________________________ Report no.: ______________________________ Operating hours: __________________________ Operating hours: __________________________ Engine oil change Engine oil change ... - Page 93 Maintenance MAINTENANCE REPORT MAINTENANCE REPORT Date: _________ Mechanic: _________________ Date:_________ Mechanic: _________________ Report no.:_______________________________ Report no.: ______________________________ Operating hours: __________________________ Operating hours: _________________________ Engine oil change Engine oil change Hydraulic oil change Hydraulic oil change ...
- Page 94 Maintenance MAINTENANCE REPORT MAINTENANCE REPORT Date: ________ Mechanic: __________________ Date: _________ Mechanic: _________________ Report no.: _______________________________ Report no.: ______________________________ Operating hours: __________________________ Operating hours: __________________________ Engine oil change Engine oil change Hydraulic oil change Hydraulic oil change ...
- Page 95 Maintenance MAINTENANCE REPORT MAINTENANCE REPORT Date: _________ Mechanic: _________________ Date:_________ Mechanic: _________________ Report no.:_______________________________ Report no.: ______________________________ Operating hours: __________________________ Operating hours: _________________________ Engine oil change Engine oil change Hydraulic oil change Hydraulic oil change ...
