- Page 1 OWNER'S MANUAL WASHING MACHINE Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. ENGLISH UWD1CW www.lg.com MFL71781391 Copyright © 2022 LG Electronics Inc. All Rights Reserved. Rev.00_061622...
-
Page 2: Table Of Contents
Before Use Sorting Laundry & Loading the Washer Adding Cleaning Products Control Panel and Wash Cycles Options Settings 27 SMART FUNCTIONS Using LG ThinQ Application Smart Diagnosis Function 28 MAINTENANCE Regular Cleaning Periodic Maintenance 32 TROUBLESHOOTING Before Calling for Service... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Safety Messages Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. - Page 4 2009. A special kit is also available to allow use under an LG top-load-matching dryer manufactured in 2016 or later. Do not use the pedestal washer as a standalone unit, under an LG top- loading washer, or under any other washer or dryer.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS • Do not modify or extend the power cord. • If the electrical supply cord is damaged, it must only be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard. •...
- Page 6 IMPORTANT SAFETY INSTRUCTIONS • The appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.
-
Page 7: Caution Statements
IMPORTANT SAFETY INSTRUCTIONS CAUTION STATEMENTS CAUTION • To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: Installation • Install the product on a firm and level floor. Operation •... -
Page 8: Product Overview
• For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction, property damage or bodily injury caused by the use of separately purchased unauthorized components, parts, or non-LG products. Front View... - Page 9 PRODUCT OVERVIEW Long Sheet Metal Screws (18 EA) NOTE Short Sheet Metal Screws (5 EA) • Contact LG Customer Service at 1-800-984-6306 if any accessories are missing or to purchase Non-skid Pads (2 EA) accessories. For a list of LG front-loading...
-
Page 10: Installation
LG front-loading washer manufactured after 2009. A special kit is also available to allow use under an LG top-load- matching dryer manufactured in 2016 or later. Do not use the pedestal washer as a standalone unit, under an LG top-loading washer, or under any other washer or dryer. -
Page 11: Stacking Pedestal Washer And Front-Loading Washer
INSTALLATION • If the floor has too much flex, reinforce it to Dimensions and Clearances make it more rigid. If the floor is not solid, it may cause severe vibration and noise. 23 5/8" (60 cm) Power Outlet 43 3/8" (110 cm) •... - Page 12 12 INSTALLATION Remove and save the foam block for future use. • If the pedestal washer must be moved in the future, the foam block will help prevent damage to the pedestal washer during transportation. • To prevent damage, do not remove the foam block until the pedestal washer is at the final location.
-
Page 13: Connecting The Water Inlet Hoses
• Do not reuse old hoses. Use only new hoses when installing the washer. Old hoses could leak or burst causing flooding and property damage. Contact an LG Customer Information Center for assistance in buying hoses. NOTE • Periodically check the hoses for cracks, leaks, and wear, and replace the hoses every five years. - Page 14 14 INSTALLATION Front-Loading Washer and Pedestal Washer with Dryer Connect the water supply hoses. • Connect the water inlet hoses to the hot and cold water faucets tightly by hand and then tighten another 2/3 turn with pliers. • Connect the blue hose to the cold water faucet and the red hose to the hot water faucet.
-
Page 15: Connecting The Drain Hose
INSTALLATION Front-Loading Washer and Pedestal Washer with Dryer Connecting the Drain Hose Overview of Connections Front-Loading Washer and Pedestal Connect the drain hose to either a standpipe or Washer with Hybrid Dryer laundry tub. WARNING • The drain hose should always be properly secured. -
Page 16: Leveling The Washer
16 INSTALLATION Connecting the Drain Connector Adjust the leveling feet on the pedestal washer. Insert the included band clamps on to the • Turn all 4 leveling feet in one direction to ends of the two drain hoses. raise the washer or the other direction to lower it. - Page 17 INSTALLATION leveling feet, place them under the back leveling feet. This side up Remove backing Recheck the washer’s levelness. • Push or rock the top edges of the washer gently to make sure the washer does not rock. If the washer rocks, level the washer again.
-
Page 18: Operation
18 OPERATION OPERATION Before Use WARNING • To reduce the risk of fire, electric shock, or injury to persons, read the SAFETY INSTRUCTIONS before operating this appliance. Operation Overview Select Pedestal Washer on the quick circle display of the front-loading washer, then choose the desired cycle. -
Page 19: Sorting Laundry & Loading The Washer
OPERATION Sorting Laundry & Loading Fabric Type Delicate articles should not be mixed with heavy or the Washer sturdy fabric types. Washing heavy fabrics with delicates can result in poor wash performance for Grouping Similar Items the heavy fabrics and possible damage to the delicates. -
Page 20: Adding Cleaning Products
20 OPERATION Loading the Washer Bulky Items • Large, bulky items, such as a blanket, comforter, • Check and empty pockets. Paper clips, coins, or bedspread, should be washed individually in matches, etc. can damage clothing and the the full-size washer. washer. - Page 21 OPERATION detergent buildup in clothing, and residue NOTE buildup that can contribute to odors in the washer. • Less detergent is required for lightly soiled items. Please use the appropriate amount of NOTE detergent in the Mini Washer. If you use too much detergent, excessive bubbles will remain •...
-
Page 22: Control Panel And Wash Cycles
22 OPERATION Control Panel and Wash Cycles Control Panel Features on Main Washer Cycle Button • Cycles are available according to laundry type. Display • The display shows the cycle status and estimated time remaining. Start/Pause Button • Press and hold this button to start the selected cycle. •... - Page 23 OPERATION • Once the desired cycle has been selected, the standard presets will appear in the display. NOTE • To protect your clothing, not all settings are available on all cycle selections. Time and Status Display • The display shows the settings, estimated time remaining, options, and status messages for the washer.
- Page 24 24 OPERATION • If the washer is not functioning properly, all LEDs will blink. Open the drawer and check the error message on the display. Cycle Guide The wash cycles are designed for specific types of wash loads. Select the cycle that best matches the load contents for maximum wash performance and fabric care.
-
Page 25: Options
OPERATION Options NOTE Your washer includes several additional cycle • The function does not lock the door. options to customize cycles to meet your individual • Once this function is set, all buttons are locked needs. except the Power button. •... -
Page 26: Settings
26 OPERATION Settings Washer Pairing (Optional) For convenience, the Mini Washer can be paired with the Main Washer and operated from the Main Washer's control panel. • Use the Main Washer's control panel to pair or unpair the washers. Press the Power button. Swipe the display down to see the Settings screen and select More Settings. -
Page 27: Smart Functions
Using Audible Diagnosis to Diagnose Issues Follow the instructions below to use the audible diagnosis method. • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application. -
Page 28: Maintenance
28 MAINTENANCE MAINTENANCE WARNING • To reduce the risk of fire, electric shock, or injury to persons, read this entire owner’s manual, including the SAFETY INSTRUCTIONS, before operating this appliance. • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electric shock, or death. - Page 29 MAINTENANCE • For other drum cleaning products, follow • After descaling, always run the Tub Clean cycle the cleaner manufacturer’s instructions and before washing clothing. recommendations. • Mineral scale and other spots may be removed • Do not use any more than 1/4 cup of liquid from the stainless steel drum using a soft cloth bleach.
- Page 30 • If using a lime scale remover, follow the NOTE manufacturer’s instructions. Be careful not • For a replacement filter, visit the lg.com website to damage the filters while cleaning them. or contact an LG Customer Information Center. Rinse filters thoroughly and press them back into place.
- Page 31 MAINTENANCE Turn off the water faucets. Disconnect the water inlet hoses. Drain any water from the hoses. Plug the power cord into a properly grounded electrical outlet. Add 1/4 gallon of nontoxic recreational vehicle (RV) antifreeze to the empty drum and close the lid.
-
Page 32: Troubleshooting
Yes. The pedestal washer is designed to operate simultaneously under LG manufactured front- loading washers produced after 2009. It is not designed for operation under LG top-loading washers, LG dryers, non-LG manufactured appliances, or as a standalone unit. For more information regarding compatibility, visit the LG website at www.lg.com. - Page 33 TROUBLESHOOTING Error Messages Problem Possible Cause & Solution The drawer is not secured. • Close and secure the drawer. If the message keeps appearing, unplug the power cord and DRAWER OPEN call for service. ERROR The lid is not secured. •...
- Page 34 • The pedestal washer will not operate as a standalone unit. It must be stacked under a full- STACKING ERROR size LG appliance. Stacking switch is not working properly. • The stacking switch will not operate properly if the unit is stacked under a non-LG appliance, or an LG appliance manufactured before 2009. Noises Problem Possible Cause &...
- Page 35 TROUBLESHOOTING Problem Possible Cause & Solution Rattling and Foreign objects, such as keys, coins, or safety pins may be in the drum. clanking noise • Stop the appliance and check the drum for foreign objects. If the noise continues after the appliance is restarted, call for service.
- Page 36 36 TROUBLESHOOTING Problem Possible Cause & Solution Excessive sudsing Too much detergent or incorrect detergent • HE detergents are formulated specifically for HE (High-Efficiency) washers and contain suds reducing agents. Only use detergent with the HE (High-Efficiency) logo. • For detergent quantities refer to About Detergent Use in OPERATION. If sudsing or detergent residue continues to be an issue, add an extra rinse.
- Page 37 TROUBLESHOOTING Problem Possible Cause & Solution Washer is not filling Filter is clogged. properly. • Make sure that the inlet filters on the fill valves are not clogged. Refer to Cleaning the Water Inlet Filters in MAINTENANCE. Inlet hoses may be kinked. •...
- Page 38 38 TROUBLESHOOTING Problem Possible Cause & Solution Previously set stains. Poor stain removal • Articles that have previously been washed may have stains that have been set. These stains may be difficult to remove and may require hand washing or pre-treating to aid in stain removal.
-
Page 39: Limited Warranty
Should your LG Washer (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product (“You”) and applies only when purchased lawfully and used within the United States including U.S. - Page 40 Or by mail: LG Electronics, P.O. Box 240007, Huntsville, AL 35813 ATTN: Customer Service PROCEDURE FOR RESOLVING DISPUTES: ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION.
- Page 41 Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department-Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632.
- Page 42 (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https:// www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on “Find My Model & Serial Number”).
- Page 43 Memo...
- Page 44 44 Memo...
- Page 45 Memo...
- Page 46 46 Memo...
- Page 47 Memo...
- Page 48 LG Customer Information Center For inquiries or comments, visit www.lg.com or call: U.S.A. 1-800-243-0000 1-888-542-2623 CANADA Register your product Online! www.lg.com...
Need help?
Do you have a question about the Signature SideKick UWD1CW and is the answer not in the manual?
Questions and answers

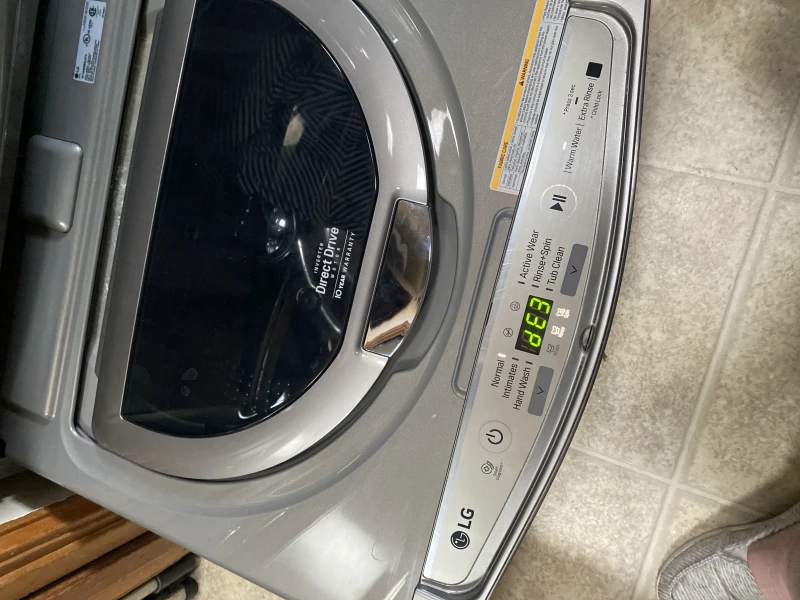

It’s DE 3 and DE 1
The DE3 error code means the lid is not secured. To fix it, close and secure the lid. If the message keeps appearing, unplug the power cord and call for service.
The DE1 error code means the drawer is not secured. To fix it, close and secure the drawer. If the message keeps appearing, unplug the power cord and call for service.
This answer is automatically generated

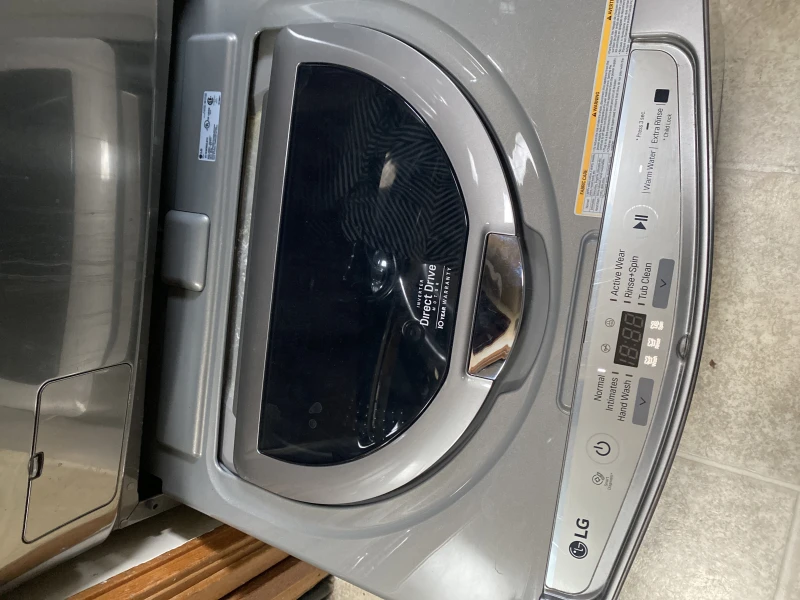

Lg sidekick DE3 or DE. The Door is secure. Only one blouse in the washer. Will not wash.
The LG Signature SideKick UWD1CW may not wash a single blouse because the control panel is locked. When the controls are locked, the display alternates between showing "CL" and the remaining time, and the function must be deactivated before other options can be accessed. To unlock the control panel, slide open the drawer, turn on the power, and press and hold the Rinse+Spin button for 3 seconds.
