Autel AutoLink AL629 Quick Reference Manual

Email: sales@autel.com
We b : www.autel.com
Thank you for purchasing AUTEL tool. Manufactured to a high standard, our tool will, if used according to these
instructions and properly maintained, give you years of trouble-free performance.

Getting Started

IMPORTANT: Before operating or maintaining this unit, please read these instructions carefully. Use this unit correctly and properly.
Failure to do so may cause damage and/or personal injury and will void the product warranty.
1
Scan QR Code to visit our website at
www.autel.com.
Create an Autel ID and register the
product with device's SN and password.
Please download the Maxi PC Suite from
www.autel.com > Support & Updates > Firmware & Downloads > Update Client, and install to your
Windows-based computer.

Software Update and Delete

1
Hold the left scroll button on the tool and
connect the tool with the computer using
the included USB cable.
Run the Maxi PC Suite. Wait for the Log In
window to display.

Data Printing

Connect the device to the computer with the USB cable supplied.
Run Autel Printer on the computer which is installed after the installation of Maxi PC Suite.
Select Playback function in the Main Screen of the tool. On the data menu screen, use the UP/DOWN scroll button to select the data you want to print.
Wait for the review window to display, and then select Print function.
The selected data will display on the textbox of the Autel Printer. By selecting the function keys on the right, you could execute the following operations:
Print – print all data in the textbox. ( A printer should be connected to the computer. )
Edit – display an editable NOTEPAD window with recorded data.
Copy – copy data in the textbox to the clipboard.
Clear – delete data in the textbox.
Exit – quit the operation.
0049 (0) 61032000522 (Europe) / (+507) 308-7566 (South America) / 03 9480 2978 / +61 476293327 (Australia)
2
Connect the OBD II cable' s female
adapter to the AutoLink AL629.
Tighten the captive screws.
2
Enter your Autel ID and password and wait
for the Update window to display. If you
forget your password, click the [Forget
Password?] link to our website and retrieve
your password. Or click Sign up to create
an Autel ID to continue.
Select tool and serial number, click OK to
continue.
For service and support, please contact us.
http://pro.autel.com / www.autel.com / support@autel.com
0086-755-86147779 (China HQ) / 1-855-288-3587/1-855-AUTELUS (North America)
© Autel Intelligent Technology Corp., Ltd. All Rights Reserved.
Quick Reference Guide
3
Connect the OBD II cable's 16-pin male
adapter to the vehicle' s DLC which is
generally located under the vehicle dash.
The device will be automatically powered
up.
3
In the window, select the appropri-
Update
ate files to install.

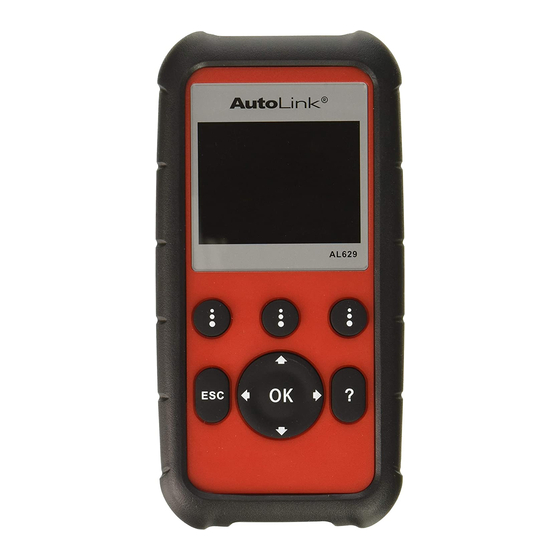

AutoLink AL629
4
Your AutoLink AL629 is now ready to work.
4
Click on the Installed tag and the list of
installed programs will display.
Select the program(s) you want to delete.
