JBL Endurance Dive Headphones Manual

WHAT'S IN THE BOX

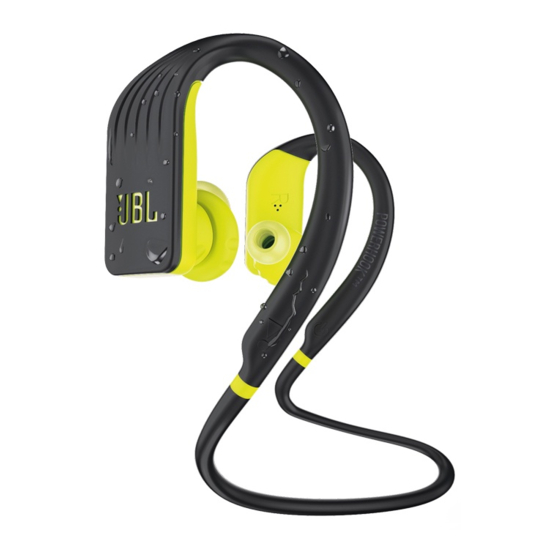

Endurance DIVE

Ear tips

Enhancers

USB Data Charging cable

Warranty card, Warning card, Safety sheet, QSG, Pouch

SELECT YOUR SIZE

ATTACH EAR TIP ENHANCERS

Clip the eartip onto the earphone.

TWISTLOCK™ TECHNOLOGY

Insert the earphones downwards into your ear. Twist backwards to lock in place. Adjust for comfort.

POUCH

Step 1

Step 2

Step 3

TOUCH BUTTON COMMAND

Music Control

Phone Control

Volume Control

Mode Control

The mode at switch on will be the same as the mode when switched off.

WATERPROOF

Use MP3 mode and lock touch control before submerging.

Shake after use to remove water

Note: Bluetooth does not work under water. You can enjoy MP3 music up to 30 minutes and to a depth of 1 meter underwater.

POWER/PAIR/CHARGE

POWERHOOK™ - Automatic Power ON/OFF

If connecting for the first time, the headphone will enter pairing mode automatically after it is powered on.

Pairing a new device

When connected to a device. Tap once, tap again and hold for 5 seconds, to bring the earphone into pairing mode.

Charging Port & Battery Status

MP3 FUNCTION

Add / Remove songs

Use USB data cable provided. Stores 1GB, up to 200+ songs and supports MP3 only. In MP3 mode, songs are always played in random sequence.

LED BEHAVIORS

SPECIFICATIONS

• Transducer: 10mm
• Frequency response: 20Hz-20kHz
• Signal-to-noise ratio: 85dB
• Maximum SPL: 102dBSPL@1k Hz
• Sensitivity @1kHz dBFS/pa: -20dB
• Impedance: 16ohm
• Bluetooth Max Output Power: 4dBm
• Bluetooth transmitter modulation: GFSK, π/4DQPSK,8DPSK
• Bluetooth transmitter frequency range: 2.402GHz-2.48GHz
• Bluetooth profile: HFP v1.6, A2DP v1.3, AVRCP v1.5
• Bluetooth version: V4.2
• Battery type: Lithium-ion polymer (3.7V, 120mAh)
• Charging Time: 2H
• Play time with Bluetooth on: up to 8H
• Talk time with Bluetooth on: up to 7H

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
