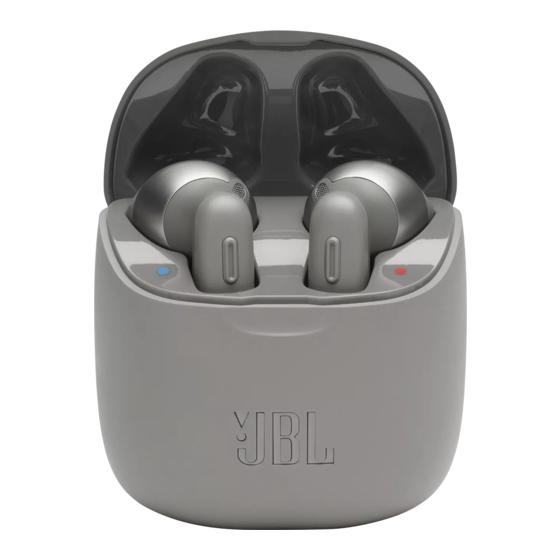

JBL TUNE 220TWS Manual
- Quick start manual (24 pages) ,
- Quick start manual (27 pages)
Advertisement
WHAT'S IN THE BOX
HOW TO WEAR
FIRST TIME USE
POWER ON & CONNECT
PAIRING
POWER OFF
MANUAL CONTROLS
POWER ON & CONNECT TO DEVICE
CONNECTING
POWER ON
POWER OFF
BUTTON COMMAND
CHARGING
LED BEHAVIORS
TECH SPEC
Driver Size: 12 mm Dynamic driver
Frequency Response: 20 Hz – 20 kHz
Sensitivity: 105 dB SPL
Maximum SPL: 98 dB SPL
Microphone sensitivity: -30 dBV@1 kHz/Pa
Impedance: 32 ohm
Bluetooth transmitted power: 12 dBm
Bluetooth transmitted modulation: GFSK/ π/4DQPSK/ 8DPSK
Bluetooth frequency: 2.402 GHz – 2.48 GHz
Bluetooth profile version: A2DP 1.3, AVRCP 1.5, HFP 1.6
Bluetooth version: 5.0
Headset battery type: Lithium-ion battery (22 mAh / 3.85 V )
Charging case battery type: Lithium-ion battery (410 mAh / 3.85 V )
Power supply: 5 V ⎓ 1.0 A
Charging time: <2 hrs from empty
Music playtime with BT on: 3 hrs
Total music playtime with charging case: 19 hrs
Weight: 57 g
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
NOTE: The maximum operating temperature of the product is 45°C
