Inserting the Brackets

1.2

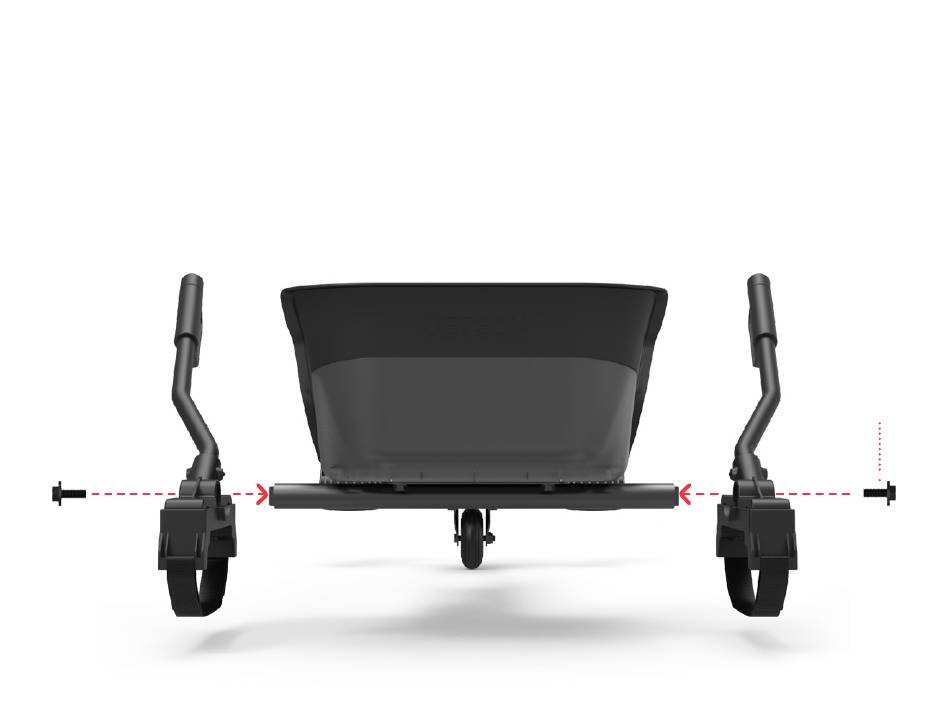

• INSERT RIGHT BRACKET INTO RIGHT SIDE OF THE REAR HORIZONTAL AXIS.
• SCREW BRACKET IN PLACE USING BOLT (D).
• INSERT LEFT BRACKET INTO LEFT SIDE OF THE REAR HORIZONTAL AXIS.
• SCREW BRACKET IN PLACE USING BOLT.
NOTE: BE CAREFUL NOT TO OVER-TIGHTEN THE BOLTS. DOING SO MAY
CAUSE THE BRACKETS TO CRACK.
12
BOLT (D)
