LYSON GBS-1 Classic Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Instructions Manual
GBS-1 Classic
Przedsiębiorstwo Pszczelarskie Tomasz Łysoń
Spółka z o.o. Spółka Komandytowa
34-125 Sułkowice, ul. Racławicka 162,
Polska www.lyson.com.pl, email;
lyson@lyson.com.pl
Siedziba Firmy Klecza Dolna 148, 34-124 Klecza
Górna
KOD
PIN

Advertisement

loading
Need help?

Need help?

Do you have a question about the GBS-1 Classic and is the answer not in the manual?

Questions and answers

Related Manuals for LYSON GBS-1 Classic

Summary of Contents for LYSON GBS-1 Classic

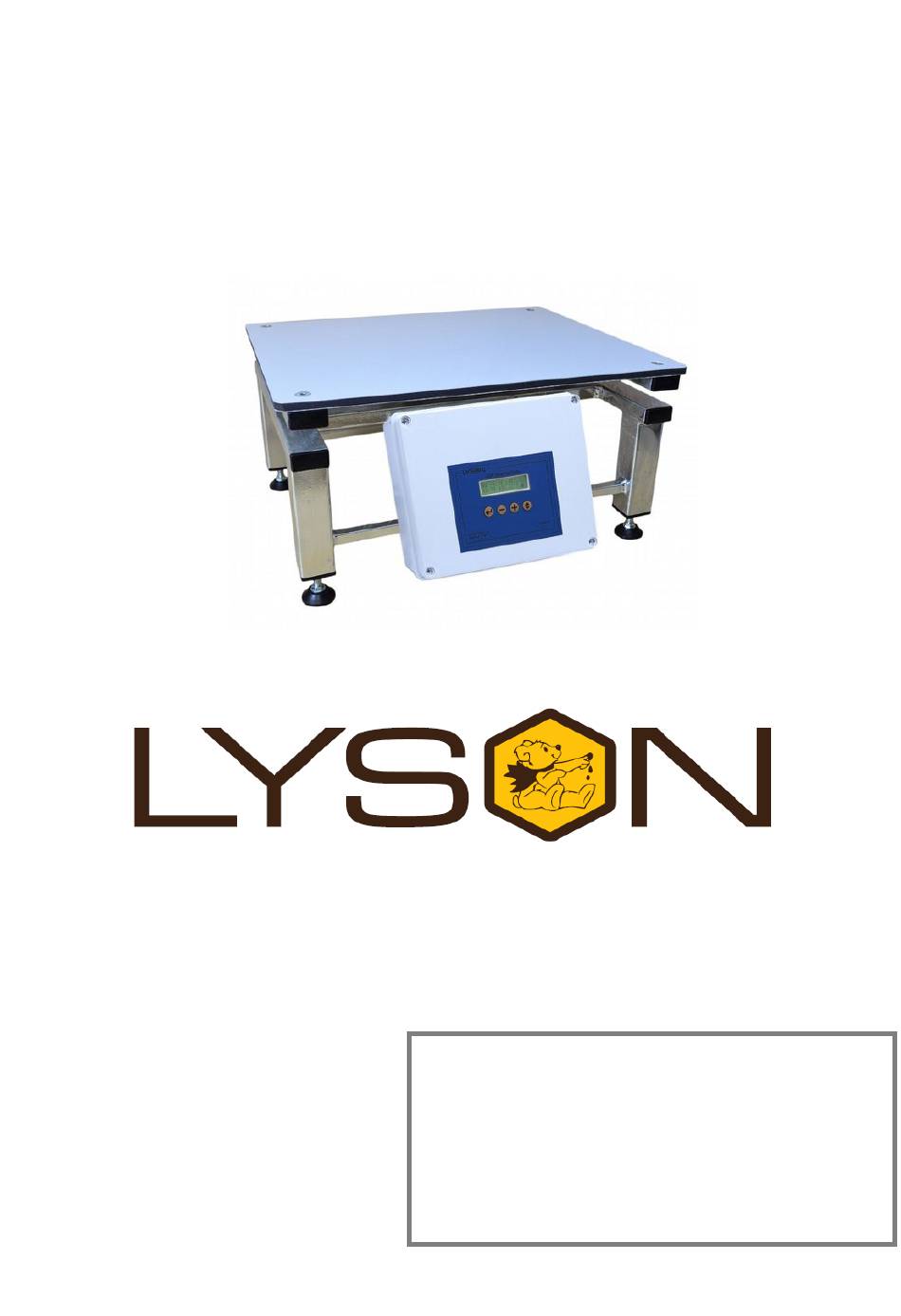

  • Page 1 Instructions Manual GBS-1 Classic Przedsiębiorstwo Pszczelarskie Tomasz Łysoń Spółka z o.o. Spółka Komandytowa 34-125 Sułkowice, ul. Racławicka 162, Polska www.lyson.com.pl, email; lyson@lyson.com.pl Siedziba Firmy Klecza Dolna 148, 34-124 Klecza Górna...
  • Page 2 WARNING!!! IMPORTANT Conditions of Use for Gel Batteries The battery while installed in the weighing scale must not remain discharged and must be recharged immediately. Leaving the battery discharged may result in short- ening its life, reducing its capacity or damaging it. When not in use, the battery should be recharged regularly, at intervals no longer than 2 weeks.
  • Page 3 Beehive scale GBS-1 Classic use – manual. The scale consists of a table with movable desktop attached to the tensometric sensor using a controller with a display and GSM communications module, and the powering battery module. 1. Preparing the scale to work.
  • Page 4 2. How the scale works. Everytime the power is switched on, the controller will ask to type the special code delivered by the manufacturer. After implementing the correct code, the controller will check the status of all subsystems and in the event of any irregularities unenabling the additional work the controller will display the adequate information.
  • Page 5 When the beehive temperature sensor is connected to the controller, the display can show measured values. At the moment of registering the information data, these are added to the data sent via the SMS and to the server. To save the energy, the scale's system is put to sleep after 120 seconds, the display is turned off.
  • Page 6 Buttons: ENTER: Holding the button will reset the balance (TAR). The Tar's value is saved in a non-volatile steady state memory. DOWN: A transition to the information screen number 6. UP: A transition to the information screen number 2. SELECT: A transition to the saved data's screen log. Information 2.
  • Page 7 Buttons: ENTER: Inactive. DOWN: A transition to the information screen number 4. UP: A transition to the information screen number 6. SELECT: A transition to the saved data's screen log. Information 6. • In the first line: The information screen's number: 6, SMS Test. •...
  • Page 8 DOWN: decreases the adjusted value. UP: increases the adjusted value. SELECT: a transition to the time settings screen. Hold the button to return to the previous information screen. The button is inactive, when the starting position of the cursor is not set with the ENTER button. Clock settings.
  • Page 9 SMS number settings. The flashing letter means the starting position of the cursor in the settings mode. • In the first line: letter S, SMS NUMBER • In the second line: telephone number in the form of + XX XXX XXX XXX The SMS number is the user's telephone number.

  • Page 10: Manufacturer's Codes

    EKO – a response to 5 questions. NORMAL – a response to 10 questions. HIGH – a response to 20 questions. ENTER: a transfer of the flashing cursor to the exact place of the adjusted value. Hold the button to transfer the cursor to the starting position and to save the settings in the memory.
  • Page 11 Clock Settings. The warning does not stop the device's activity. It is shown at the display for 30 seconds. You can interrupt the display of the warning by pressing ENTER button. • ERROR: scale not connected – the table with a sensor is not connected to the controller or is wrongly connected.
  • Page 12 • SIM CARD ERROR: Card locked – an information is being shown about the restricted access to the SIM card. Unlock the SIM card using an external device, i.e. Mobile phone. • ERROR: GSM ISSUE – an information is being shown about a serious hardware problem with the GSM device.
