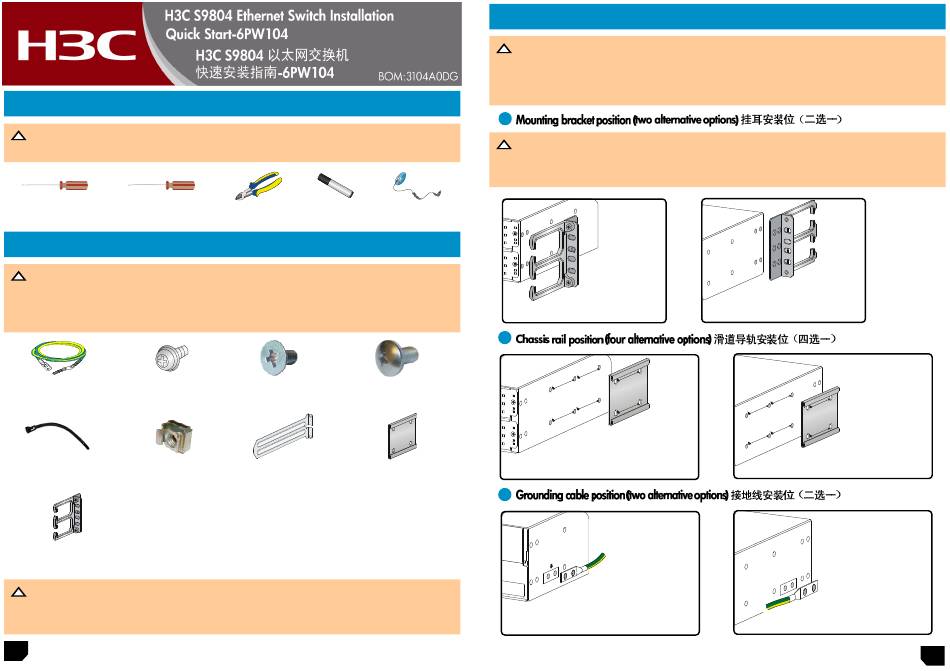

H3C S9804 Installation

Tool list 工具参考
The installation tools are not provided with the switch. Prepare them yourself.
交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Flat-head screwdriver Phillips screwdriver
一字螺丝刀 十字螺丝刀
Installation accessories 安装附件介绍
The installation accessories required depend on the switch mounting methods. Select the
installation accessories as required. 交换机在不同的安装场景下，用户所需要的附件组
合也有所差异。本图仅作示意，请用户以实际的安装场景为准，选择合适的附件组合进
行安装。
Grounding
Grounding
cable接地线 screw接地螺钉
Cable tie Cage nut (user supplied)
可拆卸式扎带 浮动螺母（请用户自备）
2U mounting bracket and
cable management bracket
2U挂耳和走线架
Before installation, wear an ESD wrist strap, and make sure the wrist strap makes good
skin contact and is well grounded. 在安装交换机的过程中，操作者需佩戴防静电腕带，
请确保防静电腕带已经正确接地并与皮肤良好接触。
1
Diagonal pliers Marker ESD wrist strap
斜口钳 记号笔 防静电腕带
M6 screw (user supplied)
M4 screw
M4螺钉 M6 螺钉（请用户自备）
Slide rail Chassis rail
滑道 滑道导轨
Installation positions for accessories 安装方式介绍
When you use slide rails and chassis rails to install a switch in a 19-inch rack, first
determine the installation positions for the mounting bracket, slide rails, and ground cable
on the switch.利用滑道、滑道导轨配合挂耳将交换机安装到19英寸机柜时，可以根据实际
需求调整附件在交换机上的安装位置。
1
The switch comes with the mounting bracket and cable management bracket attached
together. You can de-attach them as required. 交换机发货时挂耳和走线架是安装在一起
的，用户可根据实际需求进行拆卸。
Near the network ports
安装在靠近端口侧
2
a
b
Position a or b near the network ports
靠近端口侧，可以安装在a处或b处
3
Primary grounding point
(near the power modules)
主接地点（靠近电源侧）
Near the power modules
安装在靠近电源侧
c
d
Position c or d near the power modules
靠近电源侧，可以安装在c处或d处
Auxiliary grounding point
(near the network ports)
备用接地点（靠近端口侧）
2
