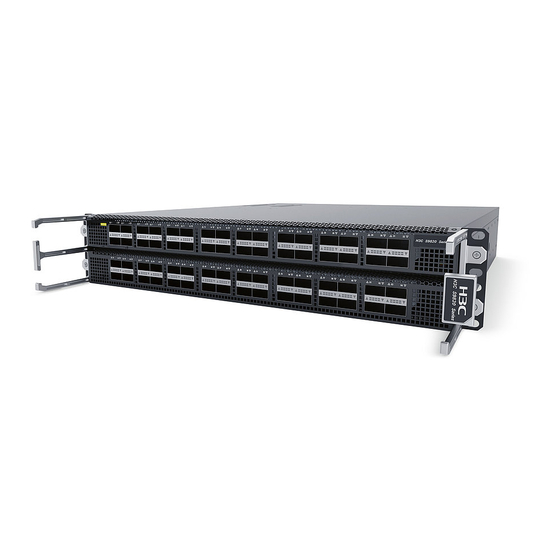

H3C S9820-64H Installation, Quick Start

H3C S9820-64H Switch Installation Quick Start-5W101
H3C S9820-64H交换机 快速安装指南-5W101

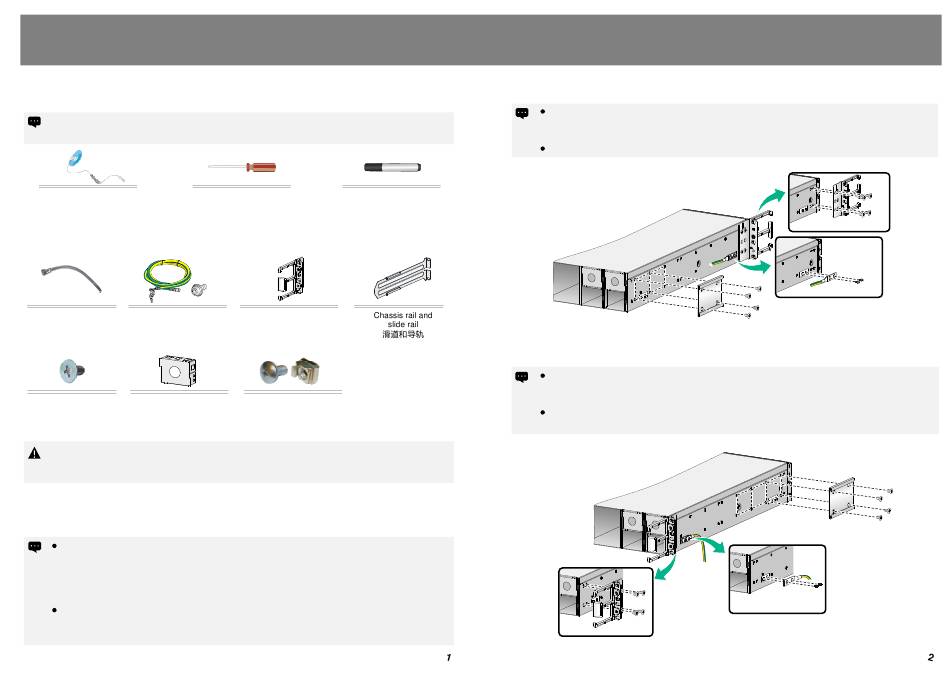

Tool list 工具参考
The installation tools are not provided with the switch. Prepare them yourself.
交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
ESD wrist strap
防静电腕带
Installation accessories 安装附件介绍
Grounding cable and
Removable cable tie
grounding screw
可拆卸式扎带
接地线和接地螺钉
M4 screw Power module filler panel
电源假面板
M4螺钉
Before installation, wear an ESD wrist strap, and make sure the wrist strap makes good skin
!
contact and is reliably grounded.
在以下安装过程中，请您佩戴防静电腕带，并确保防静电腕带已经正确接地并与皮肤良好接触。
Attaching the accessories to the switch 安装附件到交换机
The chassis provides multiple installation positions for chassis rails on its two sides. Select an
installation position for chassis rails based on the rack deptH. When you rack-mount the switch,
make sure the slide rails reach out of the chassis rails to maintain the chassis stability.
设备侧面板提供了多个滑道导轨安装位，用户可根据机柜的深度，调整滑道导轨的安装位置；为
保证设备安装后的稳定性，当滑道与滑道导轨安装完成后，请确保滑道的头部露出滑道导轨。
Identify the left and right mounting brackets before installing them. The left mounting bracket is
marked L and the right mounting bracket is marked R.
挂耳区分左右，可以通过挂耳上的丝印识别，左侧挂耳具有"L"标识，右侧挂耳具有"R"标识。
Phillips screwdriver Marker
十字螺丝刀 记号笔
Mounting bracket and
cable management bracket
带有走线架的挂耳
M6 screw and cage nut
(user supplied)
M6 螺钉和浮动螺母
（请用户自备）
Install the mounting brackets near the port side 挂耳安装在靠近端口侧
This installation option is applicable to a rack with a distance of 501 mm (19.72 in) to 778 mm
(30.62 in) between the front and rear rack posts.
此安装方式适用于前后方孔条间距在501mm～778mm范围内的机柜。
Install the chassis rail at a or b. 挂耳安装在靠近端口侧时，滑道导轨可安装在a或b任意一处。
b
a
Install the mounting brackets near the power module side 挂耳安装在靠近电源侧
This installation option is applicable to a rack with a distance of 506 mm (19.92 in) to 778 mm
(30.62 in) between the front and rear rack posts.
此安装方式适用于前后方孔条间距在506mm～778mm范围内的机柜。
Install the chassis rail at c, d, or e.
挂耳安装在靠近电源侧时，滑道导轨可安装在c、d或e任意一处。
e
d
c
