H3C S9850-4C Installation, Quick Start

H3C S9850-4C Switch Installation Quick Start-6W101
H3C S9850-4C
Tool list 工具参考
No installation tools are provided with the switch. Prepare them yourself as required.
交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
ESD wrist strap
防静电腕带
Installation accessories
Grounding cable and
M6 screw and cage nut
grounding screw
(user supplied)
接地线和接地螺钉 M6 螺钉和浮动螺母
（请用户自备）
M4 screw Removable cable tie
可拆卸式扎带
M4螺钉
Before installation, wear an ESD wrist strap, and make sure the wrist strap makes good skin contact
!
and is reliably grounded.
在以下安装过程中，请您佩戴防静电腕带，并确保防静电腕带已经正确接地并与皮肤良好接触。

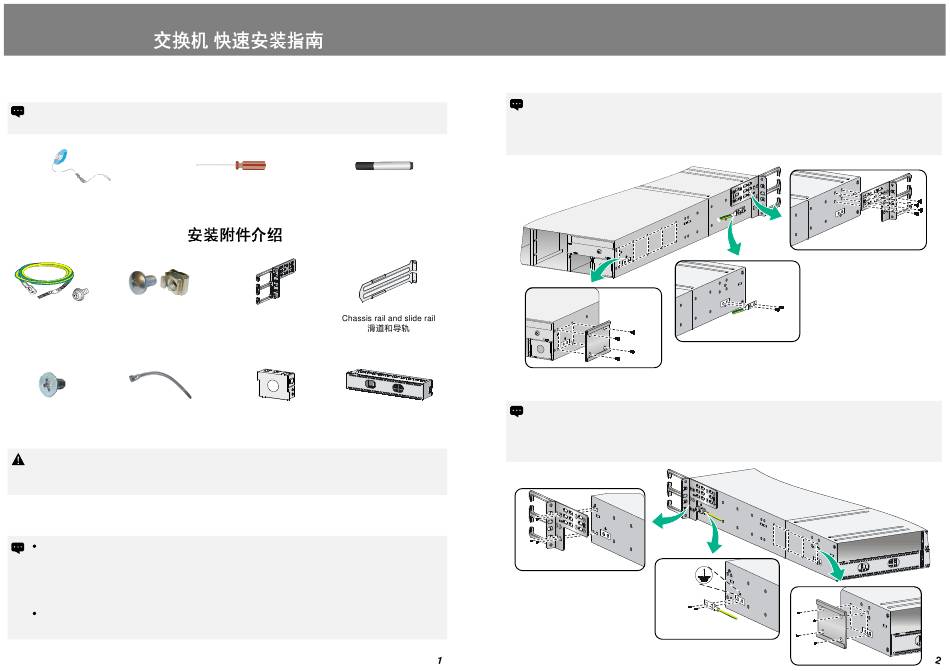

Attaching the accessories to the switch 安装附件到交换机
The chassis provides multiple installation positions for chassis rails on its two sides. Select an
installation position for chassIs rails based on the rack depth. To maintain the chassis stability, make
sure the slide rails reach a minimum of 30 mm (1.18 in) out of the chassis rails.
设备侧面板提供了多个滑道导轨安装位，用户可根据机柜的深度，调整滑道导轨的安装位置；为保证
设备安装后的稳定性，当滑道与滑道导轨安装完成后，请确保滑道的头部露出滑道导轨最少30mm。
The accessory installation positions in the following figures are for illustration only.
以下图中附件安装位置仅供参考，请根据实际安装场景的需要选择合适的安装位置。
-6W101
Phillips screwdriver Marker
十字螺丝刀 记号笔
Mounting bracket with a cable
management bracket
带有走线架的挂耳
Power module filler panel Interface card filler panel
电源假面板 接口模块扩展卡假面板
Mounting brackets installed near the port side 挂耳安装在靠近端口侧
This installation option is applicable to a rack with a distance of 518 mm ( 20.39 in) to 923 mm (36.34 in)
between the front and rear rack posts.
此安装方式适用于前后方孔条间距在518mm～923mm范围内的机柜。
Install the chassis rail at a, b, c, or d. 挂耳安装在靠近端口侧时，滑道导轨可安装在a、b、c或d任意一处。
c d
a b
a
Mounting brackets installed near the power module side 挂耳安装在靠近电源侧
This installation option is applicable to a rack with a distance of 518 mm (20.39 in) to 858 mm (33.78 in)
between the front and rear rack posts.
此安装方式适用于前后方孔条间距在518mm～858mm范围内的机柜。
Install the chassis rail at e, f, or g. 挂耳安装在靠近电源侧时，滑道导轨可安装在e、f或g任意一处。
e
f
g
g
