HAC8FBLQ*1F HAC8FBLRQ*1F HAC8FSBLQ*1F
8
28,30,31,
32,33,34
27
16
18
HALSEY TAYLOR OWNERS MANUAL
MANUAL DEL PROPIETARIO HALSEY TAYLOR
MANUEL DE L'UTILISATION HALSEY TAYLOR
USES HFC-134A REFRIGERANT
USA REFRIGERANTE HFC-134A
UTILISE DU FLUIDE FRIGORIGÈNE HFC-134A
41
26
See Fig. 3 for Push Bar Mechanism
Vea ia Fig. 3 para el Mecanismo de la Barra de Empuje
Voir Fig. 3 pour ie Mechanisme de Barre-poussoir
15
38
17
Page 1
HAC8FSWFBLQ*1F HAC8FSBLRQ*1F
39
7
29
35,36
19,20,21
23,24,25
1
2,3
4,5
6
8
37
9
10,11
40
12
13
22
14
18
98138C (3/05)
Advertisement
Table of Contents
Related Manuals for Halsey Taylor HAC8FBLRQ 1F Series
Summary of Contents for Halsey Taylor HAC8FBLRQ 1F Series
- Page 1 HAC8FBLQ*1F HAC8FBLRQ*1F HAC8FSBLQ*1F HAC8FSWFBLQ*1F HAC8FSBLRQ*1F HALSEY TAYLOR OWNERS MANUAL MANUAL DEL PROPIETARIO HALSEY TAYLOR MANUEL DE L’UTILISATION HALSEY TAYLOR USES HFC-134A REFRIGERANT USA REFRIGERANTE HFC-134A UTILISE DU FLUIDE FRIGORIGÈNE HFC-134A See Fig. 3 for Push Bar Mechanism Vea ia Fig. 3 para el Mecanismo de la Barra de Empuje Voir Fig.

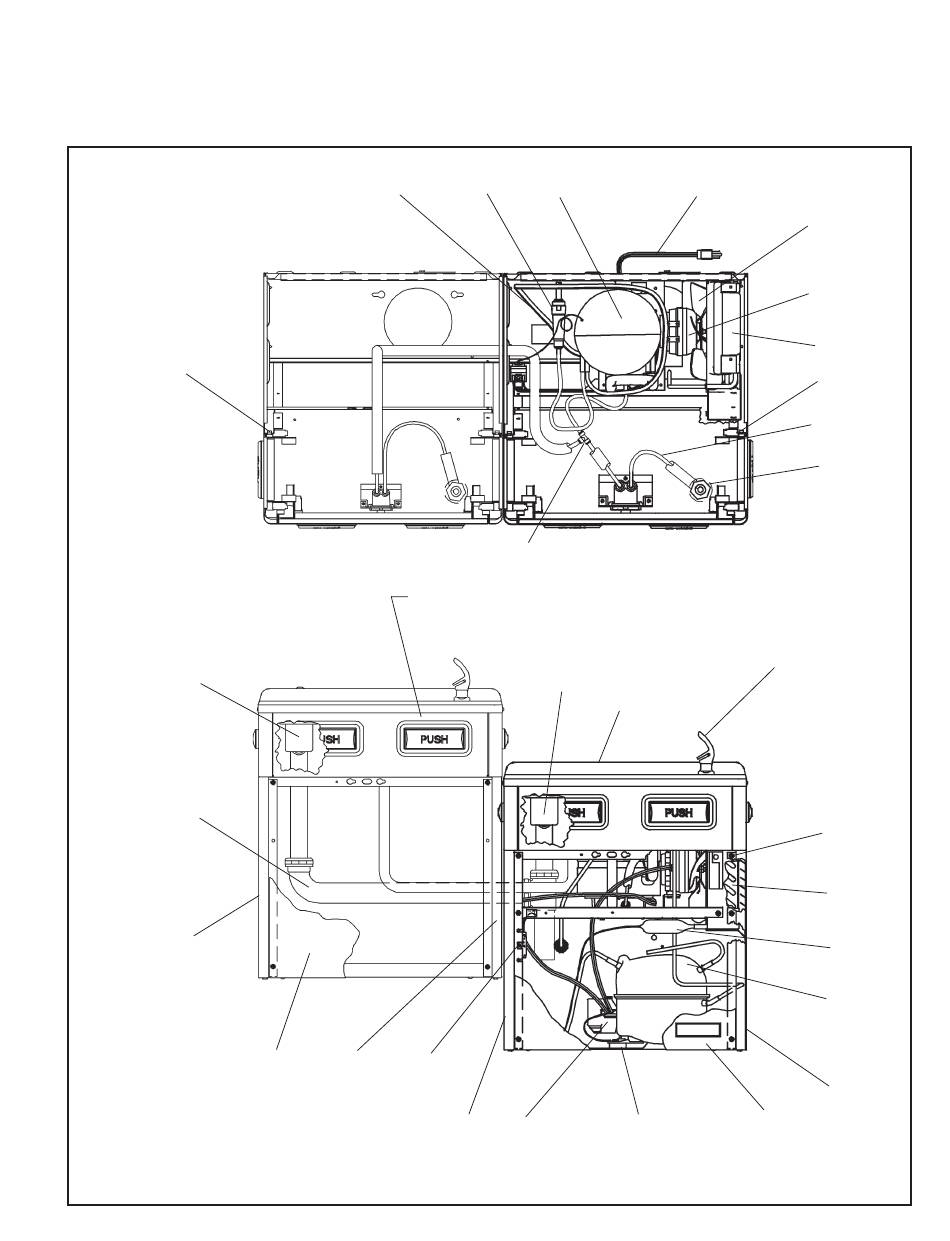

- Page 2 HAC8FBLQ*1F HAC8FBLRQ*1F HAC8FSBLQ*1F HAC8FSWFBLQ*1F HAC8FSBLRQ*1F FIG. 2 98138C (3/05) Page 2...
- Page 3 HAC8FBLQ*1F HAC8FBLRQ*1F HAC8FSBLQ*1F HAC8FSWFBLQ*1F HAC8FSBLRQ*1F PUSH BAR MECHANISM MECANISMO DE BARRA DE EMPUJE MÉCANISME DU BOUTON-POUSSOIR FIG. 3 Water Valve Mechanism - ADJUSTMENT PROCEDURE: - Turn adjustment screw (Item 60) “Counter-Clockwise” until water flow from bubbler starts. - Turn adjustment screw “Clockwise” until water flow stops, THEN turn an additional 1/2 turn. NOTE: Adjustments stated above are viewed from underneath unit (bottom side of dispenser panel Item 1) NOTE: If continuous flow occurs at the end of the compressor cycle, turn cold control (Item 38) counterclockwise 1/4 turn.
- Page 4 HAC8FBLQ*1F HAC8FBLRQ*1F HAC8FSBLQ*1F HAC8FSWFBLQ*1F HAC8FSBLRQ*1F IMPORTANT IMPORTANTE IMPORTANT ALL SERVICE TO BE PERFORMED BY TODO EL SERVICIO DEBERÁ SER EFECTUADO TOUT ENTRETIEN DOIT ÊTRE EFFECTUÉ AN AUTHORIZED SERVICE PERSON POR UNA PERSONA DE SERVICIO AUTORIZADA PAR UN REPRÉSENTANT AUTORISÉ CAUTION: Cleaning of Aztec Gold Models re- ADVERTENCIA: La limpieza de los modelos Oro Azteca, requiere ATTENTION: Le nettoyage des modèles or aztèque quires special care.
- Page 5 HAC8FBLQ*1F HAC8FBLRQ*1F HAC8FSBLQ*1F HAC8FSWFBLQ*1F HAC8FSBLRQ*1F HANGER BRACKET FIJADOR DE SUSPENSIÓN SUPPORT DE SUSPENSION COOLER BACK SUPPORT DE SUSPENSION ARRIÈRE DU REFROIDISSEUR FIG. 4 CORRECT STREAM HEIGHT ALTURA CORRECTA DEL CHORRO BONNE HAUTEUR DU JET FIG. 5 98138C (3/05) Page 5...
- Page 6 HAC8FBLQ*1F HAC8FBLRQ*1F HAC8FSBLQ*1F HAC8FSWFBLQ*1F HAC8FSBLRQ*1F Item No. 14 Item No. 15 Item No. 16 Item No. 17 Item No. 18 COLOR TABLE TABLA DE LOS TABLE DE Part No. Part No. Part No. Part No. Part No. COLORES COULEURS Artículos No. Artículos No.
- Page 7 HAC8FBLQ*1F HAC8FBLRQ*1F HAC8FSBLQ*1F HAC8FSWFBLQ*1F HAC8FSBLRQ*1F - When provided Cuando es proporcionado Si fourni FIG. 6 FILTER PARTS LIST LISTA DE PIEZAS DEL FILTRO LISTE DES PIÈCES DU FILTRE (See Fig. 6) (Vea la Fig. 6) (Voir Fig. 6) ITEM PART DESCRIPTION DESCRIPCIÓN DESCRIPTION...
- Page 8 HAC8FBLQ*1F HAC8FBLRQ*1F HAC8FSBLQ*1F HAC8FSWFBLQ*1F HAC8FSBLRQ*1F PARTS LIST/ LISTA DE PIEZAS/ LISTE DES PIÈCES ITEM PART NO DESCRIPTION DESCRIPCIÓN DESCRIPTION 36208C Power Cord Cable Eléctrico Cordon d’alimentation 30664C Fan Blade Aspa del Ventilador Lame du ventilateur 70018C Hex Nut - Fan Blade Arandela Hexagonal –...
