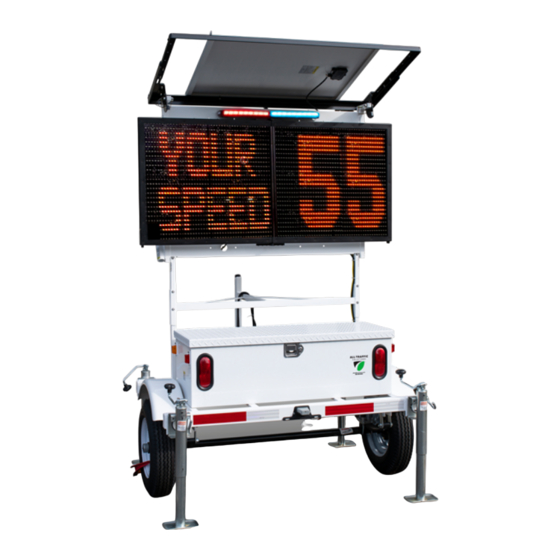

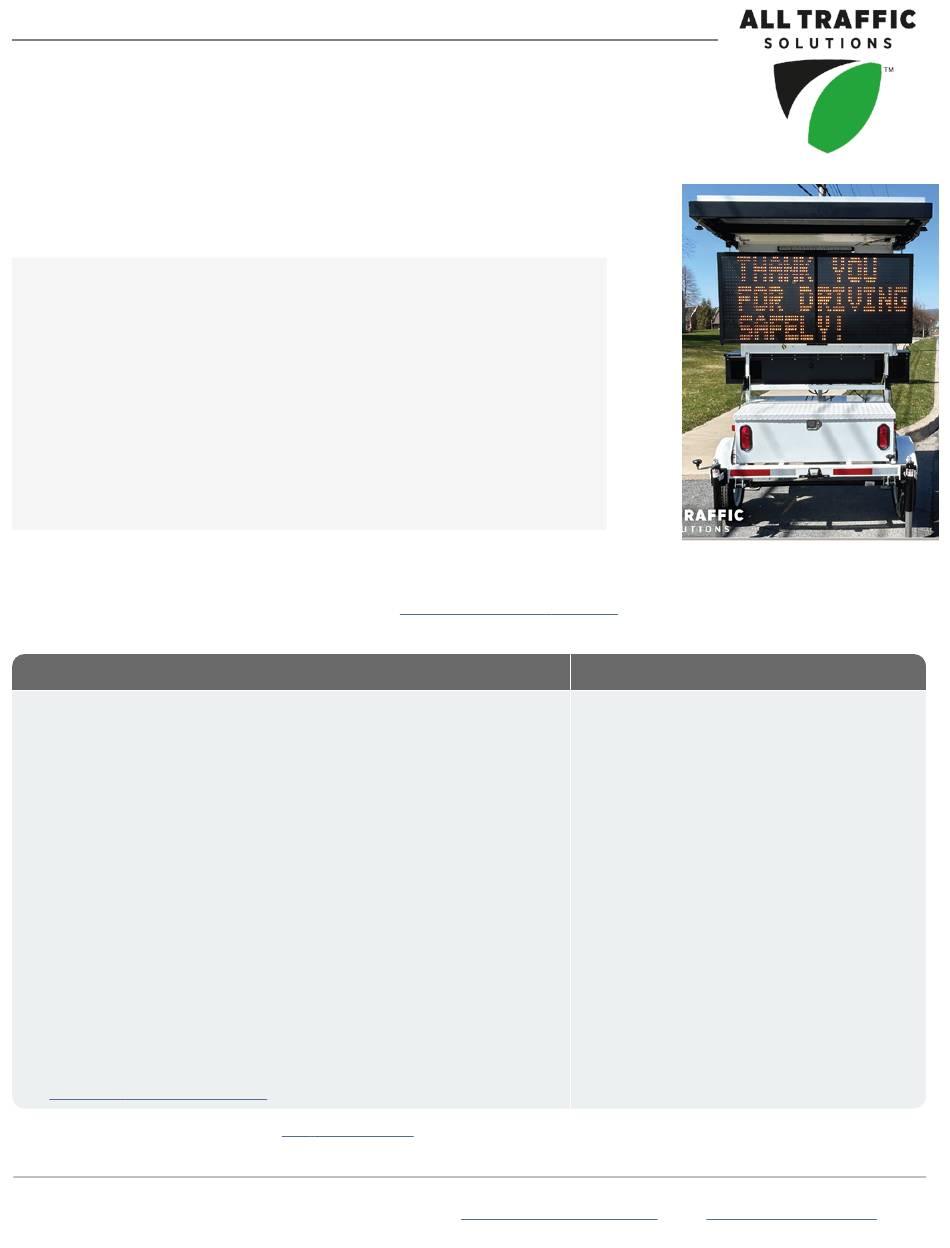

ATS 5 FLEX Mobile Power Trailer Quick Start Guide
Thank you for purchasing an ATS 5 FLEX Mobile Power Trailer. This guide will show you how
to set up your new trailer. Please follow all of the steps in order. The trailer is typically
outfitted with an ATS SpeedAlert 24 Radar Message Sign or InstAlert 24 Variable Message
Sign. Onboard equipment is powered by lead acid batteries and either the 190W or 380W
solar panel assist option. For TraffiCloud documentation, subscribers should refer to the
Getting Started with TraffiCloud guide for your sign. On the TraffiCloud Help menu, click the
Getting Started Guides link. Local Bluetooth access only customers with data-
enabled signs should refer to the configuration section of the Quick Start Guide for
your sign, which includes details about using TraffiCloud Sign Manager for Windows.
Initial ATS 5 FLEX Mobile Power Trailer setup
IMPORTANT: Review the
then perform the following setup steps:
Step 1: Inspecting and charging the trailer's batteries on page 4
Step 2: Hooking up the trailer on page 5
Step 3: Setting up the trailer at the roadside on page 6
Step 4: Powering on the sign and third party devices on page 7
Step 5: Securing the trailer on page 8
After deployment, see
Check over the trailer
Upon receiving your new ATS 5 FLEX Mobile Power Trailer, check to ensure that you have all of the items ordered. If you
notice any damaged or missing items, contact ATS
Here's a summary of what's typically included with your trailer. Check your packing slip for precise order details.
The ATS 5 FLEX Mobile Power Trailer includes the following:
The trailer, with four pairs of deep cycle lead acid batteries and
»
either the 190W or 380W solar panel assist option,
Depending on the solar panel options selected, either a 15A or 30A
»
MPPT solar controller, and low-voltage disconnect to prevent deep
discharging, running on a lower voltage than intended, or
overcharging.
An additional locking battery box for expanded battery capacity,
»
including third-party system equipment area with access panel
and optional recessed camera compartment,
A SpeedAlert 18 or 24 Radar Message Sign or InstAlert 18 or 24
»
Variable Message Sign, or Shield 15 Radar Sign (sold separately).
A 12-VDC AC smart charger,
»
This ATS 5 FLEX Mobile Power Trailer Quick Start Guide. All setup and
»
quick start (installation) guides are also posted to the ATS
Technical Customer Support
For more details, consult the latest
ATS | Chantilly, VA | United States | Tel: 1-866-366-6602 | Email:
Copyright © 2024 | All Traffic Solutions, Inc.® | ATS 5 FLEX Mobile Power Trailer Quick Start Guide, ver. 1.01 | PN 4800272 | All rights reserved.
Safe Trailering Guidelines on the next page
Packing up the trailer for redeployment on
What's included
page.
ATS Trailers page
and
page 8.
Technical Customer Support
»
»
»
on our website.
support@alltrafficsolutions.com
immediately.
What you'll need
A vehicle equipped with a trailer hitch
for towing a load of up to 1,500 lbs.
(680 kg), including a standard hitch
mount with bracket for the safety chain,
2-inch (5-cm) ball, and flat, 4-way wiring
socket. Other connection options are
also available.
A heavy duty three-pronged outdoor-
rated extension cord.
Legal licensing or registration as
required for your jurisdiction.
