All Traffic Solutions ATS 5 Quick Start Manual

ATS 5 Trailer Quick Start Guide
Thank you for purchasing an ATS 5 Trailer. This guide will show you how to set up your new
trailer and sign. The trailer can be used with any sign, but is typically outfitted with an ATS
SpeedAlert 24 Radar Message Sign or InstAlert 24 Variable Message Sign. Power comes
from lead acid batteries and an optional solar panel. For additional setup documentation,
TraffiCloud subscribers should refer to the Getting Started with TraffiCloud guide for your
Sign. On the TraffiCloud Help menu, click the Getting Started Guides link. Non-
subscribers with data-enabled signs should refer to the configuration section of the
Quick Start Guide for your sign, which includes details about using TraffiCloud Sign
Manager for Windows.

Initial ATS 5 Trailer setup

IMPORTANT: After you receive your ATS 5 Trailer, you'll need to review the Safe
trailering guidelines on the next page and then perform the following setup steps:
Step 1: Inspect and charge the trailer's batteries on page 4
Step 2: Deploy the trailer on page 5
Step 3: Power the sign on page 8
Step 4: Secure the trailer on page 8
Check over the trailer
Upon receiving a new ATS 5 Trailer, check to ensure that you have all of the items
ordered. If you notice any damage or missing items, contact ATS
Here's a summary of what's typically included with your trailer. Also check your pack slip for precise details of your
order.
What's included
The ATS 5 Trailer includes the following:

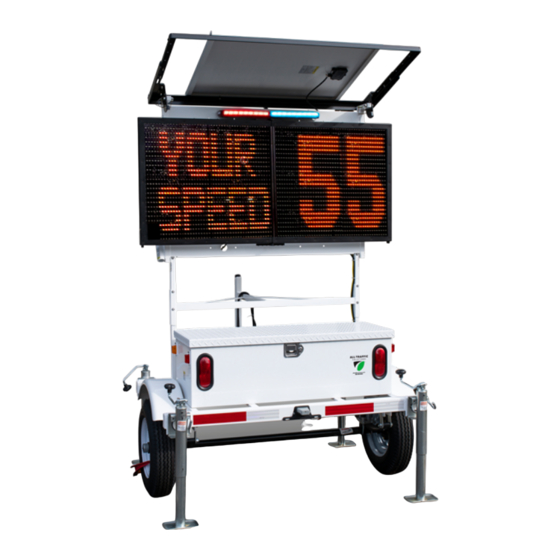

The trailer, with one or two pairs of deep
»
cycle lead acid batteries and optional solar
panel,
A 12-VDC automatic charger,
»
A SpeedAlert 18 or 24 Radar Message Sign or
»
InstAlert 18 or 24 Variable Message Sign, or
Shield 15 Radar Sign (sold separately).
This ATS 5 Trailer Setup Guide. All setup and
»
quick start guides are also posted to the ATS
Technical Customer Support
For more details, consult the latest
ATS | Chantilly, VA | United States | Tel: 1-866-366-6602 | Email:
Copyright © 2023 | ATS 5 Trailer Quick Start Guide | Document ver.1.0 | PN: 4800240 | All rights reserved.
A vehicle equipped with a trailer hitch for towing, including
»
a standard hitch mount with bracket for the safety chain,
2-inch (5-cm) ball, and flat, 4-way wiring socket.
A heavy duty three-pronged outdoor extension cord,
»
A partner for trailer hookup and to unfold the upper frame
»
of the trailer,
Legal licensing or registration if required for your
»
jurisdiction.
page.
ATS 5 Trailer spec sheet.
Technical Customer Support
What you'll need
sales@alltrafficsolutions.com
immediately.
