Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are
in proper posi�on, �ght and free from damage. Keep this assembly instruc�on for future reference. Adult assembly is required.
CODE
QTY
1
20
1/4" x 19mm Flat Washers
2
24
1/4" Spring Washers
3
4
1/4" x 2" Allen Bolts
4
1
1/4" Allen Wrench
5
4
1/4" x 1" Allen Bolts
6
4
1/4" x 15mm Allen Bolts
7
2
Metal Brackets
8
4
#8 x 1-1/4" Screws
9
12
1/4" x 1-1/2" Allen Bolts
10
1
1/4" x 4" Straight Allen Wrench
C
1
2
STEP 2 - Figure 2
Next secure in each rear corner of the Seat
Frame (A) and Chair Back (C) with 2 Metal
Brackets (7), 2 Spring Washers (2) and 2 Allen
Bolts (6) per side.
CARE & MAINTENANCE: The touch of a so� cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing, as they may
cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely �ghtened.
HARDWARE
STEP 1 - Figure 1
Begin assembly by aligning the notches in the Seat Frame (A) with those in Chair Back (C)
and a�ach Seat Frame (A) to Chair Back (C) by se�ng in place and aligning holes and
securing from le� and right inside back panel with 4 Allen Bolts (3), 4 Spring Washers (2)
and 4 Flat Washers (1). Do not fully �ghten bolts.
FIGURE 1
A
1
2
3
3

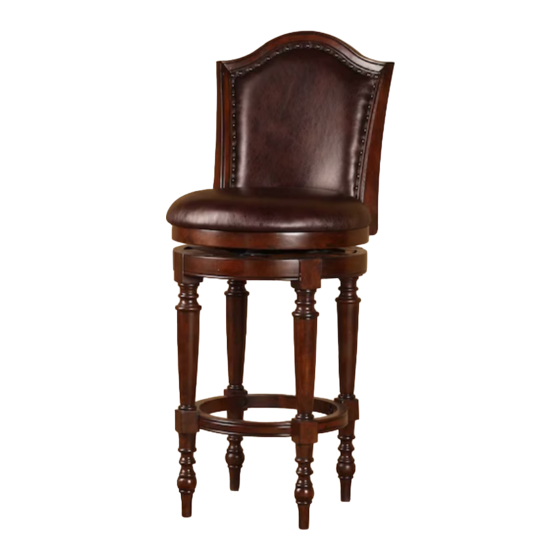

Dining Stool
Wood Swivel Counter Stool
Wood Swivel Barstool
CODE
QTY
A
1
Seat Frame
C
1
Chair Back
E
1
Bo�om Round Stretcher
C
COMPONENTS
CODE
QTY
B
1
D
1
F
4
6
2
2
6
7
A
Page 1 of 2
COMPONENTS
Seat Cushion
Top Round Stretcher
Legs
C
FIGURE 2
A
Advertisement
Table of Contents
Related Manuals for Hillsdale Furniture Barcelona Chair 4899-826
Summary of Contents for Hillsdale Furniture Barcelona Chair 4899-826
- Page 1 Dining Stool Page 1 of 2 Wood Swivel Counter Stool Wood Swivel Barstool Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are in proper posi�on, �ght and free from damage. Keep this assembly instruc�on for future reference. Adult assembly is required. CODE HARDWARE CODE...
- Page 2 Dining Stool Page 2 of 2 Wood Swivel Counter Stool Wood Swivel Barstool STEP 3 - Figure 3 A�ach the Seat Cushion (B) onto the Seat Frame (A) and secure with 4 Screws (8). STEP 4 - Figure 4 A�ach each Chair Leg (F) to the Bo�om Round Stretcher (E) using 1 Allen Bolt (I), 1 Spring Washer (2) and 1 Flat Washer (9) and to the Top Stretcher (D) using 2 Allen Bolts (9), 2 Spring Washers (2) and 2 Flat Washers (9).
