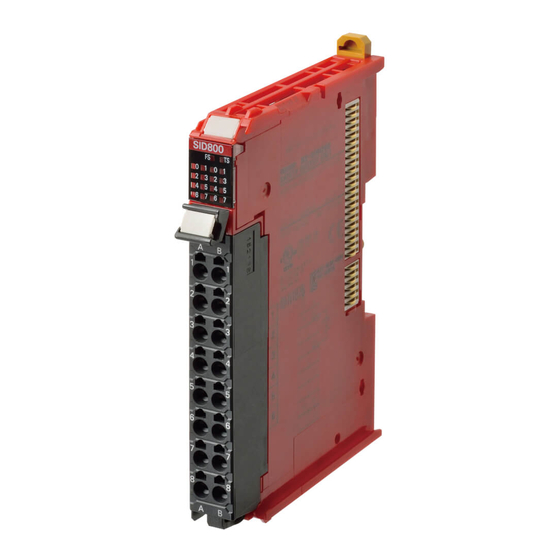

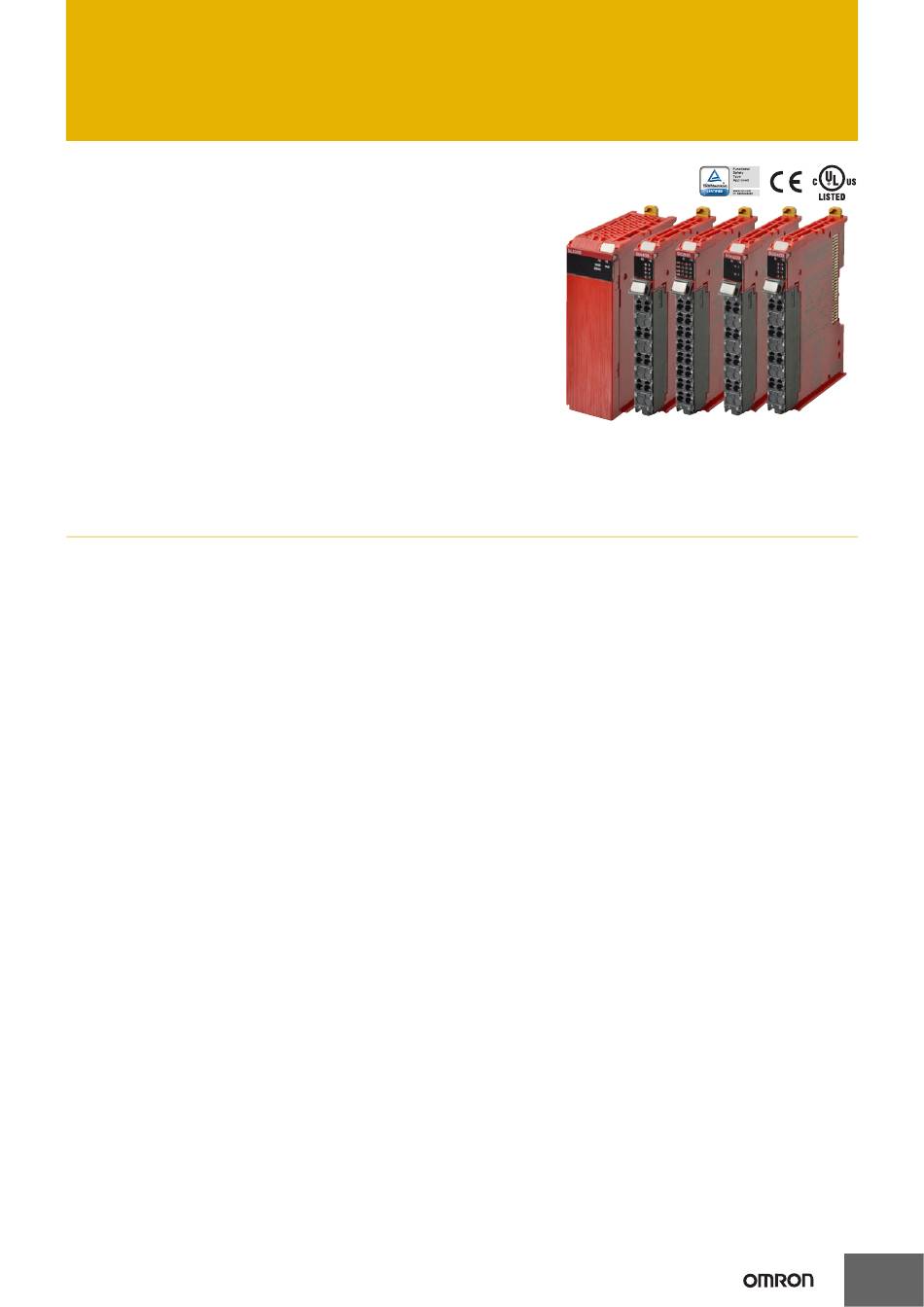

NX-series Safety Control Units
NX-SL/SI/SO
Integration of Safety into Machine
Automation Enables Simple,
Flexible System Configuration.
• EN ISO13849-1 (PLe/Safety Category4), IEC 61508 (SIL3) certified.
• One connection using Safety over EtherCAT (FSoE)
enables flexible configuration by mixing the Safety Units with standard
NX I/O.
• Hardware and safety circuits can be configured using the Sysmac
Studio (Ver. 1.07)
* Safety over EtherCAT (FSoE): The open protocol Safety over EtherCAT (abbreviated with FSoE "FailSafe over EtherCAT") defines a safety
related communication layer for EtherCAT. Safety over EtherCAT meets the requirements of IEC 61508 SIL 3 and enables the transfer of safe
and standard information on the same communication system without limitations with regard to transfer speed and cycle time.
Features
• Integrated safety into machine automation possible by connecting with the NX-series EtherCAT Coupler.
• The Safety CPU Unit controls up to 128 Safety I/O Units.
• 4 or 8 points per Safety Input Unit. The 4-point Safety Input Unit can be directly connected with OMRON Non-contact Switches and Singlebeam
Sensors.
• 2 or 4 points per Safety Output Unit. The 2-point Safety Output Unit is characterized by large output breaking current of 2.0 A.
• The Safety Units can be freely allocated in any combination with standard NX I/O.
• Compliant with IEC61131-3
• Safety programs can be standardized and reused efficiently by using POUs for design and operation.
Sysmac is a trademark or registered trademark of OMRON Corporation in Japan and other countries for OMRON factory automation products.
®
EtherCAT
is registered trademark and patented technology, licensed by Beckhoff Automation Gmbh, Germany.
®
Safety over EtherCAT
is registered trademark and patented technology, licensed by Beckhoff Automation Gmbh, Germany.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.
*
protocol
CSM_NX-SL_SI_SO_E_2_1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omron NX Series
Summary of Contents for Omron NX Series
- Page 1 • Integrated safety into machine automation possible by connecting with the NX-series EtherCAT Coupler. • The Safety CPU Unit controls up to 128 Safety I/O Units. • 4 or 8 points per Safety Input Unit. The 4-point Safety Input Unit can be directly connected with OMRON Non-contact Switches and Singlebeam Sensors.
-
Page 2: System Configuration
NX-SOD400 NX Units NX Series EtherCAT Coupler Unit Safety Input Unit NX-ECC201 NX-SIH400 Safety Output Unit NX-SOH200 End Cover NX Units * OMRON CJ1W-NC@81/@82 Position Control Units cannot be connected to the EtherCAT Slave Terminal even though they support EtherCAT. -
Page 3: Ordering Information
(PNP) * The following OMRON special safety input devices can be connected directly without a special controller. For detail of connectable OMRON special safety input devices,refer to NX-series Safety Control Units User's Manual(No.Z930-E1). Model and corresponding PL and... -
Page 4: General Specification
Listed (UL508) and ANSI/ISA 12.12.01 * Certification was received for applications in which OMRON FSoE devices are connected to each other. The NX-series Safety Control Units allow you to build a safety control system that meets the following standards. -
Page 5: Specifications Of Individual Units
NX-SL/SI/SO Specifications of Individual Units Safety CPU Unit NX-SL3300/SL3500 Unit name Safety CPU Unit Model NX-SL3300 NX-SL3500 Maximum number of safety I/O points 256 points 1024 points Program capacity 512 KB 2048 KB Number of safety master connections 32 I/O refreshing method Free-Run refreshing Free-Run refreshing External connection terminals... - Page 6 Number of test output points 2 points 2 points Internal I/O common PNP (sinking inputs) Rated input voltage 24 VDC (20.4 to 28.8 VDC) OMRON special safety input Can be connected. Cannot be connected. devices Number of safety slave connections I/O refreshing method...
- Page 7 NX-SL/SI/SO Safety Output Units NX-SOH200/SOD400 Unit name Safety Output Unit Model NX- SOH200 NX-SOD400 Number of safety output points 2 points 4 points Internal I/O common PNP (sourcing outputs) 2.0 A/point 4.0 A/Unit at 40°C Maximum load current 2.5 A/Unit at 55°C 0.5 A/point and 2.0 A/Unit The maximum load current depends on the installation orientation and ambient temperature...
- Page 8 NX-SL/SI/SO Unit name Safety Output Unit Model NX- SOH200 NX-SOD400 Installation orientation: 6 possible orientations Installation orientation: 6 possible orientations Restrictions: For upright installation, the ambient temperature Restrictions: None is restricted as shown below depending on the total Unit load current. 2.5A Ambient temperature [°C] Installation orientation and...
-
Page 9: Version Information
NX-SL/SI/SO Version Information The combinations that can be used of the unit versions of the Safety Control Units, NJ-series CPU Units, and NX-series EtherCAT Coupler Unit, and the version of the Sysmac Studio NX Unit Corresponding unit versions/version NJ-series CPU Units Unit EtherCAT Coupler Unit Model number... - Page 10 NX-SL3300/SL3500 Letter Item Specification The locations where markers are attached. The markers made by OMRON are Marker attachment locations installed for the factory setting. Commercially available markers can also be installed. For details, refer to User's Manual (Z930-E1). Protrusions for removing the Unit The protrusions to hold when removing the Unit.
- Page 11 Safety Output Unit NX-SOH200/SOD400 Letter Item Specification The locations where markers are attached. The markers made by OMRON are Marker attachment locations installed for the factory setting. Commercially available markers can also be installed. For details, refer to User's Manual (Z930-E1).
- Page 12 NX-SL/SI/SO Applicable Terminal Blocks for Each Unit Model Terminal Blocks Unit model No. of Terminal number Ground terminal Terminal current number Model terminals indications mark capacity NX-SIH400 NX-TBA082 None NX-SID800 NX-TBA162 None NX-SOH200 NX-TBA082 None NX-SOD400 NX-TBA082 None Applicable Wires Using Ferrules If you use ferrules, attach the twisted wires to them.
- Page 13 NX-SL/SI/SO Dimensions (Unit/mm) Safety CPU Unit NX-SL3300/SL3500 Safety Input Units NX-SIH400/SID800 Safety Output Units NX-SOH200/SOD400 14.1 12.0 104.5 65.2 80.1...
-
Page 14: Related Manuals
NX-SL/SI/SO Related Manuals Cat. No. Model number Manual name Application Description NX-SL@@@@ NX-series Safety Learning how to use NX-series Describes the hardware, setup methods, and Z930 NX-SI@@@@ Control Unit User's Safety Control Units. functions of the NX-series Safety Control Units. NX-SO@@@@ Manual NX-series Safety... - Page 15 (a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
