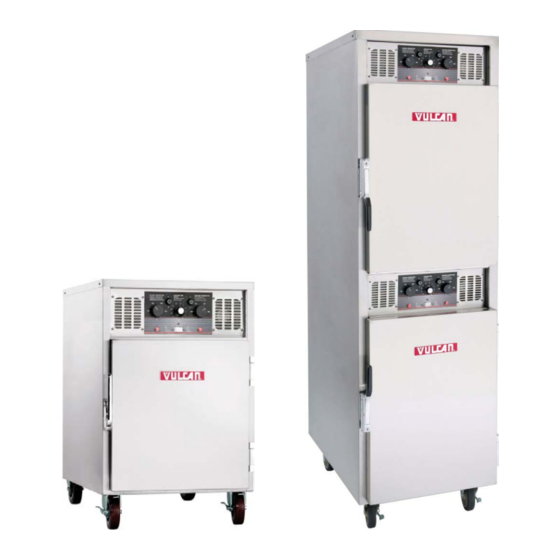

Vulcan-Hart VCV13 Installation & Operation Manual
Cook and hold oven
Hide thumbs
Also See for VCV13:
- Service manual (28 pages) ,
- Parts manual (4 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Quick Links
INSTALLATION &
OPERATION MANUAL
COOK AND HOLD
OVEN SYSTEMS
MODELS
VCV13
VCV6
VCV4
VCV5
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
3600 NORTH POINT BLVD.
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
BALTIMORE, MD 21222
WWW.VULCANHART.COM
F-38052 (4-08)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vulcan-Hart VCV13
Summary of Contents for Vulcan-Hart VCV13
- Page 1 MODELS VCV13 VCV6 VCV4 VCV5 For additional information on Vulcan-Hart or to locate an authorized parts and service provider in your area, visit our website at www.vulcanhart.com VULCAN-HART 3600 NORTH POINT BLVD. DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC BALTIMORE, MD 21222 WWW.VULCANHART.COM...
-
Page 2: Important For Your Safety
Read the Installation, Operating and Maintenance instructions thoroughly before installing or servicing this equipment. IN THE EVENT OF A POWER FAILURE, DO NOT ATTEMPT TO OPERATE THIS DEVICE. © VULCAN-HART, 2008 — 2 —... -
Page 3: Serial Number Location
Electrical Requirements Before connecting the oven to the power source, verify that the The VCV13 and VCV6 ovens are dual voltage, voltage and phase of the power source factory wired for 208/240 Volts AC, single are identical to the voltage and phase phase, 50 or 60 Hz service. - Page 4 VCV SERIES COOK AND HOLD OVEN SYSTEMS 26.875" 17.25" 683 mm 438 mm 32.5" DOOR 826 mm SWING 40.70" 1034 mm FRON SIDE Figure 2: Model VCV4 Dimensions 28.5" 33.75" 718 mm 857 mm 31.5" DOOR 800 mm SWING 52.75" FRON SIDE 1340 mm...
- Page 5 566 mm DOOR SWING 52.50" 1334 mm 43" 1093 mm FRON SIDE Figure 4: Model VCV6 Dimensions 30.75" 22.25" 781 mm 566 mm DOOR SWING 52.50" 1334 mm 78" 1981 mm FRON SIDE Figure 5: Model VCV13 Dimensions — 5 —...
-
Page 6: Installation Codes And Standards
AND STANDARDS service agrees with the specifications on the data plate located on the lower rear of the In the United States, the Vulcan-Hart oven cabinet. If the electrical service does not agree system must be installed in accordance with... -
Page 7: Electrical Connection
All cabinets are equipped with a durable, suitable, 8-ft. (2.4 m) cord and NEMA 5-15 plug as The VCV13 and VCV6 ovens are dual voltage, standard equipment. The cord and plug come factory wired for 208/240 Volts AC, single phase, with a proper strain relief to prevent unit from 50 or 60 Hz service. -
Page 8: Oven Controls
ON/OFF Indicator thorough cleaning. Light Switch Light Avoid splashing water into the Figure 6: VCV13 and VCV6 upper areas of the cabinet to prevent Operating Controls damage to electrical components or connections. Never spray the unit with a hose. Note: Never use harsh chemicals or abrasive pads to clean the cabinet. -
Page 9: Testing The Oven
VCV SERIES COOK AND HOLD OVEN SYSTEMS TESTING THE OVEN OPERATING THE OVEN Before using the oven for the first time, verify Preheat the oven cavity to the desired that the oven operates normally. temperature when the oven is first used for the day or whenever the compartment is cold. -
Page 10: General Cleaning
VCV SERIES COOK AND HOLD OVEN SYSTEMS MAINTENANCE GENERAL CLEANING STAINLESS STEEL CARE Interior Cleaning Wash the inside of the compartment with a Stainless steel contains 70-80% iron, which solution of mild detergent and warm water. will rust if not properly maintained. It also Rinse with warm water. - Page 11 VCV SERIES COOK AND HOLD OVEN SYSTEMS MAINTAINING DOOR GASKET(S) Preserving and Restoring Leaking and/or damaged door gasket(s) Special stainless steel polishing cleaners can cause inefficient and unsatisfactory operation preserve and restore the protective film. of the unit. Replace any door gasket(s) that Preserve the life of stainless steel with a regular are damaged or deformed.
-
Page 12: Troubleshooting
VCV SERIES COOK AND HOLD OVEN SYSTEMS TROUBLESHOOTING SYMPTOM POSSIBLE CAUSES REMEDY Oven not operating Oven is not plugged into Plug oven into correct power source as power source indicated on data plate. Fuse is blown Check fuse and replace if necessary. Power ON/OFF Switch is Press Power ON/OFF Switch to ON. -
Page 13: Wiring Diagrams
TEMPERATURE SWITCH COOLING OVEN COOLING ELEMENT COIL RELAY C C C ROASTING TEMPERATURE INDICATOR LIGHT LOAD LINE HOLDING ROASTING LOAD LINE THERMOSTAT THERMOSTAT HOLDING TEMPERATURE INDICATOR LIGHT Figure 8: VCV13 and VCV6 Wiring Diagram – Electro-Mechanical Control — 13 —... - Page 14 VCV SERIES COOK AND HOLD OVEN SYSTEMS DISTRIBUTION BLOCK POWER BLACK CONNECTION 110 V - 120 V HIGH-LIMIT WHITE THERMOSTAT 1 PH, 60 HZ 1500W GREEN ROCKER SWITCH REAR VIEW TEMPERATURE SWITCH BLOWER MOTOR OVEN COOLING ELEMENT COIL RELAY C C C ROASTING TEMPERATURE INDICATOR LIGHT LOAD...
- Page 15 VCV SERIES COOK AND HOLD OVEN SYSTEMS DISTRIBUTION BLOCK BLACK POWER HIGH LIMIT CONNECTION WHITE THERMOSTAT 110/120V 1PH, 60 HZ GREEN 1500W ON-OFF SWITCH TEMPERATURE SWITCH COOLING BLOWER MOTOR HEATING COOLING ELEMENT RELAY COIL COOK LIGHT LINE LOAD HOLD COOK THERMOSTAT THERMOSTAT TIMER...
-
Page 16: Service And Parts Information
VCV SERIES COOK AND HOLD OVEN SYSTEMS SERVICE AND PARTS INFORMATION To obtain service and parts information concerning this model, contact Vulcan-Hart or refer to our website: www.vulcanhart.com for a complete listing of Authorized Service and Parts depots. When calling for service, have the model number and serial number available.
