Page 1

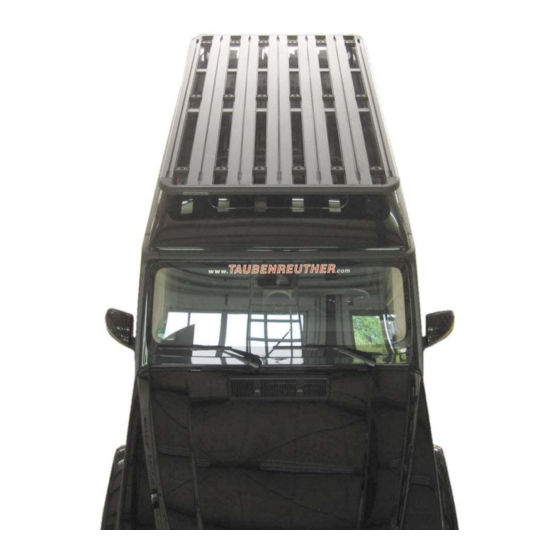

All manuals and user guides at all-guides.com Am Schwimmbad 8 95326 Kulmbach Tel. 09221 / 95620 Fax 09221 / 956222 e-mail: verkauf@taubenreuther.de Anbauanleitung: Befestigungsset für Dachträger und Plattformen auf Mercedes G500 463A ab 2018 2208-01 Best.Nr.: 50-TG500-0 Montagezeit: ca. 90 min.
Page 2
All manuals and user guides at all-guides.com Stückliste ***50-TG500*** Schraubensatz 6x 50-TG500 Befestigungsplatte (A) 4x Inbusschraube M6 x 35 V2A (a) 6x 50-TG501 Nutenstein M6 – Nut 8 (B) 2x Inbusschraube M6 x 30 V2A (b) 6x Zahnscheibe M6 V2A 1x Anbauanleitung 2208 Schrauben Anzugsmomente 5 Nm! Screw torque 5 Nm!
Page 3
All manuals and user guides at all-guides.com Hinten / rear Vorne / front Mitte / middle Original Schrauben verwenden! Einbauanleitung 50-RLT600 beachten! Use original screws! Observe installation instructions 50-RLT600! Bordwerkzeug verwenden, Siehe Bedienungsanleitung Fahrzeug! Use original tool, please see user manual of your car!
Page 4
All manuals and user guides at all-guides.com a oder b 90° Um 90° verdrehen und Schraube wieder entfernen! Turn 90° and remove the screw!
Page 5
All manuals and user guides at all-guides.com Position Nutenstein / Position slot nut...
Page 6
All manuals and user guides at all-guides.com Mitte / middle Vorne und hinten Schraube M6 x 35, mittig M6 x 30 verwenden! Use srew M6 x 35 for front and rear, M6 x 30 for the middle! Vorne / front vorne / front...
Page 7
All manuals and user guides at all-guides.com hinten / rear FRONT Streben ausrichten und ggf. bohren (Ø8,5)! Anleitung Dachträger beachten! Align the cross bars and drill if necessary (Ø8,5)! Follow the instructions for the roof rack!
Page 8
All manuals and user guides at all-guides.com vorne / front Anleitungen Fußkit und Dachträger befolgen! Follow instructions of the feet kit and the roof rack! Mitte / middle Anleitungen Fußkit und Dachträger befolgen! Follow instructions of the feet kit and the roof rack!
Page 9
All manuals and user guides at all-guides.com hinten / rear Anleitungen Fußkit und Dachträger befolgen! Follow instructions of the feet kit and the roof rack!
