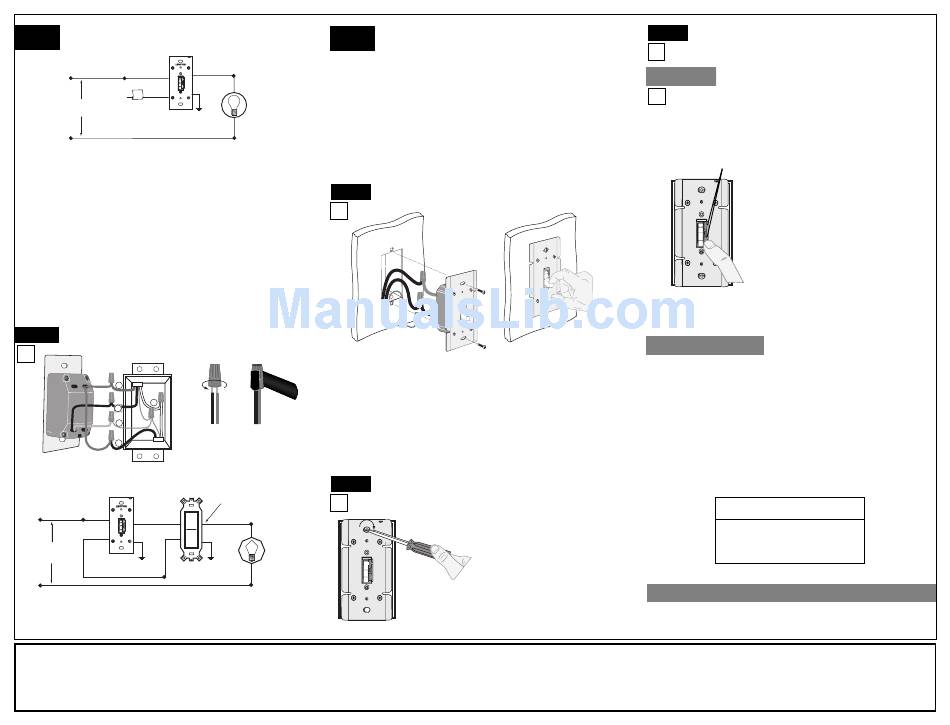

Single-Pole Wiring Application (600W device
Step 5a
depicted):
cont'd
Dimmer
Red
Hot (Black)
Black
Red
Insulating
Line
Label
120VAC, 60Hz
Green
Ground
Neutral (White)

Connect wires per WIRING DIAGRAM as follows:

Screw wire nuts on clockwise making sure no bare
conductors show below the wire connectors. Secure each
connector with electrical tape.
• Green dimmer Ground lead to Green or bare copper wire
in wall box.
• Black dimmer lead to any wall box wire removed from old
switch.
• Red dimmer lead without insulating label to remaining wall
box wire.
• Remaining Red dimmer lead should have Red insulation
label affixed.
NOTE: If insulating label is not affixed to Red lead, use a
small wire nut or electrical tape to cap off.
• Proceed to Step 6.
3-Way Wiring Application (600W device
Step 5b
depicted):
Red
4
Neutral
Tag
Black 2
1
Green 3
Ground
straight then twist
5
Red
Dimmer 3-Way Switch
Hot (Black)
Black
Red
Red
Line
120VAC, 60Hz
Green
Ground
Neutral (White)
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton's only obligation
is to correct such defects by repair or replacement, at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little
Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened,
abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied
warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without
limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Step 5b
cont'd
Black
Load
White
Step 6
NOTE: Dress wires with a bend as shown in diagram to relieve stress
when mounting device
• Position all wires to provide room in wall box for device.
• Partially secure device using long mounting screws provided.
Electrical
• Restore power at circuit breaker or fuse.
Tape
• Move toggle handle up. Lights should turn ON. If lights do not turn ON,
Insert wires
touch top touch pad to brighten the lights. Lights should brighten.
clockwise If lights still do not turn ON, refer to the TROUBLESHOOTING
section.
Common
Step 7
Terminal
(Black Screw)
Black
Load
Green
Ground
White
Connect wires per WIRING DIAGRAM as follows:
Screw wire nuts on clockwise making sure no bare
conductors show below the wire connectors. Secure each
connector with electrical tape.
NOTE: Control can be installed on either the Load or
Line side of the 3-way circuit.
• Green dimmer Ground lead to Green or bare copper wire
in wall box.
• Black dimmer lead to tagged (common) wall box wire
identified when removing old switch.
• Remove Red insulating label from Red lead.
• Any Red dimmer lead to any of the remaining
wall box wires.
• Remaining Red dimmer lead to remaining wall box wire.
Testing your Dimmer prior to completely
mounting in wall box (1000W device depicted):

Dimmer Mounting (1000W device depicted):

TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
• Installation may now be
completed by firmly tightening
mounting screws.
• Attach wallplate.
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS

Restore Power:

Restore power at circuit breaker or
Step 8
fuse. Installation is complete.

OPERATION

NOTE: On the lighted models, indicator light will illuminate when
the dimmer is in the OFF position to facilitate access in the dark.
NOTE: If using the dimmer in a 3-way application, the lights will
turn ON at brightness set on dimmer's touch pad. The lighting can
be controlled from either the dimmer or the switch location.
ON/OFF:
Touch Pad
Move toggle handle up – Lights will
turn ON.
Move toggle handle down – Lights will
turn OFF.
BRIGHTEN :
Touch top touch pad – Lights will
BRIGHTEN.
DIM:
Touch bottom touch pad – Lights will
DIM.
CLEANING:
1000W device
To clean touch plate, wipe it with a
depicted
clean damp cloth using clean water
only, dry thoroughly.

TROUBLESHOOTING

• Lights Flickering
- Lamp has a bad connection.
- Lamp power is less than 40W.
- Wires not secured firmly with wire connectors.
• Light does not turn ON and ON/OFF LED does not turn ON
- Circuit breaker or fuse has tripped.
- Lamp is burned out.
- Lamp Neutral connection is not wired.
For non-standard wiring applications, refer
to Wire Nut and Conductor Size Chart
WIRE NUT / # OF CONDUCTOR
COMBINATION CHART
1- #12 w/ 1 to 3 #14, #16 or #18
2- #12 w/ 1 or 2 #16 or #18
1- #14 w/ 1 to 4 #16 or #18
2- #14 w/ 1 to 3 #16 or #18

PRODUCT INFORMATION

• For technical assistance, contact us at 1-800-824-3005
• Visit our website at www.leviton.com
PK-93202-10-00-2A
