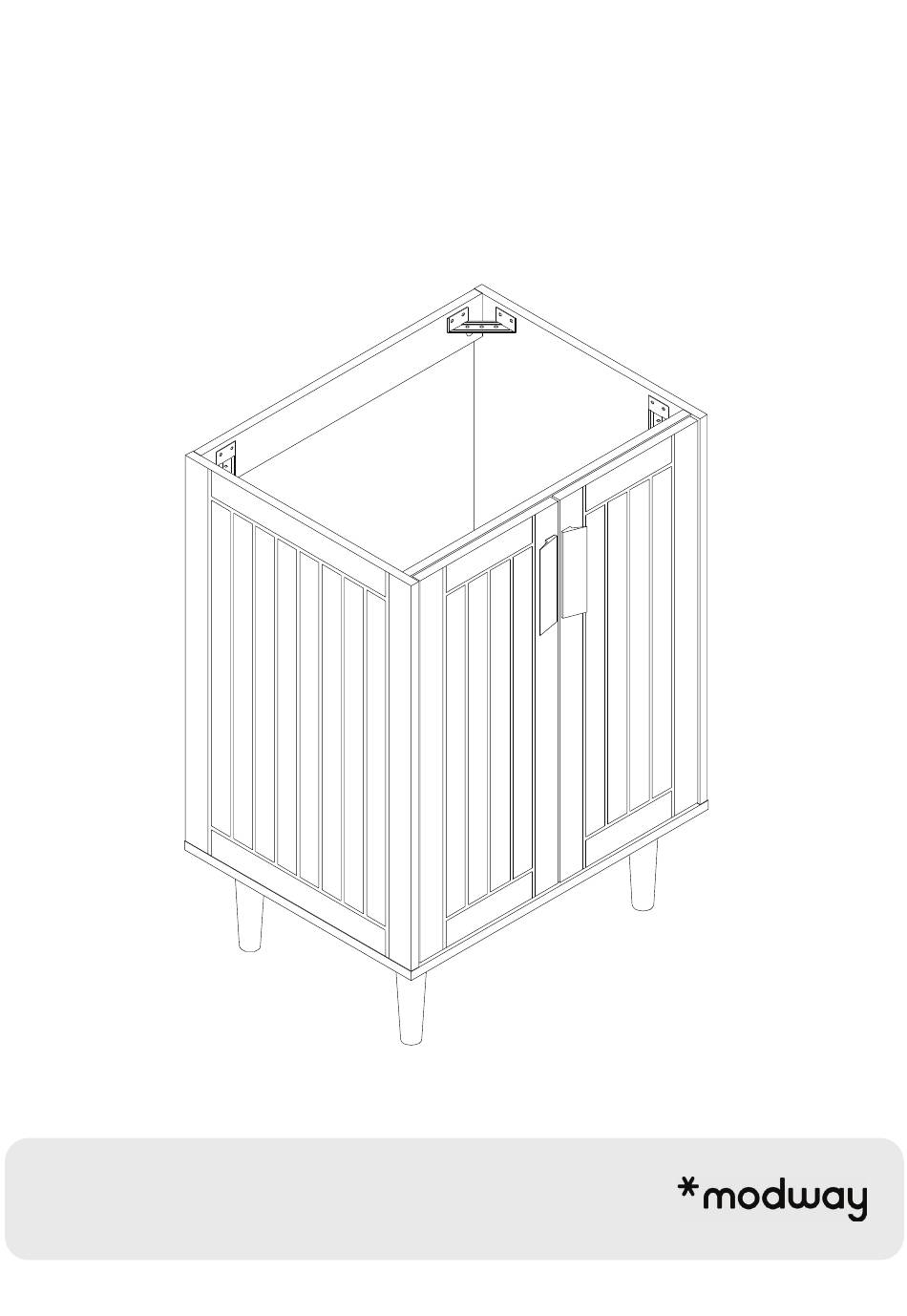

- Page 1 A S S E M B LY I N S T R U C T I O N S EEI−5877 V1.01.24.22 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com 780−199MD1−0...
-
Page 2: What You Need
Screw 4 x 30mm Screw 3.5 x 16mm Screw 4 x 20mm Stopper Screw 4 x 14mm Rubber Pad Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 2 OF 11 780−199MD2−0... - Page 3 Wood Dowel M8 x 25mm Front Panel Bottom Cam Bolt Ø6 x 24mm Front Front Bottom Screw 3.5 x 16mm Stopper PAGE 3 OF 11 780−199MD3−0...
- Page 4 Cam Lock Ø15 Front Panel Cam Lock Ø15 PAGE 4 OF 11 780−199MD4−0...
- Page 5 Screw 9 x 38mm Screw 4 x 30mm PAGE 5 OF 11 780−199MD5−0...
- Page 6 Shelf Support PAGE 6 OF 11 780−199MD6−0...
- Page 7 Screw 9 x 38mm Base Panel Screw 4 x 14mm Corner Bracket PAGE 7 OF 11 780−199MD7−0...
- Page 8 NOTE: Mounting hardware and tools are not included. We suggest professional installation. Hole = Ø PAGE 8 OF 11 780−199MD8−0...
- Page 9 Screw 4 x 14mm Hinges Door Panel Right Sold separately Handle Screw 4 x 20mm Screw 4 x 14mm Rubber Pad Adjust the hinges, if required. Adjust laterally Adjust height Adjust depth Temporarily remove/dismantle the Door & Shelf during Basin/Sink /Plumbing work installation work to prevent water damage.
- Page 10 Your sink basin comes complete with a silver overfl ow ring. If you'd like to remove this overfl ow ring, you can do so by hand. Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 10 OF 11 780−199MDA−0...
- Page 11 Clean using a non-abrasive cloth and a mild cleaner. Never use harsh chemicals, as they could damage the fi nish or integrity of the item. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE 11 OF 11 780−199MDB−0...
