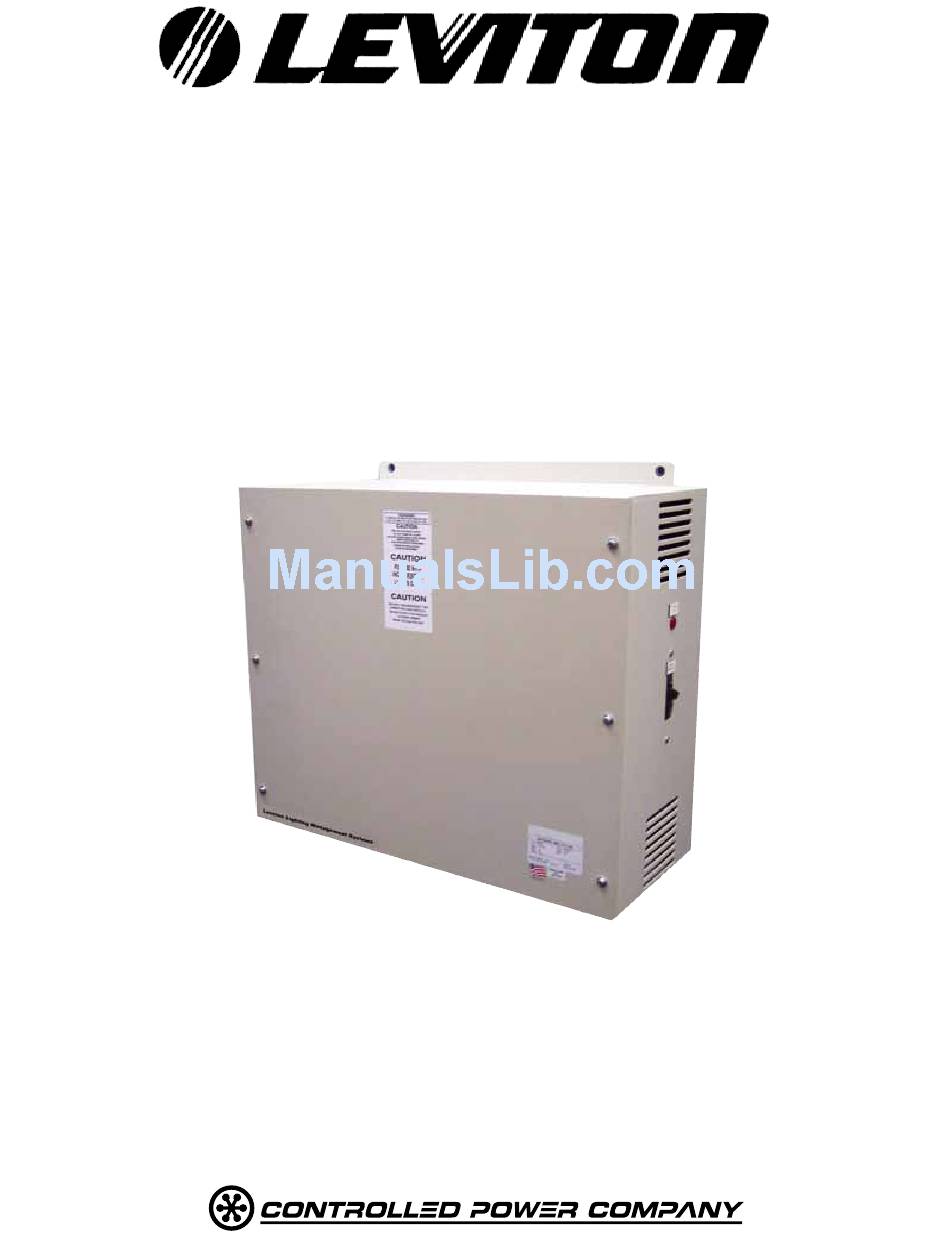

- Page 1 Leviton Lighting Management Systems MRIDC LIGHTING UNIT for MRI Room Lighting Applications OWNERS MANUAL IMPORTANT - SAVE THESE INSTRUCTIONS PLEASE READ THIS MANUAL BEFORE USING EQUIPMENT Manufactured by: PART # 110494...
-
Page 5: Table Of Contents
CONTENTS RECEIVING THE MRIDC DIMMER ... 6 INSPECTION ... 6 STORAGE ... 6 REMOVING THE MRIDC DIMMER FROM THE SKID ... 6 GENERAL DESCRIPTION / SAFETY PRECAUTIONS ... 7 PRELIMINARY INSTALLATION ... 8 CABINET DIMENSIONS, CLEARANCES AND WEIGHTS...9 INSTALLATION ... 10-11 DIMMER SWITCH INSTALLATION ...12-13... -
Page 6: Receiving The Mridc Dimmer
Safety precautions should be taken. Larger sizes should be lifted with a pallet jack or a fork lift. When removing the MRIDC Dimmer from the pallet and/or container, be sure to take proper safety precautions. Serious injury and/or unit damage can result from not taking proper precautions. -
Page 7: General Description / Safety Precautions
GENERAL DESCRIPTION In simple easy terms, the MRIDC Dimmer converts (AC) Alternating Current to (DC) Direct Current. The DC is filtered (conditioned) to have low AC ripple (a by-product of the conversion) for smooth DC power to the MRI room lights. -
Page 8: Preliminary Installation
PRELIMINARY INSTALLATION Selecting a Location The MRIDC Dimmer is provided in a steel enclosure suitable for mounting to a wall, the side of any existing equipment or Unistrut type mounting channel. The MRIDC Dimmer should be located in an area suitable for ®... -
Page 9: Cabinet Dimensions, Clearances And Weights
CABINET DIMENSIONS, CLEARANCES AND WEIGHTS (DC Watts) Ø 0.437 MOUNTING HOLES 21.500 22.500 18.000 24.000 10.000 24.000 BOTTOM VIEW SIZE Weight Dimensions (Lbs) 24" x 20" x 10" 1200 24" x 20" x 10" 2000 24" x 20" x 10" 3000 24"... -
Page 10: Installation
AC Input The AC input power to the MRIDC Dimmer is 120 volts, 1-phase, 60Hz. A dedicated feed with upstream fuse or circuit breaker protection is required. All wiring in and out of the MRIDC Dimmer enclosure should be made using conduit. -
Page 11: Installation
Refer to the Dimmer switch sheets supplied in this manual for Dimmer installation. The connection points for the Dimmer switch is inside the MRIDC Dimmer enclosure. Refer to “Appendix A - Component Location Diagram and Circuit Diagram”. There are two black wires on the dimmer switch for “two and three location”... -
Page 12: Dimmer Switch Installation
DIMMER SWITCH INSTALLATION Page 12... - Page 13 DIMMER SWITCH INSTALLATION Page 13...
-
Page 14: Set - Up
Tap selection must be based on the maximum load wattage (sum of the wattage of all lights connected to the MRIDC Dimmer output and select the tap rated slightly greater than the wattage). A minimum 30% load (of tap level) is required at all times. Improper tap selection may cause damage and will void the manufacturer warranty. -
Page 15: Start Up And Operation
START UP AND OPERATION Initial Power-up After the installation is complete, move the dimmer slide switch to the lowest (down) position. Turn on the Main input circuit breaker. Verify the Dimmer, on/off switch is in the “ON” position and slide the dimmer knob to a suitable illumination (setting). -
Page 16: Preventive Maintenance
PERSONNEL ONLY. Maintenance WARNING: Make sure the power is turned OFF at the source to the MRIDC Dimmer before cleaning. Due to the solid-state nature and natural convection cooling of the MRIDC Dimmer design, maintenance is generally not required. For dusty environments, it would be desirable to open the main cover and blow out the interior using clean dry compressed air limited to 60 psi. -
Page 17: Troubleshooting
TROUBLESHOOTING Leviton Technical Support 1-800-959-6004 Page 17... -
Page 18: Component Description
Tap selection must be based on the maximum load wattage (sum of the wattage of all lights connected to the MRIDC Dimmer output and select the tap rated slightly greater than the wattage). A minimum 30% load (of tap level) is required at all times. Improper tap selection may cause damage and will void the manufacturer warranty. -
Page 19: Specifications
SPECIFICATIONS Specifications Enclosure: NEMA 1 type, ventilated. Weight: 600W=77lbs. 1200W=82 lbs. 2000W=137 lbs. 3000W=175 lbs. Color: Commercial White Hi-Gloss Epoxy. AC Input: 120 volts, 1-phase, 60 Hz, 600W=7 amperes, 1200W=15 amperes, 2000W=26 amperes, 3000W=41 amperes. DC Output: 0-120 volt, 100% Duty rated with Transformer Power tap selection. DC Control: 600 Watt, Incandescent Dimmer Switch. -
Page 20: Warranty
Management Systems service person, without the written permission of Leviton Lighting Management Systems. 4. This Warranty is in lieu of all other warranties, expressed or implied. Leviton Lighting Management Systems neither assumes, nor authorizes any person to assume for it, any liability other than that specifically set forth in this Warranty. -
Page 21: Appendix A
APPENDIX A DRAWINGS SCHEMATICS Appendix Page A21... -
Page 22: Cabinet Outline
SYSTEM LAYOUT - CABINET DIMENSIONS... -
Page 23: Component Location Diagram
COMPONENT LOCATION DIAGRAM Mounting Holes Pilot Light Input Circuit Breaker Main Cover Access Panel Specification Power Filter DC Output Filter Transformer Choke Fuse Capacitors Input Circuit Breaker SCR Control Board DV/DT SCR SCR Rectifier AC Input Adjustment DC output Dimmer Protection Bridges Terminals... -
Page 24: Circuit Diagrams
CIRCUIT DIAGRAMS 600W Appendix Page A24... - Page 25 CIRCUIT DIAGRAMS 1200W Appendix Page A25...
- Page 26 CIRCUIT DIAGRAMS 2000W Appendix Page A26...
-
Page 27: Circuit Diagrams
CIRCUIT DIAGRAMS 3000W Appendix Page A27... -
Page 28: Symbols
SYMBOLS SHOCK CAUTION HAZARD Appendix Page A28... -
Page 29: Notes
NOTES Appendix Page A29...
