Instructions for Use
®
QuickPort F-Type Bulkhead
Module
DESCRIPTION

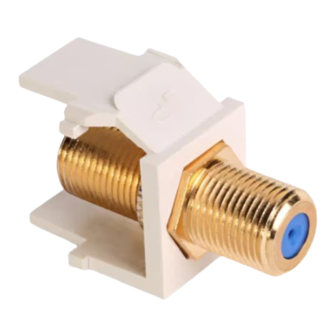

Leviton's QuickPort® F-Type Bulkhead Modules are
designed to snap into any QuickPort housing. Use
with other QuickPort connectors to create a
customized multimedia center for TV, VCR, DVD and
satellite applications.
INSTALLATION
1. Attach an appropriate connector to your cable
using the instructions provided by the
connector's manufacturer.
2. Connect cable to the back of the module and
rotate the module clockwise until the connector
is fully seated.
3. Snap the F-connector into the wallplate
according to that wallplate's instruction sheet.
Orient the "UP" designation on module, with
"UP" designation on wallplate.
IMPORTANT INSTRUCTIONS
1.
Read and understand all instructions. Follow all warnings
and instructions marked on the product.
2.
Do not use this product near water—e.g., near a tub,
wash basin, kitchen sink or laundry tub, in a wet base-
ment, or near a swimming pool.
3.
Never push objects of any kind into this product through
openings, as they may touch dangerous voltages.
4.
SAVE THESE INSTRUCTIONS.
SAFETY INFORMATION
1.
Never install communications wiring or components dur-
ing a lightning storm.
2.
Never install communications components in wet loca-
tions unless the components are designed specifically for
use in wet locations.
3.
Never touch uninsulated wires or terminals unless the
wiring has been disconnected at the network interface.
4.
Use caution when installing or modifying communications
wiring or components.
5.
To prevent electrical shock, each opening must be filled with a
module.
