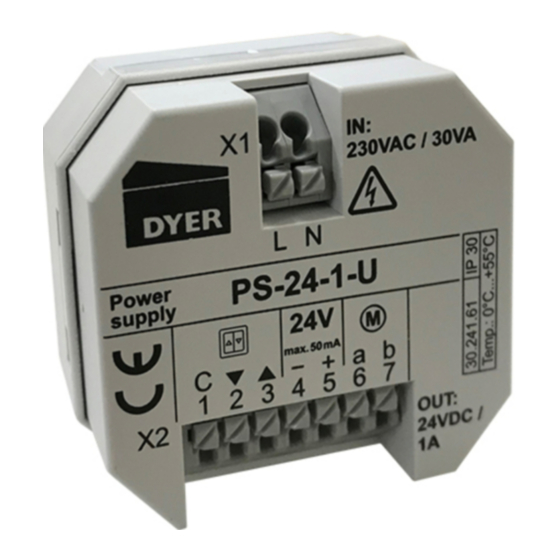

D+H PS-24-1-U Original Instructions

Original instructions
X 1
L
- 2 4
P S
2 4
r
w e
m a
l y
P o
p p
s u
4
3
C
2
1
X 2

WARNING

Read all safety warnings, instructions, illustrations and specifications
provided with this product.
Failure to follow all instructions listed below may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for future reference.

Safety notes

Operating voltage 230 V AC!
Risk of injury from electric shock!
Connection must be carried out by a certified electrical technician.
- Use only in dry rooms.
- Do not lay 24 V DC and 230 V AC cables in the same cable duct!
- Use unmodified original parts only.
- Observe the drive instructions for use.

Maintenance and cleaning

Maintenance work is only allowed when the device is in a de-energized
condition! Inspection and maintenance has to be carried out according to D+H
maintenance notes. Only original D+H spare parts may be used. Repair is to be
carried out exclusively by D+H.
Wipe away debris or contamination with a dry, soft cloth.
Do not use cleaning agents or solvents.
99.827.11 1.1/09/22

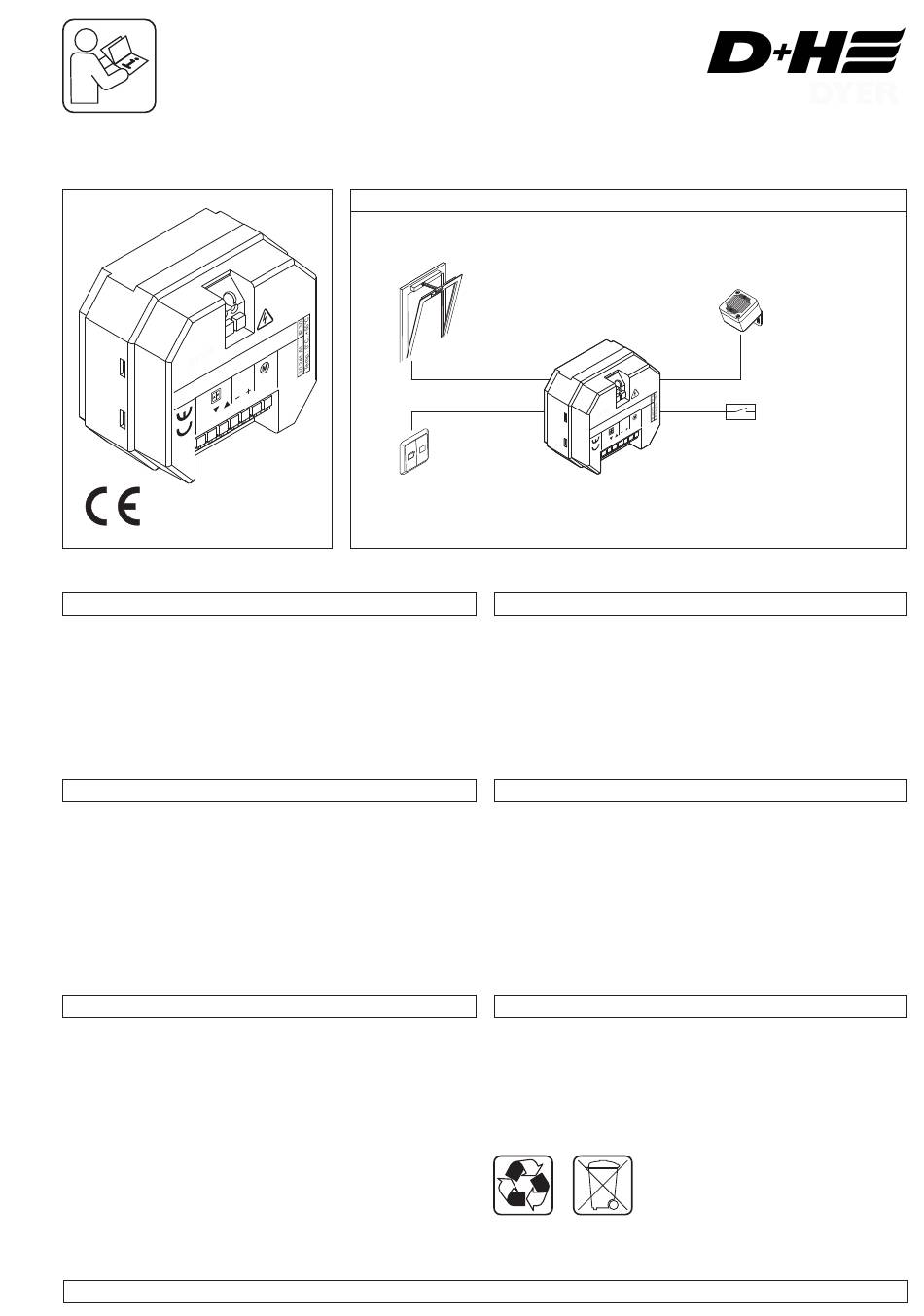

Example for Application
A
0 V
/ 3
I N :
A C
0 V
2 3
N
U
- 1 -
V
b
m A a
0 7
x . 5 T :
C /
6 O U
V D
5
2 4
1 A
* optional function extension (separate components retrofitable)
ventilation drive*
X 1
P S
r
w e
l y
P o
p p
s u
vent button*
C
2
1
X 2

Intended use

- Compact ventilation control for separate rooms and conservatories
- For triggering of 24 VDC drives
- 1 ventilation group
- 1 A total actuating current
- Ventilation safety function (key operation OPEN/CLOSE)
- Possibility of connecting rain detector or wind/ rain detector
- For installation in branch box provided on site
- Only for inside mounting

Technical Data

Type : PS-24-1-U
Power supply : 230 V AC 50 Hz
Power : 30 VA
Class of rating : short-time duty, 20%
Output : 24 V DC, max. 1 A
Ripple : <= 1%
Ingress protection : IP 30
Temp. range : -0 ... +50 °C
Housing : plastic
Dimensions : 50 x 48 x 28 mm WxHxD

Disposal

Electrical devices, accessories, batteries and packaging should be sorted for
environmental-friendly recycling.
Do not dispose electrical devices and batteries into household waste!
Only for EC countries:
According the European Guideline 2012/19/EU for waste electrical and
electronic equipment and its implementation into national right, electrcal
devices that are no longer usable must be collected separately and dispo-
sed of in an environmentally correct manner.
PS-24-1-U
rain detector*
A
0 V
/ 3
I N :
A C
0 V
2 3
external control*
N
L U
- 1 -
- 2 4
V
2 4
b
m A a
0 7
x . 5 T :
C /
m a 6 O U
5 V D
2 4
4
1 A
3
1/2
