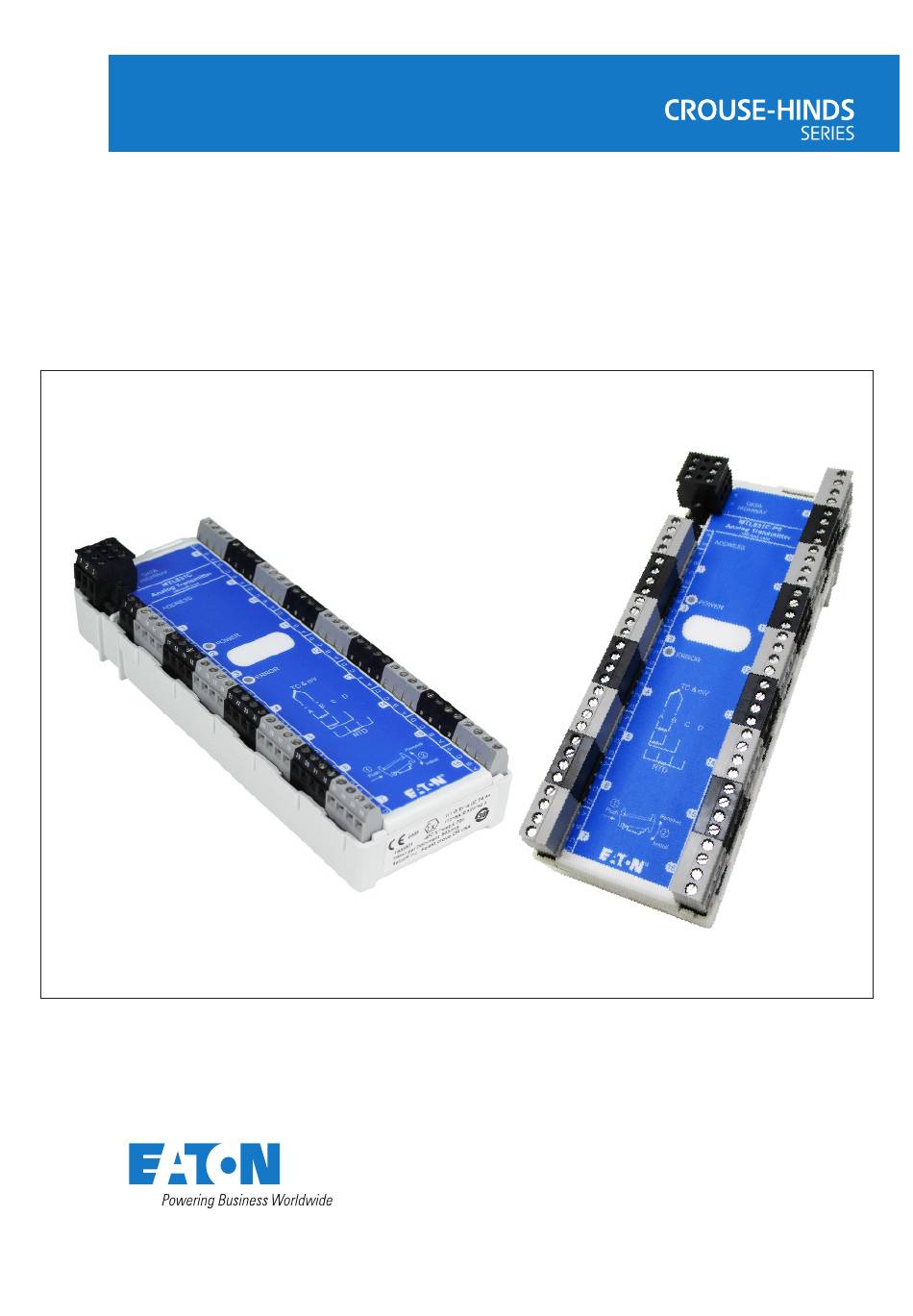

- Page 1 Instruction manual with Ex Safety Instructions (503-215 & 503-548) September 2022 MTL intrinsic safety solutions INM MTL831C Rev 7 MTL831C/MTL831-PS Analog Transmitter...
-
Page 2: Declaration Of Conformity
DECLARATION OF CONFORMITY A printed version of the Declaration of Conformity has been provided separately within the original shipment of goods. However, you can find a copy of the latest version at - http://www.mtl-inst.com/certificates INM MTL831C Rev 7... -
Page 3: Table Of Contents
Disposal ................22 INM MTL831C Rev 7... -
Page 4: General Safety Information
No changes to any of the components that might impair their explosion protection are permitted. If any information provided here is not clear: • Contact Eaton’s MTL product line support or one of its representatives. NOTE Improper installation and operation of the enclosure can result in the invalidation of the warranty. -
Page 5: About This Manual
MTL831C Analog Transmitter Figure 1 . 1 - MTL831C Analog Transmitter CAUTIONARY NOTE: In common with all other electrical apparatus installed in hazardous areas,this apparatus must only be installed, operated and maintained by competent personnel. Such personnel shall have undergone training, which included instruction on the various types of protection and installation practices, the relevant rules and regulations, and on the general principles of area classification. -
Page 6: Product Description
Zone 0 hazardous areas or hazardous locations. The MTL831C/MTL831C-PS can monitor up to 16 inputs from THC or millivolt sources or 2, 3 or 4-wire RTDs or potentiometers. Multiple versions of the MTL831C/ MTL831C-PS are available to support fixed and pluggable screw terminal input options. -
Page 7: Components And Accessories
4 .2 .1 Mounting on T-section DIN-rail To install, tilt the MTL831C/MTL831C-PS to the left and hook to the left side of the standard 35mm DIN46277 T-section rail. Push to the right and allow the unit to rotate down to sit flat on the DIN Rail. Allow it to spring back to the left and the right side will hook to the DIN Rail. -
Page 8: Connections
5 .1 Address Leaving these two pins (A, S) open, sets the address of the MTL831C/MTL831C- PS to “1” . A jumper on these two pins sets the address to “2” . Either is valid for a system with only one MTL831C/MTL831C-PS connected to the MTL838C. When two MTL831C/MTL831C-PSs are connected to a single MTL838C, they must be addressed uniquely. -
Page 9: Electrical Connections
Sensors connected to the MTL831C/MTL831C-PS should not be earthed. This avoids differences in earth potential that could affect measurement accuracy or damage the MTL831C/MTL831C-PS. If sensors must be earthed they should be POWER located close to each other to avoid differences in earth potential. -
Page 10: Thc Burnout Detection
The data highway connection is also the source of DC power for the MTL831C/ MTL831C-PS. It is important that the polarity of the wiring on the “+” and “-“ terminals is correct. A shielded twisted-pair wire is recommended. The “S” terminal is wired to the cable shield. -
Page 11: Is Applications
Connect the data highway to a receiver for MTL831C/MTL831C-PS Transmitter #1 as in diagram below. Connect the MTL831C/MTL831C-PS Transmitter #1 data highway (+, S, and – terminal) to the equivalent terminals on a MTL831C/MTL831C- PS Transmitter #2. Install a jumper wire between the Address terminals (A and S) on MTL831C/MTL831C-PS Transmitter #2. - Page 12 MTL5553. The screen of a Data Highway cable between the MTL831C/MTL831C-PS transmitter and MTL5553 isolator is earthed to a local instrument earth in the MTL831C/MTL831C- PS’s field enclosure or the at the MTL5553’s enclosure.
-
Page 13: Routine Maintenance
Modbus. Note that the configuration data is actually held in the MTL838C for one or two MTL831C/MTL831C-PS Transmitters – depending on how many are connected. If an MTL831C/MTL831C-PS must be replaced for some reason, its configuration is automatically transmitted from the MTL838C to the MTL831C/MTL831C-PS when it is powered up. -
Page 14: Start Up And Infrequent Measurements
FAULT-FINDING IN THE MTL831C/MTL831C-PS The following are some tips when the system does not seem to be functioning correctly. If you are still unable to solve the issue, please contact Eaton Technical Support for help. The POWER light is not ON or blinking •... - Page 15 • Use the PC software to check the diagnostic information. • Try rebooting each device connected to the data highway one at a time. • Contact Eaton for assistance if the source of the issue cannot be found. The POWER and ERROR lights alternately turn on and off •...
-
Page 16: Fm, Atex And Iecex Information
FM, ATEX, and IECEx Information INM MTL831C Rev 7... - Page 17 INM MTL831C Rev 7...
- Page 18 INM MTL831C Rev 7...
- Page 19 INM MTL831C Rev 7...
- Page 20 INM MTL831C Rev 7...
- Page 21 INM MTL831C Rev 7...
- Page 22 INM MTL831C Rev 7...
-
Page 23: Ccc Information
CCC INFORMATION INM MTL831C Rev 7... - Page 24 INM MTL831C Rev 7...
- Page 25 INM MTL831C Rev 7...
-
Page 26: Maintenance
13 .2 Disposal Product - End of Life Eaton’s MTL product line sells products world-wide that must meet the environmental and regulatory requirements of different countries and regions. European directives on Waste Electronic and Electronic Equipment (WEEE) define the requirements on a producer to provide for the end-of-life recovery and recycling of electronic products when they become waste at the end of their life. - Page 27 Tel: + 44 (0)1582 723633 Fax: + 44 (0)1582 422283 right to make design changes. THE AMERICAS: E-mail: mtlenquiry@eaton.com +1 800 835 7075 www.mtl-inst.com mtl-us-info@eaton.com © 2022 Eaton ASIA-PACIFIC: All Rights Reserved +65 6 645 9888 Publication No. INM MTL831C Rev 7 210922 September 2022 sales.mtlsing@eaton.com...
