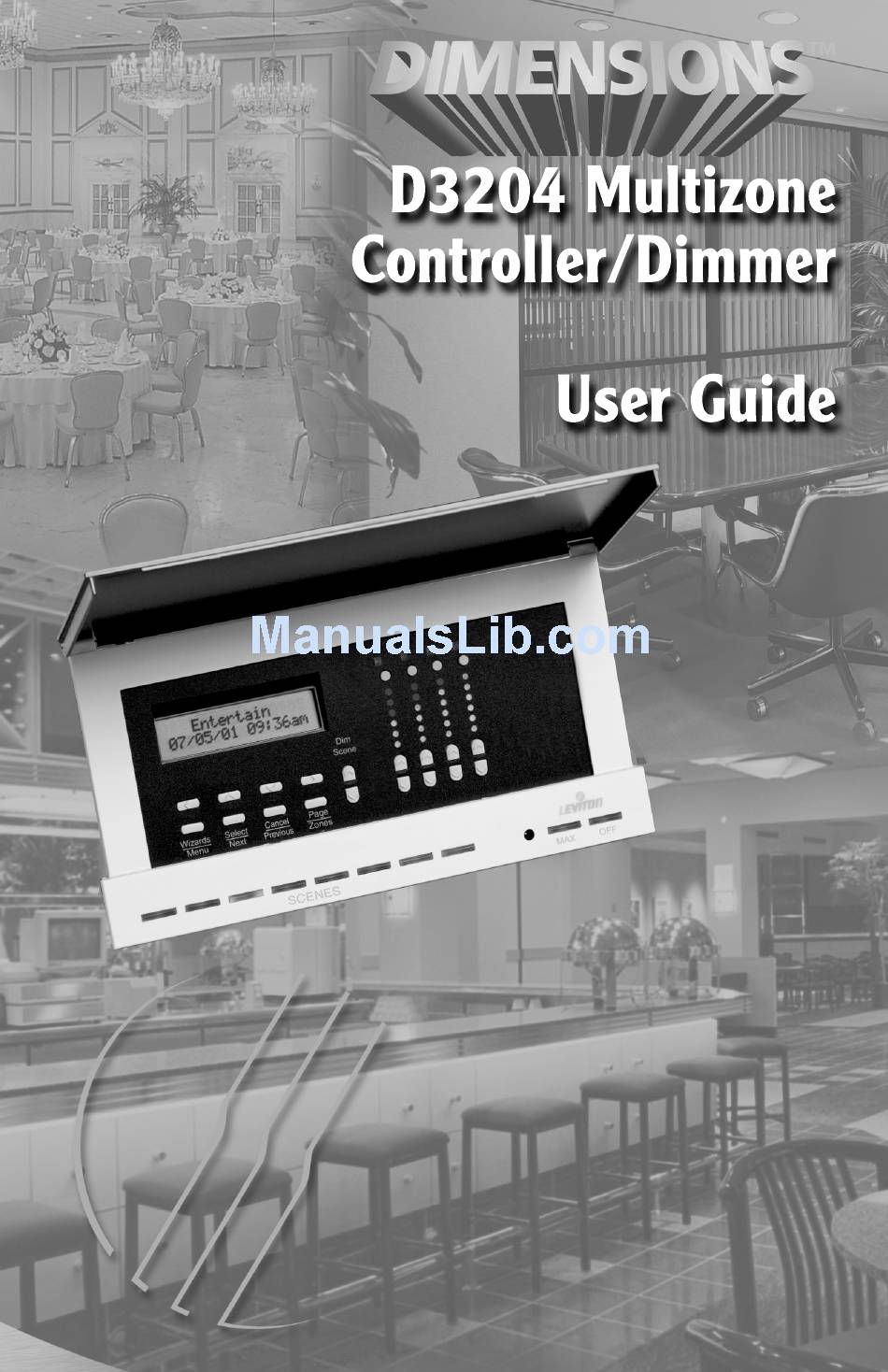

µ-Dimension D3204 User Manual

Multizone controller / dimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for µ-Dimension D3204

Summary of Contents for µ-Dimension D3204

  • Page 2: Table Of Contents

    TABLE OF CONTENTS FEATURES ... 1 INTRODUCTION ... 2 DESCRIPTION ... 3 SPECIFICATIONS ... 4 QUICK REFERENCE GUIDE ... 5 INSTALLATION INSTRUCTIONS ... 7 USER INTERFACE ... 13 PROGRAMMING AND OPERATION ... 14 MENU TREE ... 27 TROUBLESHOOTING ... 28 APPENDIX Latitude/Longitude Chart ...

  • Page 3: Features

    PC based programming through D3200 Setup Software and Leviton SmartJack • Access first 8 scenes using Leviton Hand-held IR Remote, Cat. No. NE210 • Learning mode for standard hand-held IR remote • Automatically turn ON/OFF lights at dusk and/or dawn (astronomical clock) •...

  • Page 4: Introduction

    The Leviton Multizone Zone Controller/Dimmer, Cat. No. D3204, provides advanced, multi-point scene control for commercial and high-end residential lighting applications. The D3204 is a user-friendly, self-contained unit that can be used to control—at one time from the front panel—up to four zones of lighting in a room or group of rooms via a series of push-buttons and “Wizard”...

  • Page 5: Description

    As part of a much larger family of digital controls and systems, the D3204 can communicate with other LCnet control stations across its high-speed fault tolerant serial data line.

  • Page 6: Specifications

    Transformer, Advance Transformer Mark 10™ Powerline Electronic Fluorescent Dimming Ballast, Neon, Cold Cathode, and non-dimming loads UL Listed, CSA Certified, California Title 24 (D3204-1) CE (D3204-2) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:...

  • Page 7: Quick Reference Guide

    QUICK REFERENCE GUIDE Use this section for a quick reference for an overview of the operational features of the D3204 Multizone Controller. For customizing features, please refer to the Programming/Operation section of the manual. CALL SCENE: Used to choose which of the 32 programmed scenes are to be called or activated.
  • Page 8 Wizard, Step 12 to include remote panels on the network. • When controlling a remote from a D3208 from a D3204, panel A will control the first 4 zones (1-4), and panel B will control the last 4 zones (5-8).

  • Page 9: Installation Instructions

    INSTALLATION INSTRUCTIONS WARNING: TO BE INSTALLED AND/OR USED IN ACCORDANCE WITH APPROPRIATE ELECTRICAL CODES AND REGULATIONS. WARNING: IF YOU ARE NOT SURE ABOUT ANY PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICIAN. WARNING: DO NOT CONNECT LINE VOLTAGE WIRES TO LOW-VOLTAGE TERMINALS.
  • Page 10 Load 1 terminal means that those fixtures will be the first Zone on that Multizone Controller. The D3204 does allows you to change these zone numbers, if you desire. 6. Low-Voltage Wiring (If LCnet wiring is required): NOTES: •...
  • Page 11 7. Carefully position all wires to provide room in wall box for Multizone Controller. Mount Controller to raised cover using the screws provided (refer to Figure 1). 8. Restore power at circuit breaker or fuse. 9. Check for power to the Multizone Controller by verifying that the GREEN LCD on the front of the unit is displaying the Dimensions D3200 main screen.
  • Page 12 INSTALLATION INSTRUCTIONS MULTIZONE CONTROLLER MOUNTING FIGURE 1 4 GANG BOX (4-1/2" WIDE X 2-1/2" DEEP) OVERLAY CONTRAST ADJUSTMENT (under Overlay) FRONT DOOR COVER 4 GANG RAISED COVER (1/2" or 3/4" DEPTH) RAISED COVER MOUNTING SCREW (4 PLACES) DIMENSIONS MULTIZONE CONTROLLER / DIMMER...
  • Page 13 MULTIZONE CONTROLLER WIRING DIAGRAM 1 DISTRIBUTION PANEL GROUND LINE NEUTRAL LOAD 1 LOAD 3 INSTALLATION INSTRUCTIONS FIGURE 2 DIMENSIONS MULTIZONE CONTROLLER / DIMMER Blue/White LCnet Green/White LOAD 2 LOAD 4 Green To D3200 Blue Components...
  • Page 14 INSTALLATION INSTRUCTIONS MULTIZONE CONTROLLER WIRING DIAGRAM 2 Low-Voltage Wires (Plug-in Connector) Insulation Electrical Tape Shrink Tubing 3M FP-301-1 Panduit HSTTP00-Q Panduit TV105-1.0L FIGURE 3 4 GANG BOX (4-1/2" WIDE X 2-1/2" DEEP) RACO PART #943 STEEL CITY PART #H4BD3/4-1 LOADS 2, 4 4 GANG RAISED COVER (1/2 or 3/4"DEPTH) RACO 3/4"...

  • Page 15: User Interface

    MULTIZONE CONTROLLER USER INTERFACE Wizards Select Cancel Menus Next Previous SCENES 1) Function/Previous Field Button (programming) / Shortcut Button (change scene bank from main screen) (Pgs. 14 and 17). 2) 2 Line x 16 Character Display (LCD). 3) Function/Change Option Button (programming) (Pgs. 14 and 17). 4) Function/Next Field Button (programming) / Shortcut Button (change scene bank from main screen) (Pgs.

  • Page 16: Programming And Operation

    PROGRAMMING AND OPERATION PROGRAMMING Control Buttons (refer to Figure 4): With the cover closed, you can access the SCENE PROGRAMMING/RECALL, MAX, and OFF buttons. With the cover open, you can access the LCD Display, the Wizard/Menus, Select/Next, Cancel/Previous, Page Zones, Dim Scene, Dim/Bright, Zone Info, and Function/Shortcut buttons.
  • Page 17 A group is a collection of zones (i.e., loads 01-04) used to light a specfic area that is assigned a group number. A maximum of 64 groups may be programmed to the D3204. Each zone will belong to a group (refer to Figure 6 for example of programming).
  • Page 18 PROGRAMMING AND OPERATION All 4 Panels operate together Group 2 - Panels 1A and 2A operate together Group 3 - Panels 1B and 2B operate together All rooms and panels work independently of each other FIGURE 6 GROUPING EXAMPLES D320X D320X Panel 1A Panel 1B...
  • Page 19 TO PROGRAM and OPERATE: Pressing the Wizards button (refer to Figure 4) on the front panel of the Multizone Controller will help run through the Setup and Programming necessary to set desired scene lighting levels and timed events. NOTE: Additional Dimensions/LCnet compatible devices may have programmable features accessible in the menu tree.
  • Page 20 The Lock Off mode provides full accessibility to all functional buttons. Press the Select/Next button to save entry and proceed. 8. When using more than one D3204: Press the Up or Down button to select the desired Panel (01A, 1B...31A). This setting is used to give unique addresses to each Multizone Controller if using a multiple Multizone Controller configuration.
  • Page 21 panels are to be accessed from this panel using the Page Zones button. Press the Select/Next button to save entry and proceed. NOTE: If only one Panel is installed, but programming of additional Panels has been selected and Included, the Exclude default option will set automatically.
  • Page 22 PROGRAMMING AND OPERATION NOTE: Two Channels cannot be mapped to the same Channel number. You must first change the Channel to an “X”, which is a place holder (i.e., to change 1 to 4, first change the 4 to an “X”, than change the 1 to a 4.
  • Page 23 CLOCK WIZARD programming and return to the Main Screen. PROGRAMMING AND OPERATION Accessing and properly selecting the settings in this , v or SEL > Info Dimensions D3204 Version 1.6.00 Period=16649 us L=061 C R=069 C Use , v or SEL <CLOCK WIZARD>...
  • Page 24 PROGRAMMING AND OPERATION SCENE WIZARD – operation of up to 32 lighting scenes. Naming of device and lighting scenes gives user-friendly control of lighting loads. Proceed as follows: Call Scene – Used to choose which of the 32 programmed scenes are to be called or activated.
  • Page 25 2. Press the Up or Down button to select the Program Scene screen. 3. Press the Select/Next button to access the Program Scene screen. 4. Press the Up or Down button to select the desired Scene (1-32). Press the Select/Next button to save entry and proceed.
  • Page 26 PROGRAMMING AND OPERATION Set Scene Group – or Scene Buttons 1-8) are made for the group chosen here. Proceed as follows: 1. Press the Wizards button and then the Up or Down button (if necessary) to select the SCENE WIZARD. Press the Select/Next button to access the SCENE WIZARD.
  • Page 27 Exclude Zones – executing in a programmed scene. Proceed as follows: 1. Press the Wizards button and then the Up or Down button (if necessary) to select the SCENE WIZARD. Press the Select/Next button to access the SCENE WIZARD. 2. Press the Up or Down button to select the Exclude Zones screen.
  • Page 28 PROGRAMMING AND OPERATION Lock/Unlock – Used to program the locking or unlocking of individual zones. Locked zones will stay at set level unless unlocked. Proceed as follows: 6. Press the Select/Next button to access the ZONE WIZARD. 7. Press the Up or Down buttons to select the Lock/ Unlock screen.

  • Page 29: Menu Tree

    3B.To Modify an existing Timer: Press the Select/ Next button to access the programmed Timer screen. Press the Down button to scroll through the existing Timers. Press the Select/Next button to select the desired Timer to modify. Proceed as follows: 4.
  • Page 30 PROGRAMMING AND OPERATION 8. Press the Up or Down buttons to select the Timer Status (DELETE, ENABLE, DISABLE). Press the Select/Next button to save entry and proceed. 9. Repeat procedure for setting up additional Timers. 10. Press the Select/Next button to return the TIMER WIZARD screen. NOTE: For Auto OFF applications, a “Start Time”...
  • Page 31 Location Setup – The Multizone Controller will calculate the dawn/dusk times based on the Latitude/Longitude selected. 20. Press the Select/Next button to access the TIMER WIZARD. 21. Press the Up or Down buttons to select the Location Setup screen. 22. Press the Select/Next button to access the Location Setup menu.
  • Page 32 PROGRAMMING AND OPERATION 33. Press the Up or Down buttons to select the Next Time Event screen. 34. Press the Select/Next button to view the Next Time Event menu. 35. Press the Select/Next button to save entry and proceed. Auto OFF – Auto OFF is an energy savings feature where the lights will automatically turn OFF after a warning blink to maximum, unless a Scene, or Zone Dim/Bright button is pressed to override this feature.
  • Page 33 IR WIZARD – The IR WIZARD allows for the programming and remote control of up to 32 lighting scenes, as well as MAX, OFF and GROUP DIM/ BRIGHT using any standard IR Remote. NOTE: Learning IR option must be programmed in SETUP WIZARD in order to access this IR WIZARD.
  • Page 34 PROGRAMMING AND OPERATION 12. Press the Select/Next button to remove the selected Action. Press the Select/Next button to save entry and proceed. 13. Repeat procedure for removal of additional commands. 14. Press the Wizards button to return the Main Screen. Code Removed...
  • Page 35 MENU TREE HIGH LEVEL MENU TREE NOTE: This sequence shows the order in which each menu will appear when scrolling through the menus using the Down Function Button.

  • Page 36: Troubleshooting

    Power: 1. Check for power to EACH Multizone Controller by verifying that the LCD on the front of each unit turns ON. If all are, THE D3204 HAS PASSED THE TEST. IF NOTHING ILLUMINATES there may be a problem with the power.
  • Page 37 YOU PUSH there must be a short. • Before you replace the D3204 with a new one, make sure that the Loads you plan on attaching to the D3204 are within the limits rated by the device. The D3204 unit is rated for the following maximum capacity: D3204-1 1920W/VA per unit, 1000W/VA per zone, and 1200W/VA per side.
  • Page 38 1. First make sure all attached devices are in a single group. 2. Press a scene button and make sure that the other D3204’s go to that same scene. The same scene button should light up on each unit. If this works as expected, the D3204 HAS PASSED THE TEST.
