7. Accessories

—

7.1 Auxiliary contacts

7.1.1 Mounting of auxiliary contacts

M M
M a n .
M M
M a n .

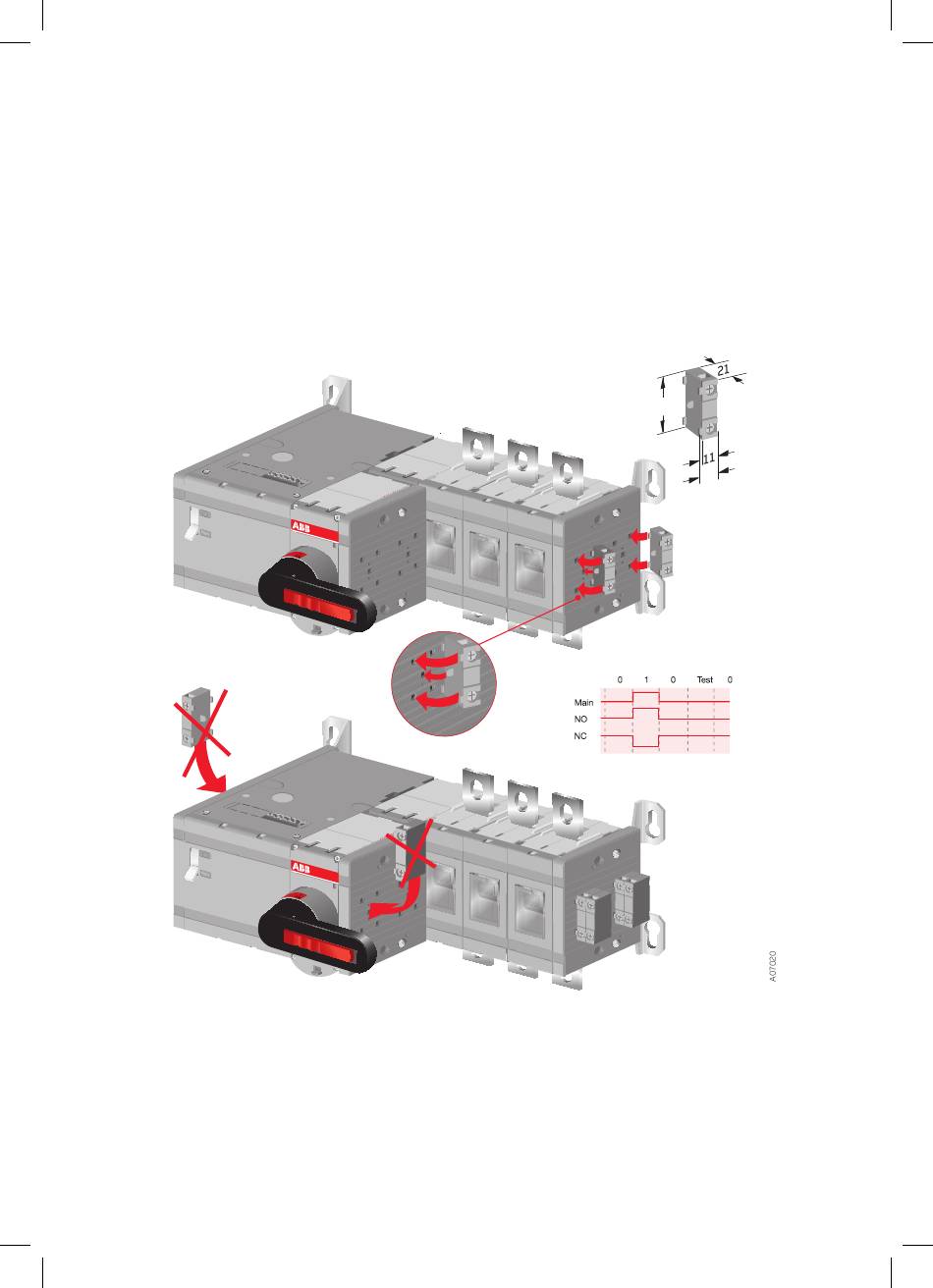

Figure 7.1 Mounting of auxiliary contacts, type OA_ on the right side of the switch-disconnector
3 7
1 3
1
2
Max. 2+2
3
OA1G10 (NO)
OA3G01 (NC)
