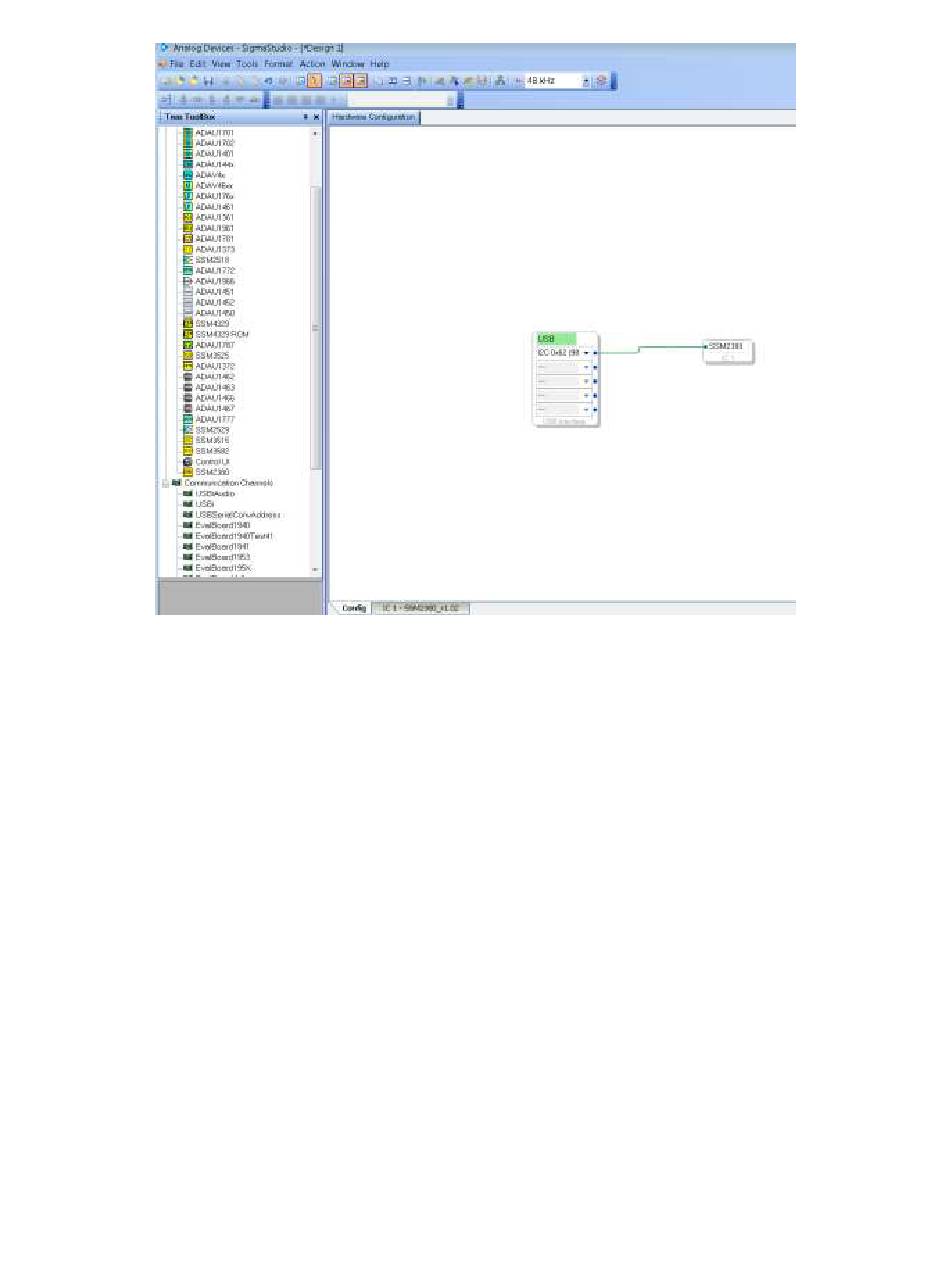

Figure 4. Hardware Configuration
Click the "IC 1 – SSM2380_v1.02" tab on the bottom of the screen. This tab allows the user to make I2C
writes to the SSM2380 using GUI buttons. Make the desired selections and once a program has been
setup, it can be run by clicking the "Link Compile Download" button, as shown in Figure 5. Note, if the
I2C writes are successful the bottom right corner of the screen will show "Active: Downloaded" and if
there is an I2C communication issue it will show "Compiled, Communications Error."
