Summary of Contents for Analog Devices Hittite HMC-T2220

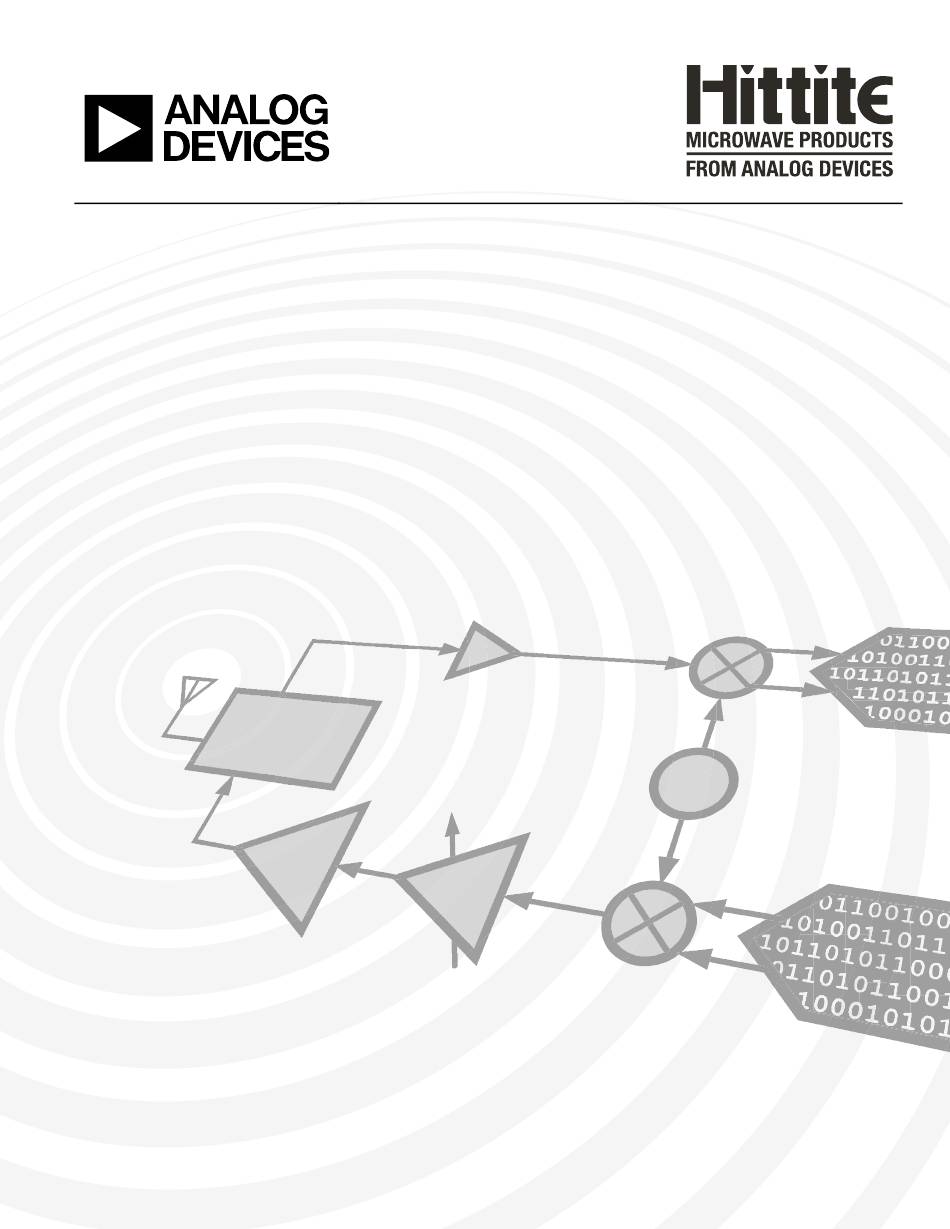

- Page 1 Analog Devices Welcomes Hittite Microwave Corporation NO CONTENT ON THE ATTACHED DOCUMENT HAS CHANGED www.analog.com www.hittite.com...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...

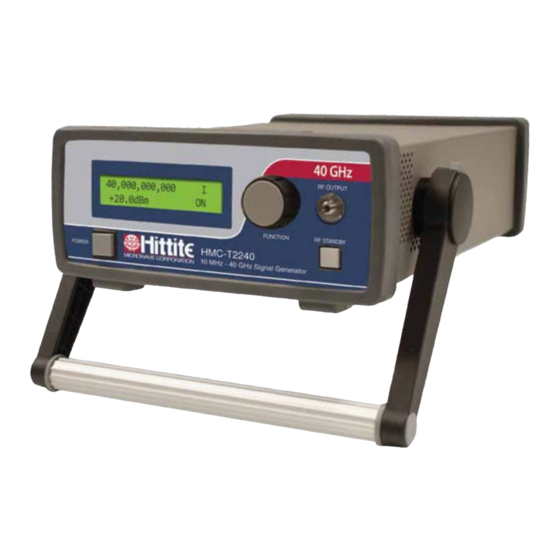

- Page 3 HMC-T2220/40/70 HMC-T2220B HMC-T2200 Synthesized Signal Generator Family 131195 Rev E v03.0611 ECN# CP111965 Quick Start Guide Installation & Setup Guide for HMC-T2220, HMC-T2220B, HMC-T2240, HMC-T2270 HMC- T2220/40/7 C-T2220B...
- Page 4 Contents of Box 1. Signal Generator 2. Installation Disk 3. Power Supply 4. Power Cord 5. Batteries (For HMC-T2220B only) Battery Installation (For HMC-T2220B only) • Disconnect power supply from unit. • Remove battery access cover on the top side of enclosure by loosening the 2 screws. •...
- Page 5 Connect to PC • If you are using USB, please install the driver BEFORE connecting the Signal Generator. Connect a USB cable (not supplied) between the port at the rear of the unit and a PC. If you are using GPIB or Ethernet, you do not need the driver on the CD. Note: You will need a USB connection temporarily to confi gure the Ethernet.
- Page 6 Select the desired components with the check boxes, then click the install button. The following window will be displayed during the install process. This window shows status of the install. If you do not have .NET Framework version 3.5 installed on your computer, you will see the following message: Press “Yes”, and follow instructions to install the .NET Framework 3.5 from the Microsoft website.
- Page 7 When installing under Windows XP, you may get the following message: Press “Continue Anyway”. You should not get any warnings from Windows 7 or Vista. If you select to install the “HMCSynth DLL” and you already have the “HMCSynth DLL” installed on your computer, you will see the following message Press “Yes”...
- Page 8 Press “Yes” to continue. If you select to install the “T2100 USB Driver” and you already have the “T2100 USB Driver” installed on your computer, you will see the following message: Press “Yes” to continue. If you select to install the “T2200 Calibration” and you already have the “T2200 Calibration” installed on your computer, you will see the following message: You need to install the MATLAB Compiler Runtime library for the HMC-T2200 Calibration application: Press “Yes”...
- Page 9 If you select “T2200 Firmware Updater”, a revision list window will display: Select the SW/FPGA revision and press “Next”. A fi le “ReadMe” will be displayed, follow the instructions for the whole update process. Type the COM port numbers for Microcontroller/FPGA update, then press “Install”. It will take about 15 - 30 minutes for the whole update process.
- Page 10 Select “Close”. The installation of all software components is fi nished. Technical Support Please contact TE@hittite.com or call (978) 250-3343 and request the Instrumentation Product Support department.
