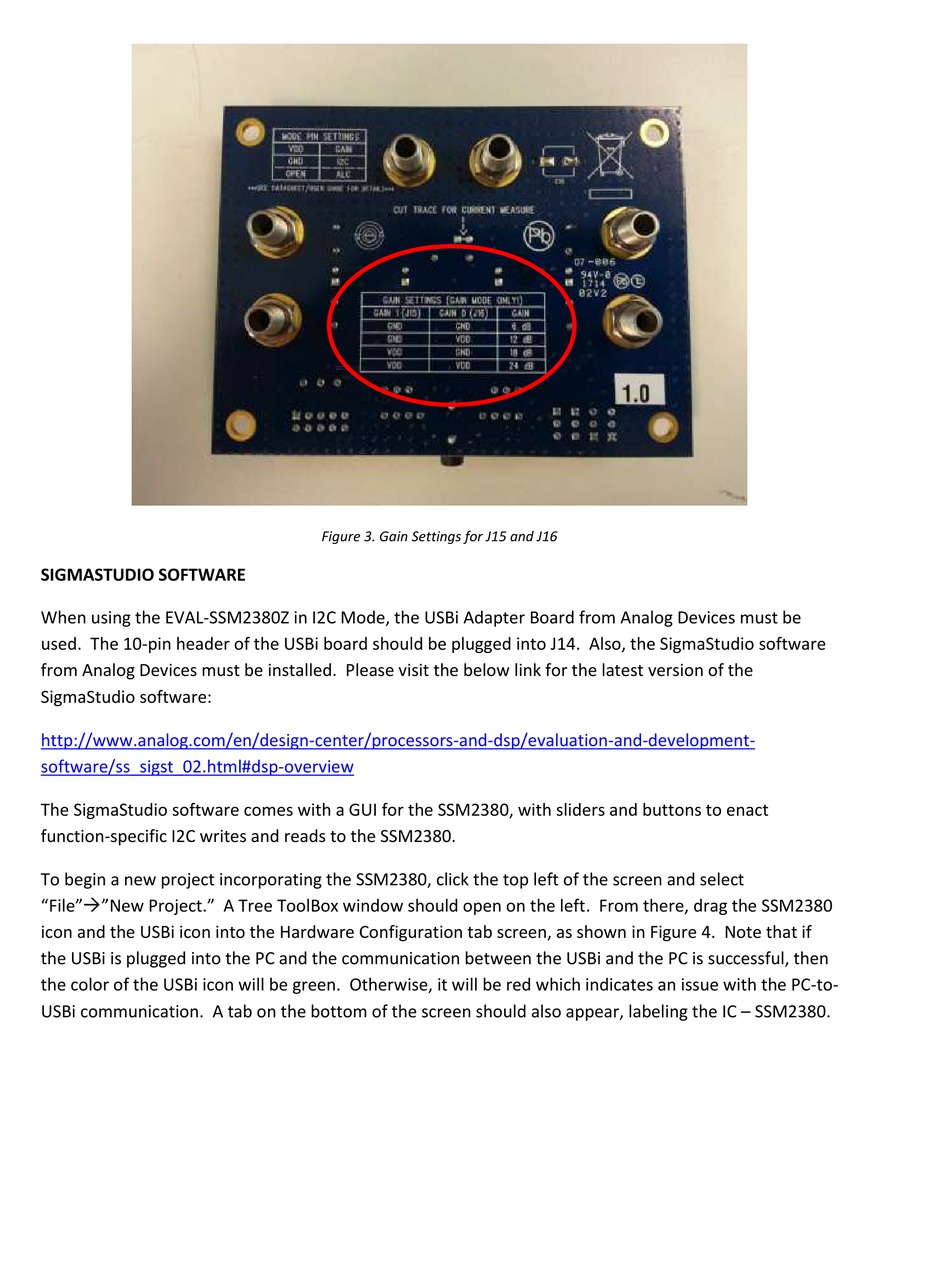

Figure 3. Gain Settings for J15 and J16
SIGMASTUDIO SOFTWARE
When using the EVAL-SSM2380Z in I2C Mode, the USBi Adapter Board from Analog Devices must be
used. The 10-pin header of the USBi board should be plugged into J14. Also, the SigmaStudio software
from Analog Devices must be installed. Please visit the below link for the latest version of the
SigmaStudio software:
http://www.analog.com/en/design-center/processors-and-dsp/evaluation-and-development-
software/ss_sigst_02.html#dsp-overview
The SigmaStudio software comes with a GUI for the SSM2380, with sliders and buttons to enact
function-specific I2C writes and reads to the SSM2380.
To begin a new project incorporating the SSM2380, click the top left of the screen and select
"File""New Project." A Tree ToolBox window should open on the left. From there, drag the SSM2380
icon and the USBi icon into the Hardware Configuration tab screen, as shown in Figure 4. Note that if
the USBi is plugged into the PC and the communication between the USBi and the PC is successful, then
the color of the USBi icon will be green. Otherwise, it will be red which indicates an issue with the PC-to-
USBi communication. A tab on the bottom of the screen should also appear, labeling the IC – SSM2380.
