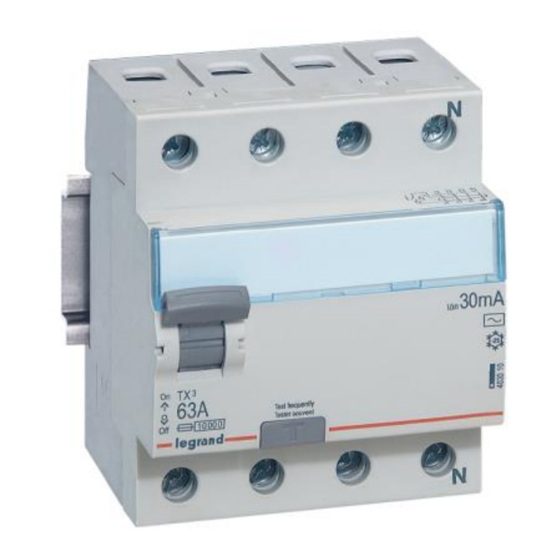

LEGRAND TX3 RCCBs 4 030 08 Instruction Manual

4p neutral right side - up to 63a
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

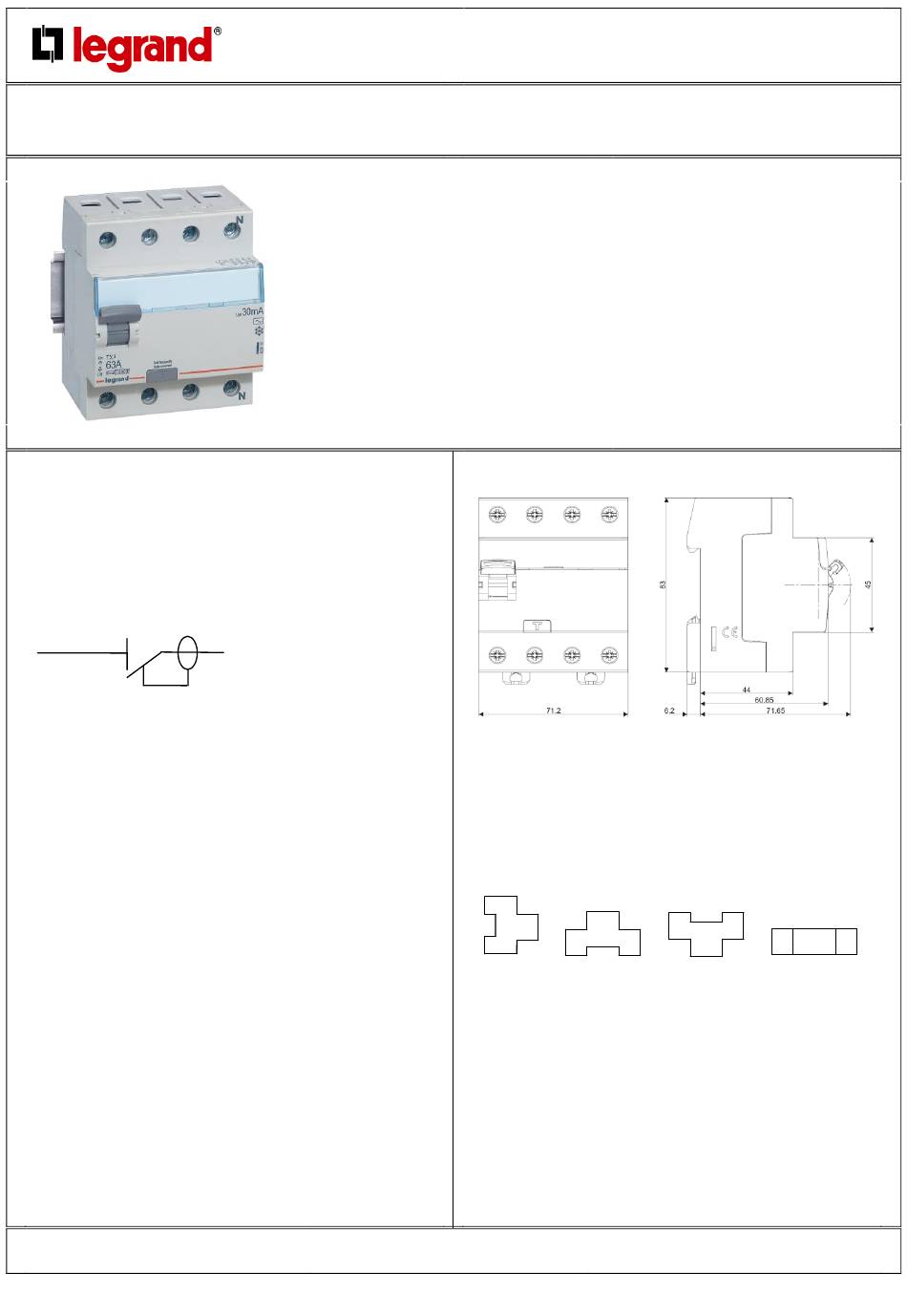

TX³ RCCBs
4P Neutral right side - up to 63A
1. DESCRIPTION - USE
Residual current circuit breaker (RCCB) with positive contact
indication for control, protection and isolation of electrical circuits,
protecting people from direct and indirect contact and protecting
installations from insulation faults.
Symbol:
Technology:
. Electromagnetic residual current function with current-sensing
relay
2. RANGE
Polarity:
. 4-pole
Width:
. 4 modules (4 x 17.8 mm)
Nominal rating In:
. 25 / 40 / 63 A
Residual current types:
. AC (sinusoidal differential alternating currents)
Sensitivity:
. 30/300 mA
Nominal voltage and frequency:
. 400 V~ / 415 V~, 50 Hz with standard tolerances
Maximum operating voltage:
. 440 V ~, 50 Hz
Technical data sheet: F01543EN/01
87045 LIMOGES Cedex
Telephone number: +33 (0)5 55 06 87 87 - Fax: +33 (0)5 55 06 88 88
Cat. N°(s): 4 030 08, 09, 10, 42, 43, 44
3. OVERALL DIMENSIONS
4. PREPARATION - CONNECTION
Mounting:
. On symmetrical rail EN 60715 or DIN 35 rail
Operating positions:
. Vertical
Power supply:
. From the top or the bottom
Connection:
. Inputs and outputs via screw terminals
. Cage terminals, with disengageable and captive screws (fitted with
flaps preventing a cable being placed under the terminal, with the
terminal partly open or closed)
. Neutral on right
Updated on: 01/09/15
CONTENTS
1. Description, use................................... 1
2. Range ................................................. 1
3. Overall dimensions .............................. 1
4. Preparation - Connection ..................... 1
5. General characteristics ........................ 3
6. Compliance and approvals .................. 7
7. Curves ................................................. 8
8. Auxiliaries and accessories ................. 9
9. Safety .................................................. 9
Horizontal
Upside down
Created on: 19/03/14
PAGE
On the side
1 / 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX3 RCCBs 4 030 08 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND TX3 RCCBs 4 030 08

Summary of Contents for LEGRAND TX3 RCCBs 4 030 08

  • Page 1: Table Of Contents

    87045 LIMOGES Cedex Telephone number: +33 (0)5 55 06 87 87 – Fax: +33 (0)5 55 06 88 88 TX³ RCCBs Cat. N°(s): 4 030 08, 09, 10, 42, 43, 44 4P Neutral right side - up to 63A CONTENTS PAGE 1.

  • Page 2: Preparation - Connection

    TX³ RCCBs Cat. N°(s): 4 030 08, 09, 10, 42, 43, 44 4P Neutral right side - up to 63A (continued) 4. PREPARATION - CONNECTION Terminal arrangement: . Terminals protected against direct finger contact IP20, wired device . Alignment and spacing of the terminals permitting shutters with the other products via toothed supply busbars .

  • Page 3: General Characteristics

    . The RCCB must be protected upstream against short circuits using a circuit breaker or a fuse. Its resistance to short circuits when associated with a Legrand circuit breaker or fuse is compliant with the values stated in the tables below:...
  • Page 4 TX³ RCCBs Cat. N°(s): 4 030 08, 09, 10, 42, 43, 44 4P Neutral right side - up to 63A (continued) 5. GENERAL CHARACTERISTICS Protection against short-circuits: . Association with a circuit breaker: Upstream circuit breaker Upstream circuit breaker TX³ 4500 A TX³...
  • Page 5 TX³ RCCBs Cat. N°(s): 4 030 08, 09, 10, 42, 43, 44 4P Neutral right side - up to 63A (continued) 5. GENERAL CHARACTERISTICS Protection against short-circuits: . Association with circuit breakers: case of a double fault, in IT system – Resistance to the Icc of a single pole Circuit breaker Downstream upstream...
  • Page 6 TX³ RCCBs Cat. N°(s): 4 030 08, 09, 10, 42, 43, 44 4P Neutral right side - up to 63A (continued) (continued) 5. GENERAL CHARACTERISTICS 5. GENERAL CHARACTERISTICS Weight per device: Isolation distance: (distance between the contacts) . Handle in open position - O-Off: Catalogue Number Description Weight (kg)

  • Page 7: Compliance And Approvals

    TX³ RCCBs Cat. N°(s): 4 030 08, 09, 10, 42, 43, 44 4P Neutral right side - up to 63A 5. GENERAL CHARACTERISTICS (continued) 5. GENERAL CHARACTERISTICS (continued) Mechanical endurance: Resistance to sinusoidal vibrations: (in accordance with . Conforms to standard NF EN 61008-1 IEC 68.2.6) .

  • Page 8: Curves

    TX³ RCCBs Cat. N°(s): 4 030 08, 09, 10, 42, 43, 44 4P Neutral right side - up to 63A 7. CURVES Tripping current curves: . Tripping time curve depending on the value of the fault current: AC TYPE AC type Technical data sheet: F01543EN/01 Updated on: 01/09/15 Created on: 19/03/14...

  • Page 9: Auxiliaries And Accessories

    . For your safety your electrical installation is equipped with residual current protection and this must be tested periodically. In the absence of any national regulations on the time period required for this, Legrand recommends that this test be carried out every month: press the " T " test button, the device should trip.
