Summary of Contents for mamibot iGLASSBOT W120-T
- Page 1 The expert for robots in your home With one click to the online shop myRobotcenter.eu myRobotcenter.co.uk myRobotcenter...
- Page 2 W120-T USER MANUAL V.20181010...
-
Page 3: Table Of Contents
7. Disclaimer ......................... 11 8. Product Warranty ......................11 9. Exclusions .......................... 11 10. The Environment ....................... 11 Thanks for purchasing Mamibot W120-T iGLASSBOT robot window cleaner. We wish it brings you easier and more comfortable experience of home cleaning. -
Page 4: Important Safety Instructions And Warning
„ Do not attempt to service the adapter. There are no service parts inside. Replace the whole unit if it is damaged or exposed to high moisture. Consult your Mamibot dealer for help and maintenance. „ The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not disas- semble, short contact, heat above 60 °C (140 °F), or incinerate. -
Page 5: Risk Of Electric Shock
1. Important Safety Instructions and Warning 1.3 Risk of Electric Shock! Always switch the device off before carrying out any cleaning or maintenance work. Never pull the power plug out of the socket by the power cord; instead, pull it out by the power plug itself. -
Page 6: Product Description & Parameters

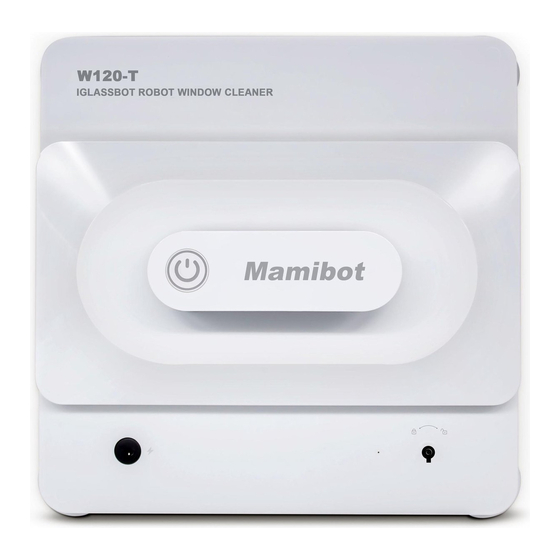

2. Product Description & Parameters 2.1 Product Diagram W120-T iGLASSBOT ROBOT WINDOW CLEANER Buzzer Indicator Light On/Off Button Red: Alarm Start/Pause Button Blue: Normal Orange: Charing Green: Fully charged Power Cord Safety Lock Hole Indicator Light of Safety Lock Hole Red: Safety Lock not in function Green: Safety Lock in function, ready for using Edge Detection... -
Page 7: Product Parameters
2. Product Description & Parameters 2.2 Product Parameters About The Robot Model No. W120-T Rated Voltage 24 V DC Rated Power 75 W Noise Level About 65 dB Battery Capacity 600 mAh Charging Time About 1 h Dimension 25 x 25 x 10 cm Net Weight 1.35 kgs Cleaning Speed... -
Page 8: Installation
3. Installation 3.1 Assemble the Adapter Power Adapter DC plug (End A) L-shape connector (End C) extension cable connector (End B) Plug into DC power jack DE extension cable A. Connect DC plug (End A) of Power Adapter with extension cable (End B), as above. 1 B. -
Page 9: Connect To Power Supply
3. Installation 3.4 Connect to Power Supply Plug in W120-T. Important Notes: Be sure your W120-T is always connected to AC power supply while working. Don’t use it if the backup battery is lack of power, use it after full charging. Take off your W120-T asap, if the power supply is cut or unplugged accidently. -
Page 10: Take Off W120-T After Cleaning
4. Operate W120-T 4.5 Take off W120-T after cleaning cleaning is completed. A. Use remote control to move your W120-T to a reachable location; B. Press On/Off Button for 2 seconds to switch it off; C. Grasp the handle and take it off from the window; future use. -
Page 11: Troubleshooting
6. Troubleshooting Malfunction Possible Causes Solutions The device gets A. Glass is too dirty or A. Change cleaning pad. slippery or works in too wet. B. Clean the driving treads. irregular patterns. B. Cleaning pad is too C. Use remote control to manually restart it. dirty or too wet. -
Page 12: Disclaimer
This appliance complies with the European Directives 2014/30/EU, 2014/35/EU, and 2014/53/EU. Subject to change without notice. Mamibot Manufacturing USA Inc. Orange Street #600, New Castle, Wilmington, Delaware, USA 19899 www.mamibot.com, sales@mamibot.com, 001 302 428 9888 Manufacturer: Mamibot Manufacturing (Shanghai) Co.Ltd North 21th, No.1 Building, LN1040 Caoyang Rd, Shanghai, P.R.C.
