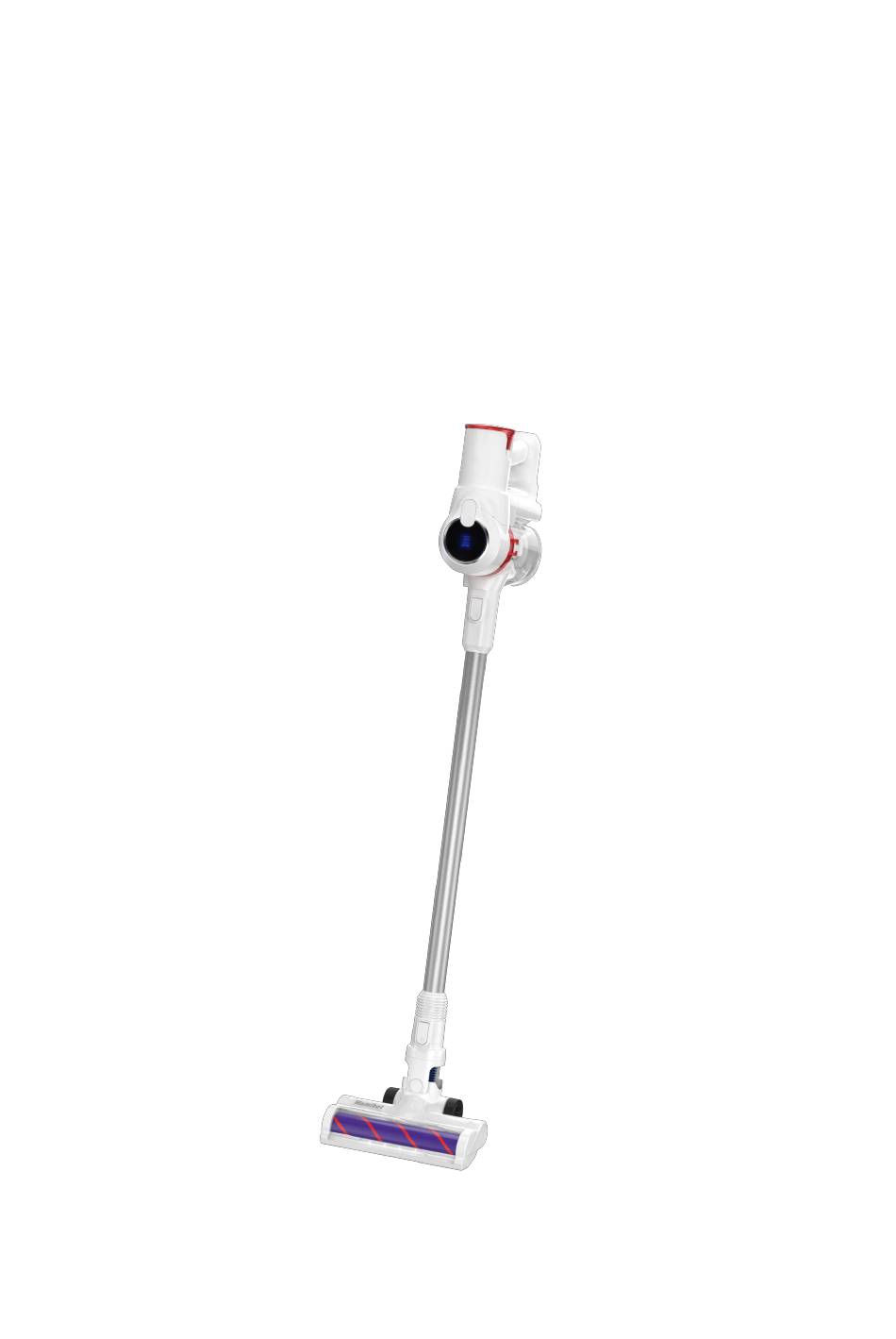

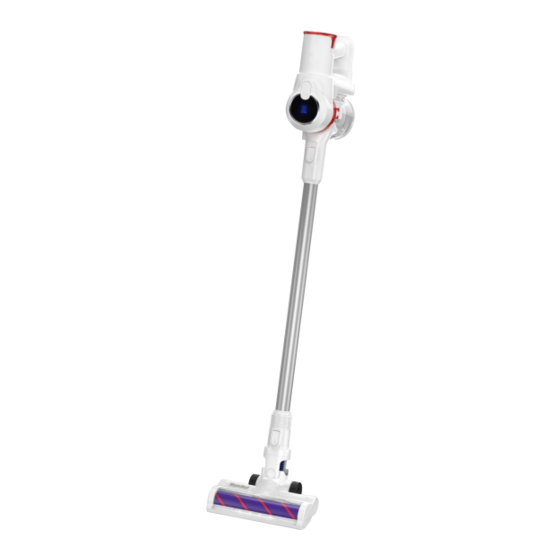

- Page 1 Mamibot Cordless Stick Vacuum Cleaner User Manual 20201230 Ver. Please read this manual carefully before use and keep this manual for future use.
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions and Warnings Product Description 8-10 Assembling 10-13 Operation 14-15 Trouble Shooting Name and Content of Hazardous Substances Recycling of V8... -
Page 3: Important Safety Instructions And Warnings
Important Safety Instructions and Warnings Read all documents before using The appliance is not to be used by children. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge may only use this appliance if they are supervised or have been given instruction about how to use it safely and understand what risks are involved. - Page 4 ● If the cleaner can’t start working even when the battery is full, please go to service agent or Mamibot distributors for inspection, don’t disassemble it on your own. ● Don’t use the cleaner if dust bin is not in position.
- Page 5 Do not attempt to service the adapter. There are no service parts ● inside. Replace the whole unit if it is damaged or exposed to high moisture. Consult your Mamibot dealer for help and maintenance. The battery used in this device may present a risk of fire or chemical ●...
-
Page 6: Product Description
1. Product Description Main View Dust Box View... - Page 7 Adapter 26VDC 0.45A Output: The data come from the lab of Mamibot Manufacturing USA Inc. It might slightly be different with the users data due to different working environment and usage, please subject to the final products. 1.3 PRECAUTIONARY MEASURES...
-
Page 8: Assembling
should switch off the vacuum cleaner at once. First clear the blocked substance before you attempt to start the vacuum cleaner again 1.4 CAUTION: Do not operate the vacuum cleaner close heaters like radiators, cigarette butts etc. Before using the vacuum cleaner, please remove large or sharp objects from the floor in order to avoid damaged filter. - Page 9 2.2 Connecting the Main Brush With the main brush, users can set to clean hard floors like marble, wooden floors, tiles, short rugs. Connecting the aluminum tube with the cleaner head until we hear the voice of “click”. Connecting the aluminum tube ...
- Page 10 2.4 Install and remove the 2 、 move battery pack (a) Remove the battery pack: Push the button at the bottom of the battery, and then pull the battery 1 、 push here Fig.A pack along the battery slot and remove it from the body(Fig.
-
Page 11: Operation
3. Operation 3.1 Switch on/off Press the power switch button once to switch on V8, and enter Standard Mode. Press the power switch button again at Standard Mode, then enter Max Mode. Press the power switch button again at Max Mode, the cleaner will be switched off. - Page 12 3.3.2 Hepa and Sponge Filter Sponge and HEPA Cleaning Filtet 1). Remove the dust box from body. 2). Rotate the dust box cover anticlockwise from “close” Fig.A “open”, take out the dust box cover, take out the sponge and HEPA filter set(fig. A). 3).
- Page 13 3.4 Cradle Installation There are two kinds of Crade installation: A OR B, please assemble the cradles according to the actual products in your hand. A: It is suggested that the height ○ ○ between the vacuum cleaner’s brush set and the floor surface should be about 30cm.
- Page 14 Put the stand base on the flat floor steadily. Fix the tube on the stand base by using the screw. Please refer to ○ the figure Connecting the 2 aluminum tubes with the joint. Please refer to ○ the figure 2 ；...
-
Page 15: Troubleshooting
4. TROUBLESHOOTING If there is any failure of V8 cordless vacuum cleaner, please follow below solutions to check and solve the problems. If none of the solution is workable, please contact the authorized agent for inspection and further solutions. PROBLEM... - Page 16 Check the connection of No LED indicator or adapter, power Adapter is not plugged flashing when supply and the charging in properly. charging. port, make sure they are in position. Battery reaches life time Battery leakage. or in no use for long Replace the battery in time.
-
Page 17: Name And Content Of Hazardous Substances
5. Name and Content of Hazardous Substances Content of Hazardous Substances Component Plastic Cables Metal Adapter Electronic Rubber Shell Parts Component Components Cadmium(Cd) × Lead(Pb) Mercury(Hg) Hexavalent Chromium(CrVI) Polybrominated Biphenyls(PBB) Polybrominated Diphenyl Ethers(PBDE) Bis(2-ethylhexyl) Phthalte(DEHP) Butyl Benzyl Phthalate(BBP) Dibutyl Phthalate(DBP) Diisobutyl Phthalate(DIBP) The time of the components for environment protection concern is 10 years. -
Page 18: Recycling Of V8
6. Recycling of V8 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring... - Page 19 Mamibot Manufacturing (Shanghai) Co.,Ltd. North 21th, No.1 Building, LN1040 Caoyang Rd, Shanghai, P.R.C. Mamibot Manufacturing USA Inc. Orange St. #600, Wilmington, New Castle, 19899, Delaware, USA Tel: 001 302-428-9888 sales@mamibot.com www.mamibot.com...
