PK-93360-10-00-0A

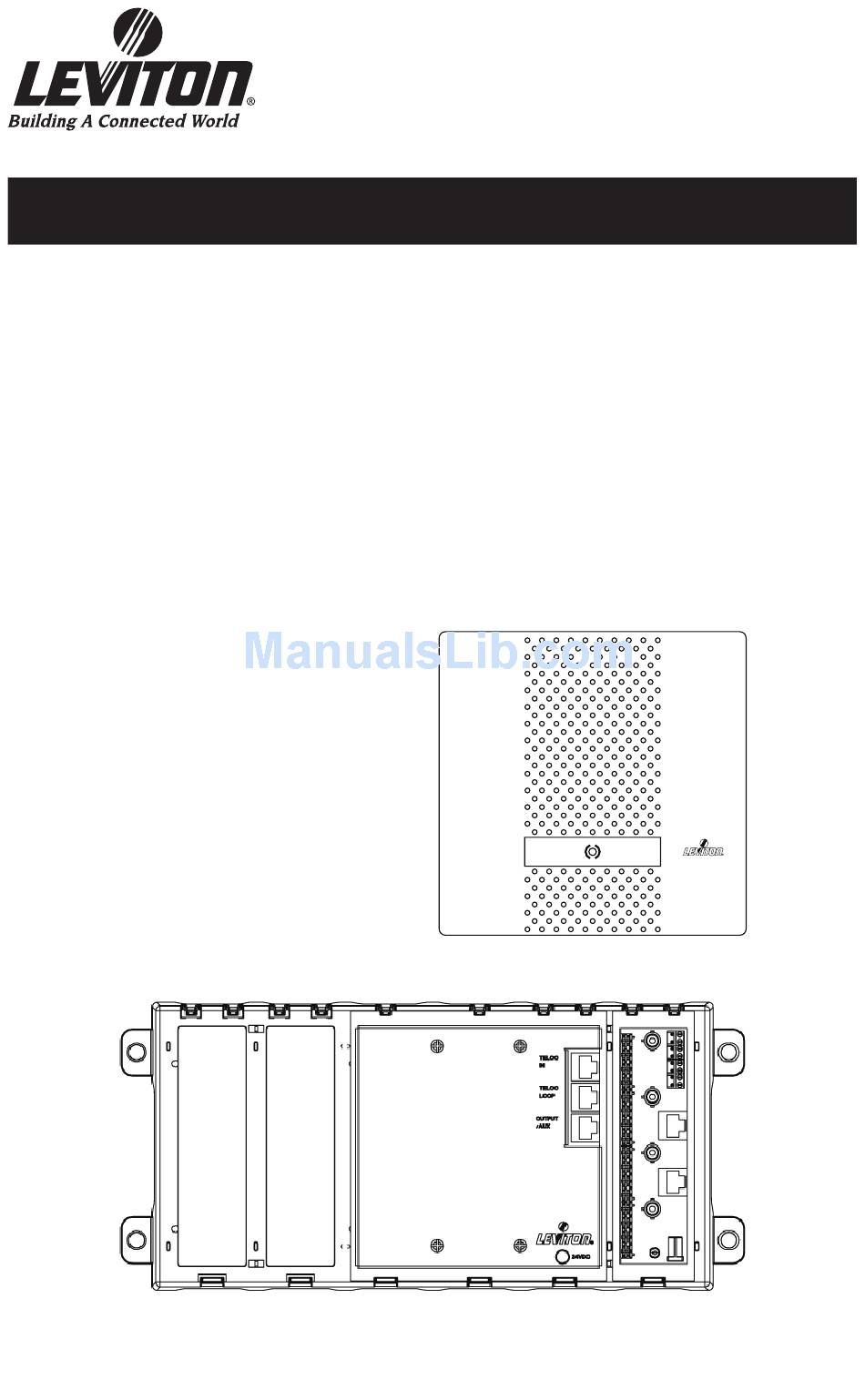

Leviton Residential Intercom System
The Leviton Residential Intercom System is a residential intercom system
that utilizes the telephones in the home to allow communication with the
front door, gate or any location where a wall station is installed. The Intercom
System provides for internal communication on the connected phones, call
holding, call announce, and station monitor applications. Using a CAT5e star
wiring topology up to twelve wall stations in four zones can be connected to
the Main Controller board. The Intercom makes use of the Leviton Integrated
Networks modular format, easily mounting in the Structured Media Center on
a standard plastic bracket.
PACKAGE CONTENTS
Main Controller Board
Station Interface Board
Push-Lock Pins
Grommets
Power Supply
12" Patch Cord (3)
• For technical assistance contact us at 1-800-824-3005
• Visit our website at www.leviton.com
Quick-Install Guide
47000-XXX
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 47000-CHM and is the answer not in the manual?

Questions and answers

Summary of Contents for Leviton 47000-CHM

  • Page 1 Using a CAT5e star wiring topology up to twelve wall stations in four zones can be connected to the Main Controller board. The Intercom makes use of the Leviton Integrated Networks modular format, easily mounting in the Structured Media Center on a standard plastic bracket.
  • Page 2: Wall Station

    MOUNTING BRACKET: Mount the Intercom System bracket into the Structured Media Center enclosure in a convenient location, directly below the telephone distribution board is recommended. Align the Push-Lock Pins with the grid holes on the back wall of the enclosure.
  • Page 3 WIRING: 1. To prewire for the Intercom System, simply run a single CAT5e from the SMC to each wall station location desired. 2. To prewire for ringing of the doorbell on wall station activation (door chime application) run doorbell wire from door chime location and doorbell power supply location to SMC.
  • Page 4 NOTE: The Intercom System is capable of supporting connected phone equipment up to a total Ringer Equivalency Number (REN) of 4.6. The REN can be found on the ID label on the bottom of the telephone. If you cannot find the REN, please contact the phone manufacturer for assistance.
  • Page 5 NOTE: It is recommended the Intercom System be used with the TLDM for phone connection; please contact Leviton Technical Support at (800) 824-3005 for assistance if using a method of phone distribution other than the TLDM. Line Distribution Board By Leviton Voice & Data...
  • Page 6: Accessory Connections

    Output/Aux RJ45 jack - allows for the connection of multiple station interface boards, door chime module, door strike module and future applications. • RCA connectors - for future applications • Power LED/connector - for future applications Leviton Station Interface Board Zone 1 Zone 2 Zone 3 Zone 1...
  • Page 7 • Zone Monitor - From any phone connected to the Intercom System press *1, *2, *3, or *4 to communicate with or monitor the wall stations connected to that zone.
  • Page 8: Door Strike

    INTERCOM DOOR STRIKE AND CHIME MODULES DOOR STRIKE: Mount the Door Strike board onto an available spot of the Intercom System bracket. Connect wires from door strike and strike power supply to the correct terminals on the terminal strip (see drawing). Use terminal SW1 for door strike in zone 1, SW2 for door strike in zone 2, etc.
  • Page 9 2. Adjust the jumper for connected zones to normally open (NO) or normally close (NC) as desired. “Normally open” refers to the contacts being open (and no current flowing) when the board is energized. Conversely, “normally closed” means the contacts are closed (with current flowing) when the board is energized.
  • Page 10: Door Chime

    DOOR CHIME: Mount the Door Chime board onto an available spot of the Intercom System bracket. 1. Connect wires from door chime transformer and chime set to terminals at the top of the board. A chime will sound when any zone is activated.
  • Page 11: Delay Time

    Use the patch cord to connect the output of the Intercom Main Controller board to the input of the Door Chime board. Use a second patch cord to connect to the output/aux of the door chime board to the input of the Intercom Interface board. Set the dip switches according to the table for the desired relay activation time.
  • Page 12 Strike board, then connected to the Door Chime board, and then to the Interface board. Leviton Leviton Door Chime Interface Board Door Strike Interface Board 1 2 3 4 Line Distribution Board By Leviton Voice & Data LINE LINE SECURITY FROM DEMARCATION WWW.LEVITONVOICEDATA.COM Intercom Controller Board By Leviton Integrated Networks NO NC WWW.LEVITON-LIN.COM...
  • Page 13 Notes:...
  • Page 14 Notes:...
  • Page 15 Notes:...
  • Page 16 Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for two years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option, if within such two year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att:...
  • Page 17 This page is NOT to be printed in the booklet LEVITON INSTRUCTION SHEET/MANUAL Paper size: Overall size: Final fold size: 8.5" SPECIFICATIONS PK-93360-10-00-0A Black Helvetica 50 lb. offset 11" x 8.5" (Printer Spread) 5.5" x 8.5" (booklet - saddle stitch)
