Leviton 47000-CHM Install Manual

DI-003-47000-01A
FEATURES
• Upgrades the Leviton Residential Intercom System for use
with Door Chime (Chime not included)
• Easy snap installation onto SMC mounting bracket
• Configurable set time delay
PACKAGE CONTENTS
• Chime Board
• 12V Power Supply
• 12" Patch Cord (1)
INSTALLATION
1. Mount the Door Chime board onto an available spot of the
SMC mounting bracket.
2. Connect wires from door chime transformer and chime set
to terminals at the top of the board. A chime will sound when
any zone is activated.
This module can be used for various devices; the contacts
3.
are rated for 1 Amp at 125VAC/30VDC.
4. Set the jumper for normally open (NO) or normally closed
(NC) contacts as desired. If being used to activate a door
chime, set to the "normally open" position.
5. Use the patch cord to connect the output of the Intercom
Main Controller board to the input of the Door Chime board.
6. Use a second patch cord to connect to the output/aux of
the door chime board to the input of the Intercom Interface
board.
7. Set the dip switches according to the table for the desired
relay activation time.
NOTE: The LED will blink to indicate normal operation.
NOTE: Refer to Wiring Diagram on back page for wiring configuration.
Delay Time
3 sec
1 sec
2 sec
0.6 sec
0 = OFF (switch away from board), 1 = ON (switch pushed toward board)
Leviton Residential Intercom System
Door Chime Board
Cat. No. 47000-CHM
Switch 1
0
0
1
1
• Power module using power
Switch 2
0
• This module requires 12VDC
• Fuse is a 1 Amp 250V type GFE
1
0
1

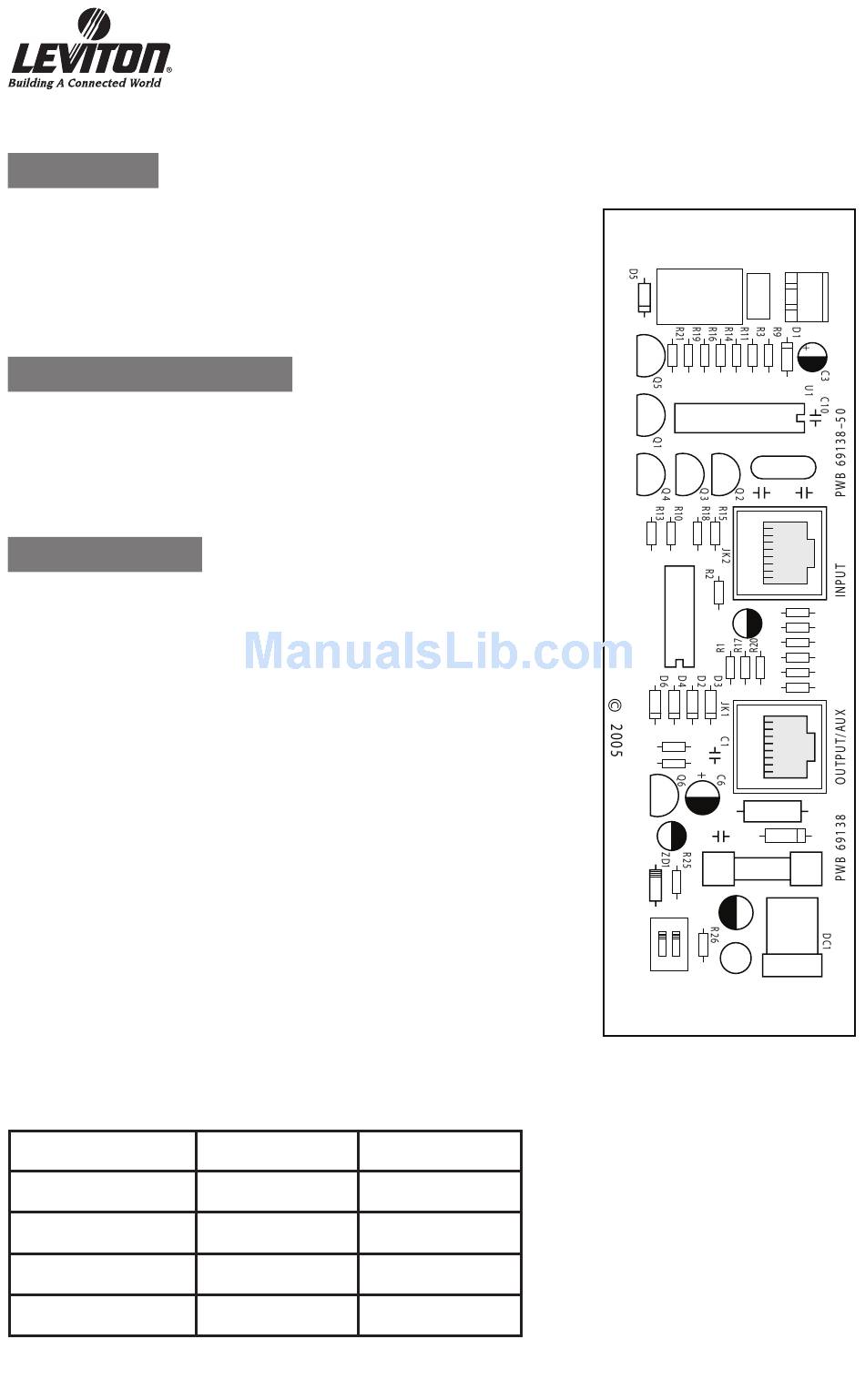

Leviton Intercom
Door Chime Board
K1
C2
U2
R23
R22
C9
C8
+
C7
LED1
–
SW2
w w w . l e v i t o n . c o m
supply provided or jumper to PSA
NO
SW1
JP2
NO
JP1
X1
C4
C5
R8
R12
+
R7
R6
R5
R4
R24
D7
F1
+
+
12VDC
