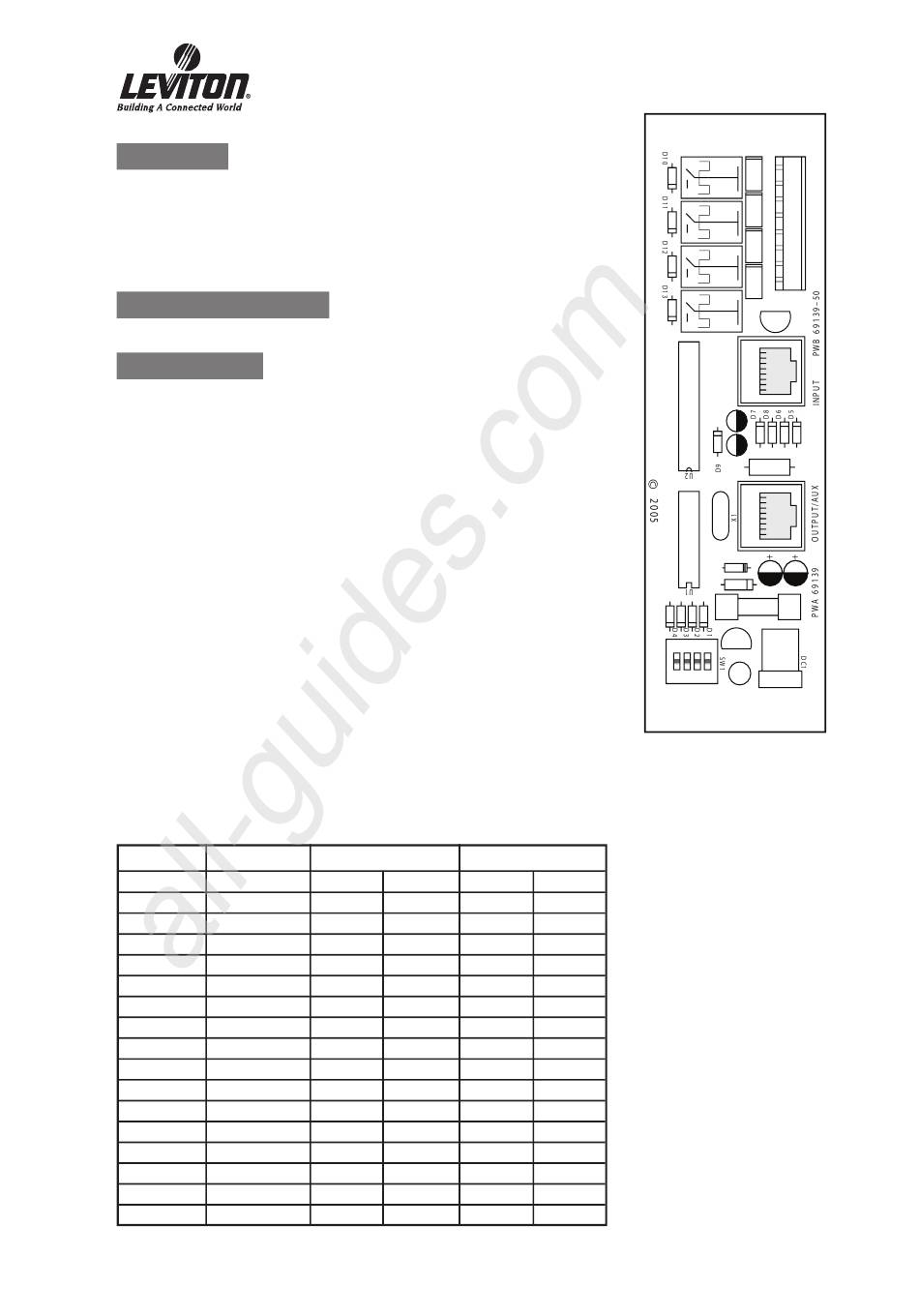

Leviton Residential Intercom System
DI-004-47000-01A

FEATURES

Upgrades the Leviton Residential Intercom System with Door
Strike capability
Ease of wiring via patch cords into other modules
Will support up to 4 door strikes with screw terminal connections
Configurable set time delay

PACKAGE CONTENTS

Strike Board

INSTALLATION

1.
Mount the Door Strike board onto an available spot of the SMC
mounting bracket.
2.
Connect wires from door strike and strike power supply to the
correct terminals on the terminal strip. Use terminal SW1 for door
strike in zone 1, SW2 for door strike in zone 2, etc.
3.
Adjust the jumper for connected zones to normally open (NO)
or normally close (NC) as desired. "Normally open" refers to the
contacts being open (and no current flowing) when the board is
energized. Conversely, "normally closed" means the contacts are
closed (with current flowing) when the board is energized. The
contacts are rated for 1 Amp at 125VAC/30VDC.
4.
Use the patch cord to connect output of the Intercom Main
Controller board to the input of the Door Strike board.
Use the second patch cord to connect the output/aux of the Door
5.
Strike board to the input of the Intercom Interface board.
NOTE: It is important that the Door Strike module is connected
DIRECTLY to the Intercom Main Controller board.
Set the dip switches according to the table below for the desired
6.
DTMF tone for activation and relay activation time.
NOTE: Chime board must be de-energized prior to changing settings.
NOTE: The LED will blink to indicate normal operation.
NOTE: Refer to Wiring Diagram on back page for wiring configuration.
Keypad #
Delay Time
7
5 sec
7
1 sec
7
3 sec
7
0.5 sec
5
5 sec
5
1 sec
5
3 sec
5
0.5 sec
0
5 sec
0
1 sec
0
3 sec
0
0.5 sec
5 sec
*
1 sec
*
3 sec
*
0.5 sec
*
0 = OFF (switch away from board), 1 = ON (switch pushed toward board)
All manuals and user guides at all-guides.com
Door Strike Board
Cat. No. 47000-STR
12V Power Supply
• 12" Patch Cord (1)
Time
Switch 1
Switch 2
Switch 3
0
0
0
0
0
0
0
0
1
0
1
0
1
0
1
0
0
1
0
1
0
1
0
1
1
1
1
1
1
1
1
1
• Power module using
DTMF
power supply provided
Switch 4
or jumper to PSA
0
0
• This module requires
0
1
12VDC
1
0
• Fuse is a 1 Amp 250V
1
1
type GFE
0
0
0
1
1
0
1
1
0
0
0
1
1
0
1
1
0
0
0
1
1
0
1
1
Leviton Intercom
Door Strike Board
K1
NO
SW1
JP5
NO
K2
NO
SW2
JP6
NO
NO
SW3
K3
JP7
NC
SW4
NO
JP8
K4
NC
J4
Q2
JK1
C16
+
+
C12
R25
JK2
C13
C14
ZD1
D14
F1
Q8-1
D15
+
1 2 3 4
12VDC
w w w. l e v i t o n . c o m
