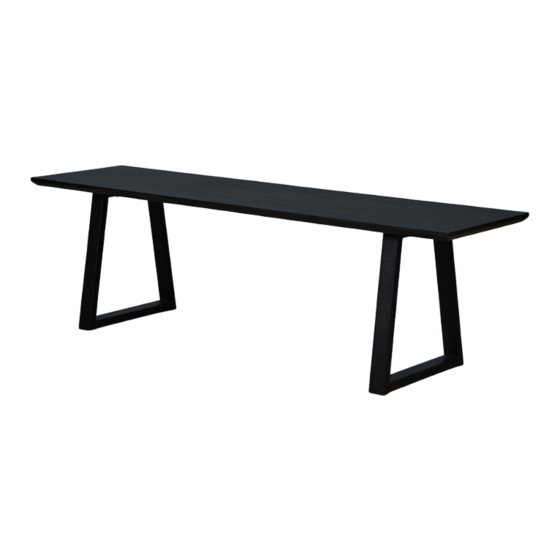

Zander Bench Seat
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
long bolt
x4
D
washer
x15
Hardware Supplied
Phillips screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
B
C
bolt
screw
x 11
x4
E
Allen Key
x1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Zander Bench Seat
Summary of Contents for Mocka Zander Bench Seat
- Page 1 Zander Bench Seat Assembly Instructions Thank you for your purchase. Please follow the instructions for correct assembly. While we took great effort to ensure these assembly instructions were correct at the time of printing, sometimes updates are required post production. For the most up to date versions please refer to the product page on our website.
- Page 2 Zander Bench Seat Assembly Instructions Panel layout Attach panels [2] to panel [3] secure with 4x Long bolts (A) and 4x washers (D). Tighten with an Allen key (E). mocka.co.nz | mocka.com.au...
- Page 3 Zander Bench Seat Assembly Instructions Attach panels [2] and [3] to panel [1] secure with 11x bolts (B) Attach panels [2] to panel [1] and secure with 4x screws (C). Tighten and 11x washers (D). Tighten with an Allen key (E).
