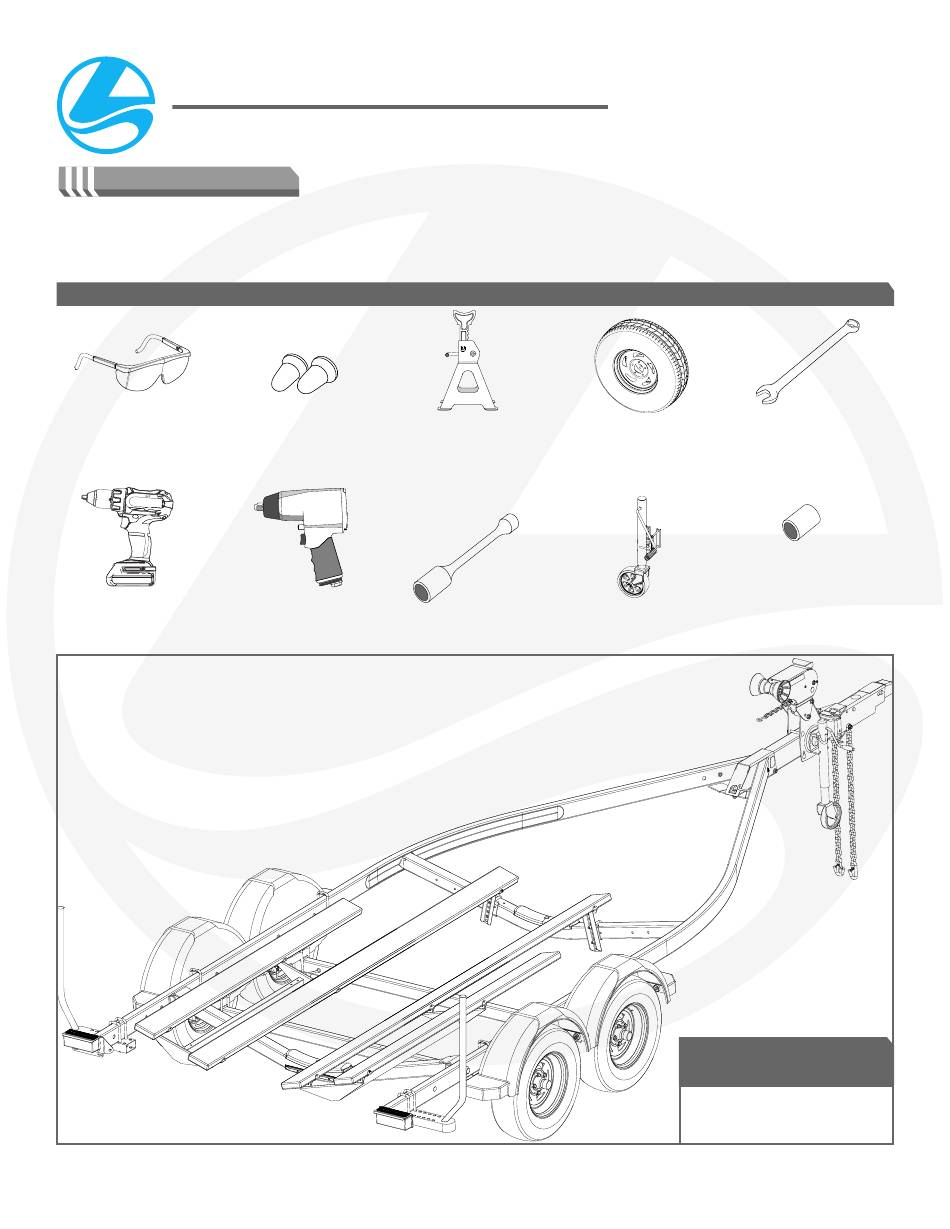

DUB 55 TRAILER
Shoreland'r Trailer Install Guide
WB.DUB55T.01
NOTE
Riggers should be cautious assembling trailers and always use two people to move or rotate
any heavy items. Your safety is our #1 priority. All Trailer models with brakes should refer to the
separate wholesale "Brake Installation and Bleeding Guide."
TOOLS REQUIRED
Safety
Glasses
Drill
Socket Wrench
Hearing
Protection
Pneumatic
Torque Stick
https://support.legendboats.com/
Jack
Stands
Jack & Dolly
9/16" Wrench
Tires
13/16" Wrench
3/4" Wrench
3/8" Socket
9/16" Socket
13/16" Socket
3/4" Socket
22mm Socket
APPLICABLE
BOAT MODELS
Vibe 23 FW
