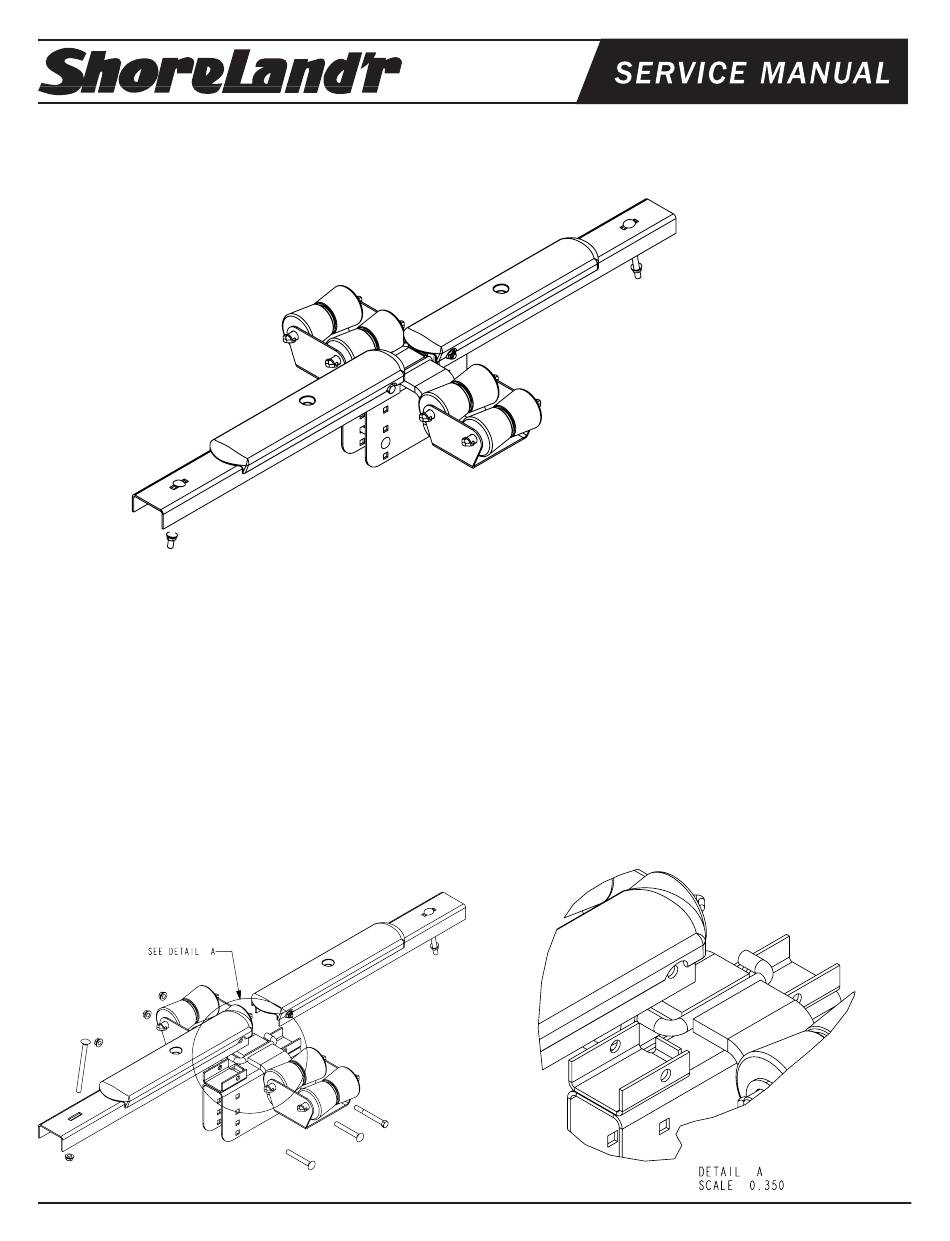

ShoreLand'r 69175 Series Service Manual

Assembly Instructions

Open box and remove all parts and hardware bag. Open hardware
bag and sort parts.
Place 64923_ _ front keel guide bracket over front cross member
and align holes in bracket with those in the front cross and insert
3/8" X 3" carriage bolts from rear to front and secure 3/8" flange
lock nuts. Place cradle assembly with pin in center in the rear slot
on top of the previously attached bracket with bent ends facing for-
Midwest Industries, Inc.
Page 1
®
69175--

Keel Cradle Assembly

Ida Grove, IA 51445
ward. Take outer channel assemblies and place on top of bracket
aligning holes and insert 3/8" X 3" hex bolts, secure with 3/8" flange
lock nuts. In the slots in the ends of the channel, insert 3/8" X 5"
carriage bolts through cross member and secure 3/8" flange lock
nuts.
Load boat - Make necessary adjustments to center bracket and
tighten nuts, tighten other nuts only enough to allow assembly to
pivot freely.
