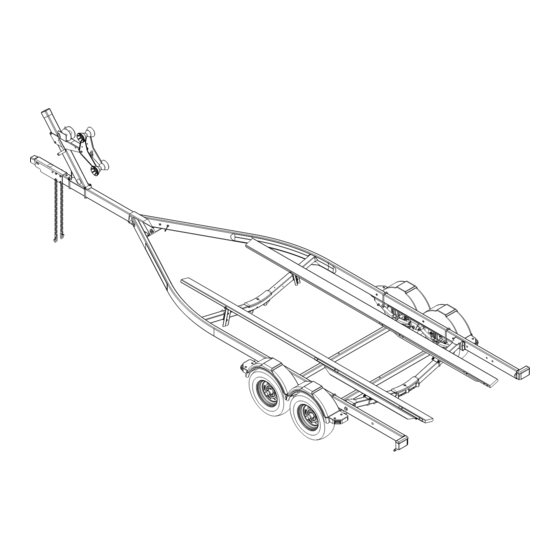

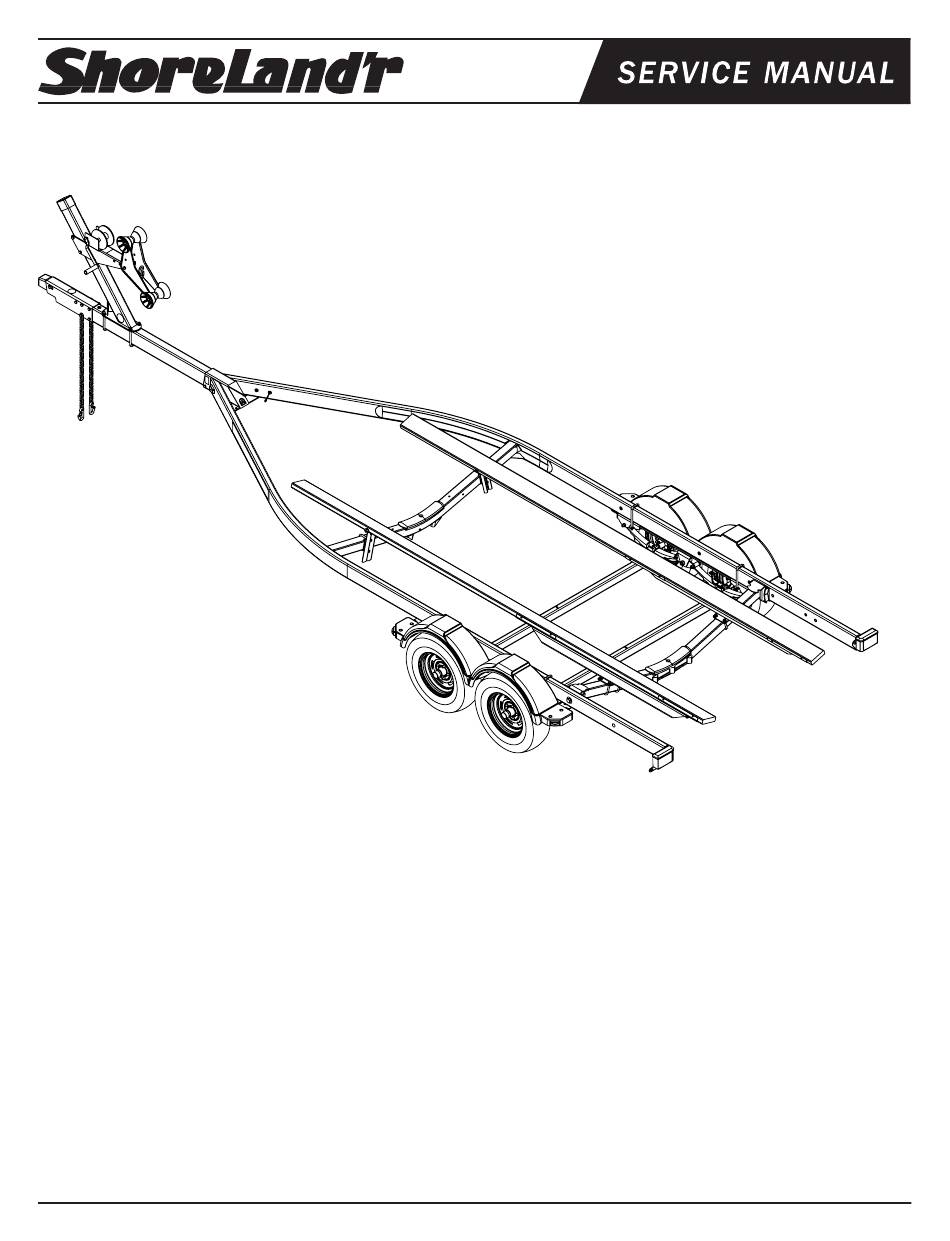

Bundles Required for SLB46TBLSP
69082
Literature Bag - Trailers - Brakes
80482--
Frame Bundle - 2X5 - B46TBLSP
4300236
ST185/80R 13C MR Tire / TS Dir Rim
67178--
Tongue Assembly w/UFP Disc 5x3x65
6238600
Rocker Bag - Tandem
66520
Bag w/Chains - No Coupler
ShoreLand'r offers their product line in either galvanized or painted
finish. When ordering parts it is important that you specify the finish
or color you have on your product. The five (5) digit number along
with a two (2) digit space _ _, note the parts which can be purchased
with various finishes. When ordering these items use the five (5) digit
number along with a two (2) digit suffix for the proper finish.
00 ......... Galvanized
01 ......... Arctic White
03 ......... Black
33 ......... Galvanized w/Black Plastic Parts
Midwest Industries, Inc.
Page 1
®
SLB46TBLSP
1
1
4
1
1
1
Ida Grove, IA 51445
Table of Contents:
Frame Drawing & Bill of Materials ................................ 2-3
Safety Instructions ........................................................3
Tongue & Safety Chain Dwg/BOM/Assy Instr. .............. 4-5
SP Winch Dwg/BOM/Assy Instr. ................................... 5-7
Tire Size & Carrying Capacity Chart ............................. 8
Spring Assembly Instructions ....................................... 8
Chassis Drawing & Bill of Materials .............................. 8-9
Axle Assembly Instructions ...........................................9
Tire & Wheel Assembly ................................................9
Bunk Assembly Instructions .........................................10
Trailer Adjustments .......................................................10
Axle Adjustments ..........................................................10
Winch Post Adjustments ...............................................10
800.859.3028
www.shorelandr.com
Page
0003555

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLB46TBLSP and is the answer not in the manual?

Questions and answers

dennis krause
February 13, 2025

what is the max outside width of the trailer with the fenders

Subscribe to Our Youtube Channel

Summary of Contents for ShoreLand'r SLB46TBLSP

  • Page 1 ® SLB46TBLSP Bundles Required for SLB46TBLSP Table of Contents: Page 69082 Literature Bag - Trailers - Brakes Frame Drawing & Bill of Materials ........ 2-3 80482-- Frame Bundle - 2X5 - B46TBLSP Safety Instructions ............3 4300236 ST185/80R 13C MR Tire / TS Dir Rim Tongue &...
  • Page 2 Diagram A Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003555 Page 2...
  • Page 3 FINAL ASSEMBLY INSTRUCTIONS sert into the holes in the bunk support pivot and the equalizer arm. Remove the hardware bag from the frame, remove parts and sort Secure the U-bolt in place by sliding a spacer bushing on one leg by size.
  • Page 4: Brake Line

    Diagram B TONGUE The tongue is shipped separate of the frame. Locate the appropri- ate tongue and install by sliding it in the front of the tongue channel. Line the holes in the tongue with the holes in the tongue channel. Install the 1/2”...
  • Page 5 Diagram C WINCH POST Locate the winch post and position it on the tongue. Place the ½” x 3 9/16” x 6” U-bolts up around the tongue, align the legs of the U-bolts with the holes in the winch post base and insert. Secure the U-bolts in place using ½”...
  • Page 6 Diagram D Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003555 Page 6...
  • Page 7: Rocker Arms

    Tire Size and Carrying Capacity Chart Tire Size ....... ST185/80R 13C GVWR ......5920 lb. Carrying Capacity ..4600 lb. Axle ......Disc Brakes Refer to the tire side wall for correct tire pressure. ROCKER ARMS Locate the rocker arms (Ref. No. 7 of Detail A in Diagram D). Note that the center bushing has a grease zerk in it.
  • Page 8: Axle Adjustment

    Place the spring and axle U-bolt plate onto the ends of the two U- TRAILER ADJUSTMENTS bolts just placed. Secure in place with 1/2” lock nuts. Thread onto The adjustment of the trailer to your boat is very important not only the U-bolts but do not tighten securely until the complete unit is in for the trailer, but also the boat.
  • Page 9 securing it to the winch post weldment. Slide the winch and bow stop roller assembly up or down until the bow roller is just above the bow eye. Hook the winch strap into the bow eye so it passes under the bow roller.
  • Page 10 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003555 Page 10...
